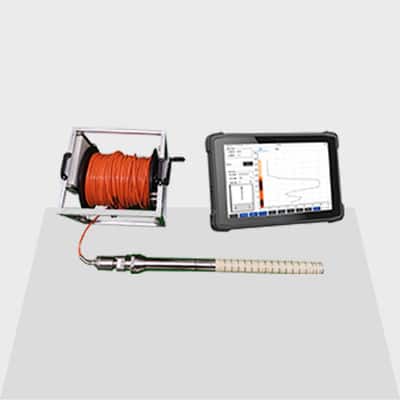

1.2m Probe Pile Testing Equipment 10kg 600mm Sediment Thickness Tester
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-8120 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Sediment Thickness Tester | Standard: | DGJ32/J 21 |
|---|---|---|---|
| Thickness Test Range: | One Time 600mm (can Be Customized) | Test Depth: | 100m (can Be Customized) |
| Communication Method: | WIFI | Probe Length: | 1.2m |
| High Light: |
1.2m Probe Pile Testing Equipment, 10kg Pile Testing Equipment, 600mm Sediment Thickness Tester |
||
New Type Sediment Thickness Tester For Test The Sediment Thickness
Application: Used to test the sediment thickness of the bored pile hole
Standard:
DGJ32/J 21-2009 Inspection and testing specification for construction engineering quality
DB 29-112-2004 Technical specification for the testing of the drilling hole of Cast-in-place pile and the Groove of Diaphragm wall
T/CECS 596-2019 Technical specification for testing of borehole of cast-in-place piles
T/CECS 597-2019 Technical specification for testing of diaphragm wall
JTG/T 3512 Technical Specification for foundation piles testing of highway engineering
Parameters:
| Item | Name | Details |
| 1 | Thickness test range | One time 600mm (can be customized) |
| 2 | Precision | +/- 1.0mm |
| 3 | Test depth | 100m (can be customized) |
| 4 | Communication method | WIFI |
| 5 | Probe length | 1.2m |
| 6 | Probe diameter | 40mm |
| 7 | Lifting method | Handle or by 220V electric winch |
| 8 | Weight | 10kg |
| 9 | Power supply | DC 12V Li battery |
| 10 | Depth resolution | 0.1% FS |
Features:
1. The special Multi-loop combined resistivity method can greatly reduce the environment impact during the test;
2. Multi-loop combined method can test the thickness up to 600mm one time with high efficiency.
3. Full wireless low-power transmission mechanism, the operation is simple and convenient;
4. Multi-parameter signal acquisition, accurately determine the bottom position with high precision
5. Built-in large-capacity high-performance Li battery, effective working time can reach 15 days.
