100mm IP67 Fiber Bragg Grating Pressure Sensor Anti Water FBG Displacement Sensor
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | STRAIN |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Product Name: | FBG Displacement Sensor | Range: | 0-100mm |
|---|---|---|---|
| Resolution: | 0.1%FS | Accuracy: | <1% FS |
| Feature: | Internal Temperature Compensation | Central Wavelength: | 1510nm -1590nm |
| High Light: |
IP67 Fiber Bragg Grating, Fiber Bragg Grating Pressure Sensor, FBG Displacement Sensor |
||

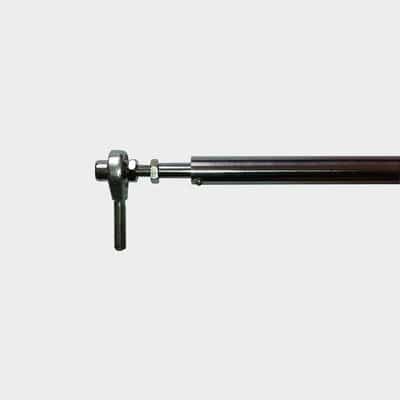

FBG Displacement Sensor 100mm Anti Water IP 67 Stainless Steel
FBG Displacement Sensor Description:
It can be used for cracks or joints in structures such as petrochemical, water conservancy and hydropower engineering, industrial and civil buildings, Long-term monitoring of opening and closing.

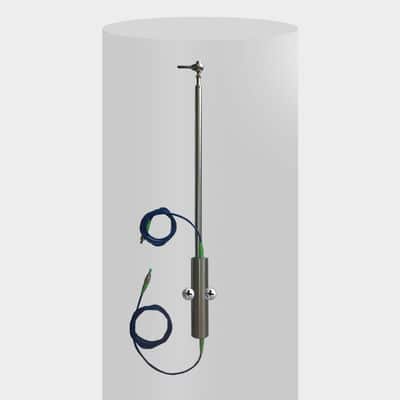

The sensor adopts the probe rod installation method, which can accurately and quickly measure bridges, tunnels, dams, underground works, and borders. Displacement and deformation of the slope. While reducing the temperature sensitivity coefficient of the sensor through structural design, a temperature sensor is installed inside, to compensate for the influence of temperature on the measurement.
FBG Displacement Sensor Application:
- measure bridges, tunnels, dams, underground works, and borders. Displacement and deformation of the slope
FBG Pressure Sensor Features:
High stability and reliability Length customized grating High SLSR
FBG Pressure Sensor Technical specification:
| Range | 12.5mm,25mm,50mm,100mm,200mm | Temp Range | –40℃～85℃
|
| Resolution | ＜0.1％F.S.
|
Sensor lead wire | (1m±0.1m )armored cable |
| Accuracy | ＜0.3％F.S.
|
Connection Mode | Welding or FC/APC Joint
|
| Central wavelength | 1525～1565nm
|
Size | Φ25×200mm
|
| Grating reflectivity | ≥85%
|
Waterproof level | IP65
|
| Optional accessories | Install accessory fixture | Installing | Mechanical fixation |
