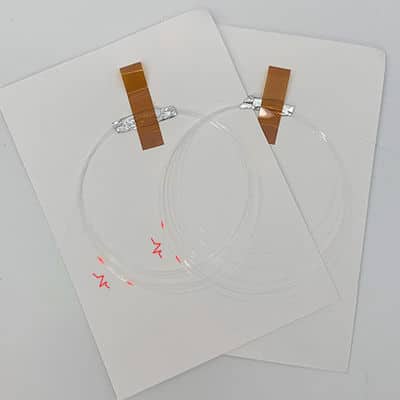

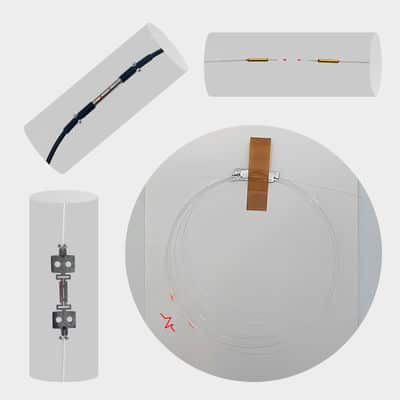

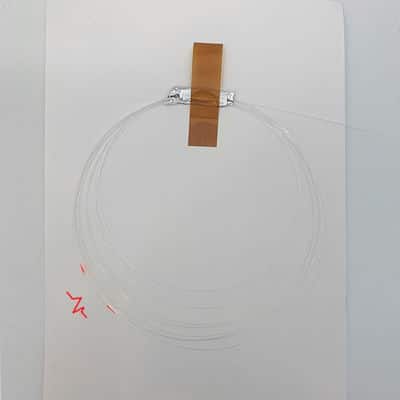

1460nm – 1610nm FBG Fiber Optic Sensor SMF-28E 5%-99% Reflectivity
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | FBG |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Product Name: | Fiber Bragg Grating | Fiber Type: | SMF-28E |
|---|---|---|---|
| FBG Length: | 1-15mm | Central Wavelength: | 1460nm -1610nm |
| Bandwidth At 3dB: | 0.1- 1nm | Extension Force: | 15N |
| High Light: |
1610nm FBG Fiber Optic Sensor, FBG Fiber Optic Sensor, Fiber Bragg Sensor |
||
Bared Fiber Bragg Grating Telecommunication Wavelength division multiplexing fiber sensor
Description:
We can offer standard Fiber Bragg Grating at the Central Wavelength from 1460nm to 1610nm. It can be used for fiber sensor and telecommunication applications. Any wavelength fiber gratings can be fabricated within a fast delivery time.
For common temperature FBG, we normally use Corning 28e optical fiber. If needs bearing higher temperature, there is ployimide coating optical fiber max 375 Celsius degree from Fibercore or relative other optical fiber.
If need more than 400 Celsius degree, it should use femoto fiber bragg grating which with special packages technology can upto 1000 celsius degree.
We also can supply with thin optical fiber 80um , 50um and microbend resistance coating optical fiber.
Application:
- Telecommunication, Lasers and sensors, filter
- Wavelength Division Multiplexing Transmission System
- High tensile resistance and anti-electromagnetic interference
Feature:
High stability and reliability Length customized grating High Reflectivity
Technical specification:
| Parameter | Unit | Values |
| Center Wave length | nm | 1460nm- 1610nm |
| Wavelength Tolerance | nm | +/-0.2 |
| FBG length | mm | 1-15 |
| Reflectivity | 5%-99% | |
| Bandwidth at 3dB | nm | 0.1- 1 |
| SLSR | dB | ≥15 |
| Recoating | — | Aorylate or Polyimide |
| Fiber type | — | SMF-28e or Polyimide Fiber |
| Fiber termination | — | Bare Fiber, FC/UPC, or FC/APC |
| Pigtail length | m | 2 (typical ) |
| Operating Temp. | ℃ | SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80 |
| Storage Temp. | ℃ | SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80 |
| Proof test | kpsi | ≥100 |
