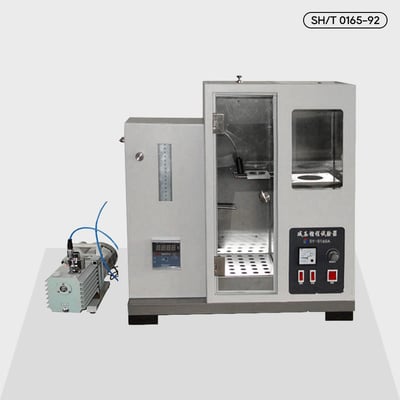

220v Vacuum Distillation Apparatus Single Chip Microcomputer Technology Auto
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | SH/T 0165-92 |
| Model Number: | SY-0165A |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Power Supply: | AC（220±10%）, 50Hz | Temperature Control Precision: | Set Temp.±1℃ |
|---|---|---|---|
| Capacity Of Buffer Vessel: | 1000ml | Max. Residual Pressure: | 2mmHg |
| Digital Pressure Gauge: | (0~200）mmHg | Ambient Temp: | (15～35)℃ |
| High Light: |
vacuum distillation apparatus, auto vacuum distillation apparatus, single chip microcomputer vacuum distillation apparatus |
||
Summary
This instrument is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process. It is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.
I. Main technical featuresThis instrument adopts single chip microcomputer technology, can automatically control the vacuum pressure.
II. Main technical specifications
| Power supply | AC( 220±10% )V, 50Hz |
| Heating power | Heater for distillation flask:1300W,Heater for receiver:350W |
| Heating furnace of distillation flask | (0～1300)W, continuously adjustable |
| Temperature sensor of air bath | Pt100,RTD |
| Temperature control mode | Digital temperature controller |
| Temperature control precision | Set temp.±1℃ |
| Capacity of buffer vessel | 1000ml |
Pictures
