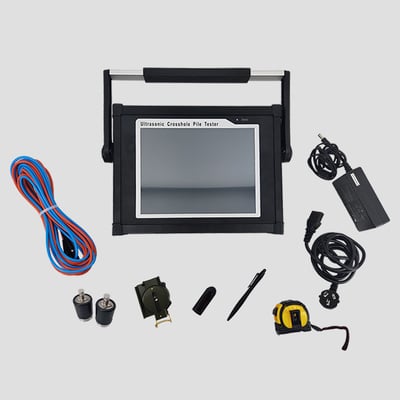

3 Channels Pile Testing Equipment Jgj 106 Standard Crosshole Sonic Logging
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-6330 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Crosshole Pile Tester | Test Sections: | 3sections |
|---|---|---|---|
| Channels: | 3channels | Standard: | JGJ 106 |
| Probe: | 100m Depth (150m Optional) | Judgement Method: | Iteration Method |
| High Light: |
3 channels pile testing equipment, jgj 106 standard pile testing equipment, cross hole sonic logging equipment |
||
3Channels JGJ 106 Standard Crosshole Sonic Logging Pile Testing Equipment
Standard:
CECS 21: 2000 Technical specification for inspection of concrete defects by ultrasonic method
ASTM D6760 Standard Test Method for Integrity Testing of Concrete Deep Foundations by Ultrasonic Crosshole Testing
JGJ 106-2014 Technical code for testing of building foundation piles
TB 10218-2019 Technical Specification for Testing of Railway Piles
JTG/T F81-01-2004 Technical Specification of Dynamic Pile Tests for Highway Engineering
Advantages:
Universal Nozzle Guide Pulley
New design, with all direction, can avoid cable wear and protect the transducer.

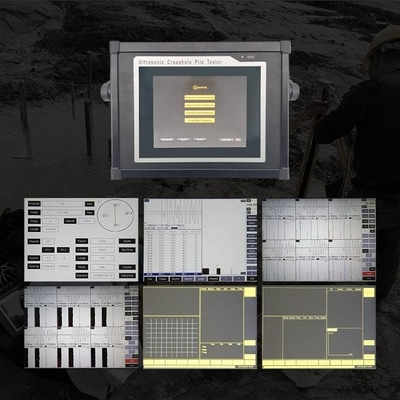

High-performance Main Controller
Industrial ARM processor, dominant frequency up to 1 GHz. ARM Cortex A8, customized Windows CE 6.0 real-time operating system, 15s starting-up. It can be directly turned off after saving the data. The battery power can run above 8 hours.
One Transducer as Transmitter and receiver
One transducer with two functions, transmitter and receiver, with pre-amplification technology, small size(length 20cm and diameter 25mm), concrete test space can be up to 8m.
High strength cable coil
With high strength steel frame, strong and not easy deformed; with the collector ring device, easy for cable winding up and down, with six colors for selection.
| Item | Name | Details |
| 1 | Channels | 3channels |
| 2 | Test sections | 3sections |
| 3 | First wave judgement method | Iteration method/ Threshold method |
| 4 | Probe | Standard 100m depth (150m optional) |
| 5 | Max space between two probes | 8m |
| 6 | Sampling Mode | Synchronous Sampling |
| 7 | Master Mode | ARM A8 1GHz / ARM A9 1GHz |
| 8 | Operating System | WinCE operating system / Linus system |
| 9 | Display Mode | 10.4inch industrial LCD screen / 12.1inch industrial LCD screen |
| 10 | Operating Mode | Touch screen |
| 11 | Storage Mode | 16GB Electrical Hard Disk |
| 12 | Depth Measurement Mode | Two-way Counting and Real-Time Repetition Measurement |
| 13 | Intervals of Sampling | 0.03μs ~1024μs |
| 14 | Phonatory Time Measurement Accuracy | 0.03μs |
| 15 | Phonatory Time Measurement Range | 2×106μs |
| 16 | Record Length | 0.5~4k |
| 17 | Transmit Voltage(V) | 50/250/500/1000 Adjustable |
| 18 | Dynamic Range of Gain | 107dB |
| 19 | Control Accuracy of Gain | 0.4dB |
| 20 | Transmit Pulse Width | 20μs |
| 21 | Broadband | 2~500kHz |
| 22 | Receiver Sensitivity | ≤10μV |
| 23 | Inter-channel noise | ≤-60dB |
| 24 | Data-Transmission Mode | USB2.0 High-speed Transmission, U disk, WIFI |
| 25 | Power-Supply Mode | Built-in Lithium Battery(Working Hours≥8 Hours ) |
| 26 | Operating Temperature | -10℃~+45℃ |
| 27 | Main Machine Dimensions | 325×243×56mm |
| 28 | Main Machine Weight | 3.5kg |
| 29 | Others | Intelligent Search, Real-time Control of Sampling in all Channels, Automatic Interpretation, |

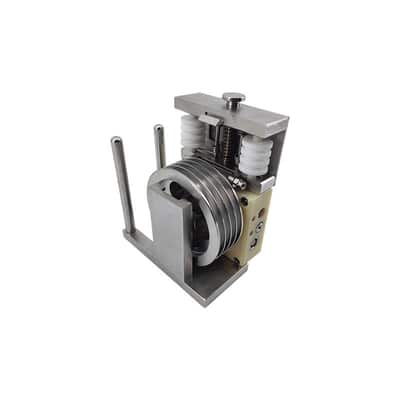

| 30 | Depth counter | 4Slots / 5slots |
| 31 | Direction | Two-way Counting |
| 32 | Resolution Ratio | 0.3cm |
| 33 | Space between Measuring Point | 5cm~100cm, Optional |
| 34 | Max Hoisting Speed | Six sections, up to 60 Meters per minute |
