3500m Borehole Inspection Camera 50Mpa 78mm Oil Well Inspection Camera
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SAM-78 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | 78mm Oil Well Inspection Camera | Camera Size: | φ78mm |
|---|---|---|---|
| Material: | 316 Stainless Steel | Depth: | 3500m |
| Anti-Pressure: | 50Mpa | Temperature: | 95℃ (4 Hours ) |
| High Light: |
50 Mpa Borehole Inspection Camera, 3500m Borehole Inspection Camera, 78mm Oil Well Inspection Camera |
||
78mm Oil Well Inspection Camera 4 Core Armed Steel Cable Temperature 95 Degree 3500m Depth
78mm Oil Well Inspection Camera Introduction:
78mm Single Diameter camera is expecially designed according to oil well inspection. As it can bear 95 degree higher temprature, it also wildly is used in Geothermal well inspection.

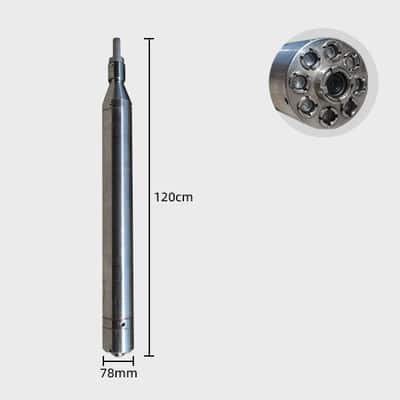

The main camera tube is made of stainless steel, with Front Toughened Glass to increase its clearance; With Side Quartz Glass avoiding Destroyed ; with Front 8 Pieces LED light. The 78mm camera works with the black color portable PC controller 15.5 Inch BNC/VGA/HDM/USB Engineering Display. The system adopts 4 core armed steel cable to ensure the safety during working, with Cable Tension 12KN.
It can not exchange with another type SAMYON camera; only work with steel material electric winch and steel cable. SAM-78 standard cable depth is 3500meter. It also can order according to clients request from 1000meter depth to 4000meter depth.
78mm Oil Well Inspection Camera Introduction:
SAM-78 is suitable Dry hole and Wet hole for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole and the position of fluid sand, etc. Expecially High Temperature Geothermal well and high depth oil well.
it can also observe the bedrock fissures and development state as well as the size and position of karst caves and other geological conditions in bedrock area.
Borehole Camera Parameters:
| Main Controller |
|
| Steel Material Electric Winch
|
|
| 78mm Camera |
|

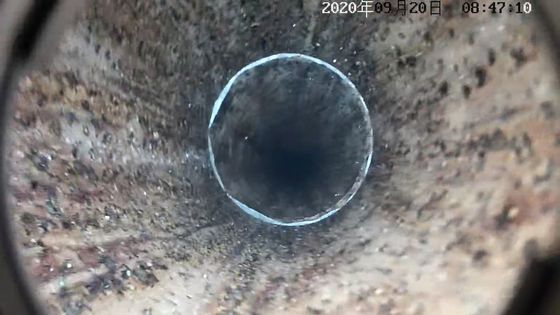

1000m Borehole Camera Picture:
