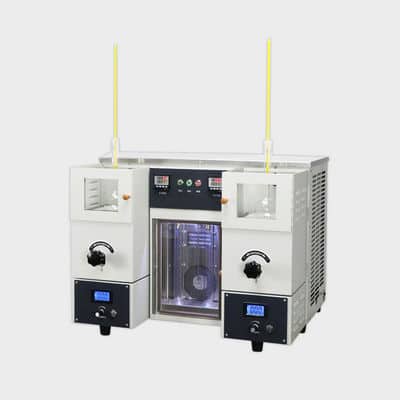

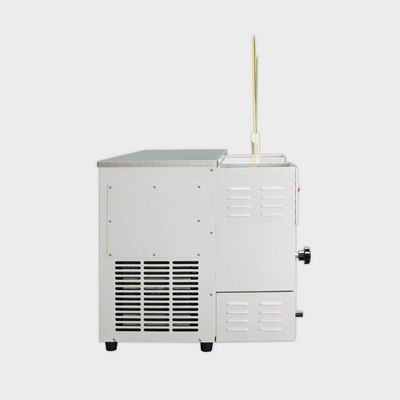

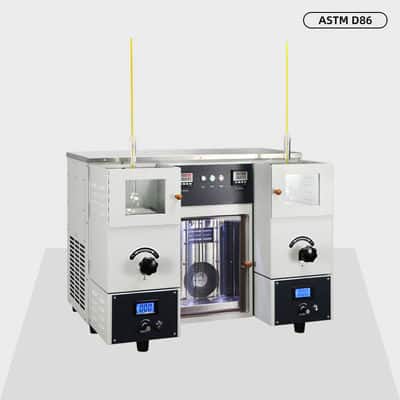

3500W 100ml Petroleum Test Equipment SY-6536B Distillation Tester
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-6536B |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Distillation Tester | Standard: | ASTM D86 |
|---|---|---|---|
| Cool Mode: | Compressor Refrigeration | Heating Power: | 1300w*2 |
| Receiving Cylinder: | 100ml | Distillation Flask: | 125ml |
| High Light: |
3500W Petroleum Test Equipment, 100ml Petroleum Test Equipment, SY-6536B Distillation Tester |
||
SY-6536B Petroleum Product Distillation Tester For Petroleum Products At Atmospheric Pressure
SY-6536B Petroleum Product Distillation Tester
Application:
It is used to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.
Standard:
ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure.
GB/T6536 Test Method for Distillation Characteristics of Petroleum Products
Parameters:
| Item | Name | Details |
| 1 | Cool mode | compressor refrigeration |
| 2 | Furnace heating power | 1300W*2 |
| 3 | Receiving cylinder | 100ml, division value is 1ml |
| 4 | Distillation flask | 125ml,meet the requirements of GB/T 6536 and ASTM D86 |
| 5 | Maximum power consumption | 3500W |
| 6 | Thermometer | (-2~300)℃ and (-2~400)℃, Division value 1℃ |
| 7 | Flask support board | SiC, bore diameter is: φ32mm, φ38mm, φ50mm. |
| 8 | Condenser temperature controlling | 0℃ to 60℃, +/-0.5℃ |
| 9 | Ambient temperature | (15~28)℃ |
| 10 | Relative humidity | =<85% |
| 11 | Power supply | AC 220+/-10% V, 50Hz |
| 12 | Dimension | 700mmx520mmx580mm |
Features:
1. The height of the flask is adjusted by the lifting device, and the high temperature resistant and heat insulation glass observation window is equipped to observe the whole test process.
2. It adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test.
3. The instrument adopts advanced PID self-tuning temperature control system, with high temperature control precision (up to +/- 5℃), and is stable.
4. Condensing tube water bath has the function of temperature control, which can be set and adjusted in the range of 0℃ ~ 60℃. The temperature in the bath is uniform and meets the requirements of the test.
5. The instrument is equipped with a measuring cylinder receiving chamber, it can be used for independent test or two samples of the same specification at the same time, which greatly improves the work efficiency.
