400nm Sy8260 Portable Uv Spectrophotometer With Speed Measurement

Sy8260 Spectrophotometer With Speed Measurement And The Convenience Of Operation

Introduction

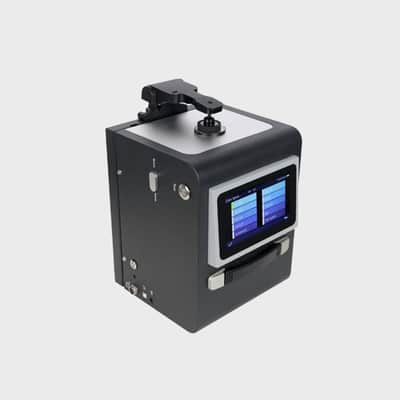

The portable desktop spectrophotometer SY8260 is a spectrophotometer adopts built-in silicon photodiode array (40 groups in double rows) sensors and imported white board, and gives consideration to the speed of measurement and the convenience of operation.

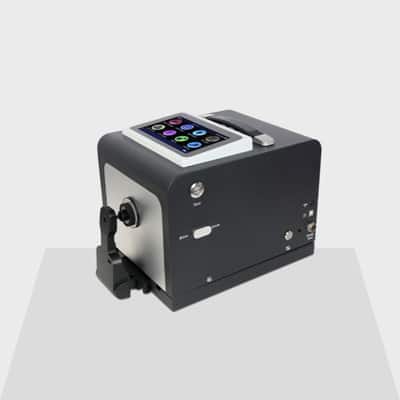

The rotating and pressing structure makes the test more convenient. SY8260 portable desktop spectrophotometer color measurement instrument features with repeatability Δ E * ab easily control within 0.02, and inner errors Δ E * ab control within 0.15. This accuracy measurement makes it good used in the lab color accurate analysis and transfer.

Application

SY8260 portable desktop spectrophotometer color measurement instrument equipped with Φ4mm and Φ8mm free switch diameter measurement, good for horizontal or vertical measurement, wider adaptability, suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; and it can be used for fluorescence sample measurement.

Advantages

1.Adopt international common use d/8 SCI/SCE Synthesis technology

SY8260 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement, and the test time is about 3.2 seconds.

2.Silicon photodiode array sensor (40 groups with double rows)

Double 40 array sensor with larger area, high light saturation, high sensitivity of low light and wide spectral response range ensure the measurement speed, accuracy, stability and consistency of the instrument.

3.A variety of color space, a variety of observation light sources

SY8260 portable desktop spectrophotometer color measurement instrument provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s – RGB, HunterLab, βxy, DIN Lab99, Munsell (C / 2) color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83 / U30) light sources, which can meet the special measurement requirements under different measurement conditions.

4.Adopt combination full spectrum LED light source and UV light source Each

Full band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results, and professional UV light source ensures more reliable UV testing.

5.Camera locating can clearly observe the measured area

SY8260 spectrophotometer has a built-in camera for positioning, which can accurately determine whether the measured part of the object is the center of the target through real-time viewing by the camera, thus improving the measurement efficiency and accuracy.

6.Calirbation Certificate

SY8260 spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute o ensure the authority of the instrument test data.

7.Industrial-grade HD touch screen, easy to use user interface

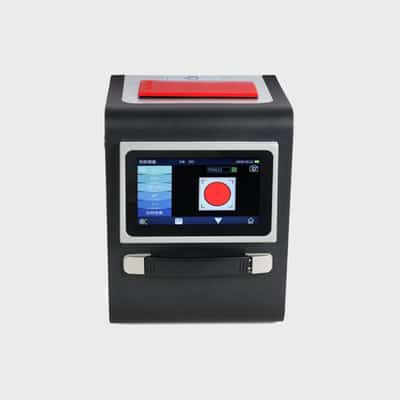

Using 7-inch industrial grade hd touch screen, smooth operation, the user interface is easy to use and it makes the operation to become comfortable and convenient.

8.Color management software

SQCX quality management software SY8260 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user’s color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer’s color management.

9.Optional Accessory

Micro printer, foot switch, rotating bracket can be freely selected according to the needs.

Parameters
