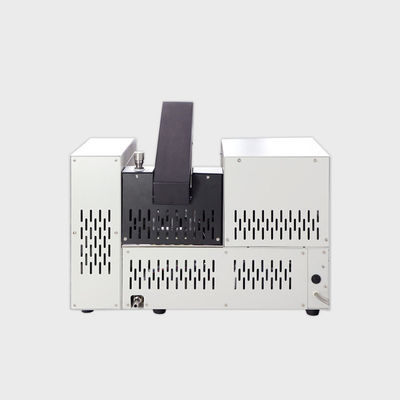

600W Petroleum Test Equipment SY-261D Automatic Pensky Martens Flash Point Tester
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-261D |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Closed Cup Flash Point | Standard: | ASTM D93 |
|---|---|---|---|
| Flash Point: | Ambient To 400℃ | Igniting Device: | Electric Ignition |
| Igniter Diameter: | 0.7mm~0.8mm | Method: | Pensky-Martens Closed Cup Method |
| High Light: |
600W Petroleum Test Equipment, SY-261D Petroleum Test Equipment, Pensky Martens Flash Point Tester |
||
SY-261D Automatic Pensky-Martens Closed-Cup Flash Point Tester
Application:
It is used to make determination of the closed cup flash point of the petroleum products by Pensky-Martens Closed Cup method.
Standard:
ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester
GB/T 261-2008 Determination of Flash Point – Pensky-Martens Closed Cup Method
Parameters:
| Item | Name | Details |
| 1 | Igniting device | Electric ignition. igniter diameter:0.7mm~0.8mm |
| 2 | Flash point determination | Ambient to 400℃ |
| 3 | Accuracy | 0.1℃ |
| 4 | Data transmission mode | Bluetooth |
| 5 | Heating rate | Procedure A: (5~6)℃/min,
Procedure B:(1~1.6)℃/min, Procedure C: (3.0+/-0.5)℃/min |
| 6 | Stirring rate | Procedure A: (90~120)RPM,
Procedure B: (250+/-10)RPM Automatic control and manually adjustable. |
| 7 | Ambient temperature | 15~35℃ |
| 8 | Maximum power consumption | 600W |
| 9 | Relative humidity | =<85% |
| 10 | Power supply | AC 220+/-10% V, 50Hz |
| 11 | Dimension | 510x320x330mm |
Features:
1. Automatic measurement of atmospheric pressure, automatic correction of flash point value.
2. Temperature rise, cover opening, ignition, detection and printing data are completed automatically, and the test arm rises and falls automatically.
3. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.
4. Using 32-bit ARM processor and high-precision AD chip, the test data and parameters are recorded in real time and displayed by curve.
5. It adopts an 8-inch IPS high-definition capacitive screen
6. Equipped with Bluetooth interface. The user can query test data anytime.
7. Electronic ignition, gas flame, automatic air cooling at the end of the test.
