6mm-50mm NDT Testing Equipment Rebar Location System for rebar diameter / distribution
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-R51 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Rebar Locator | Applicable Diameter: | 6mm~50mm |
|---|---|---|---|
| Diameter Test Range: | 6mm~50mm | Coating Test Range: | Low : 6mm~90mm; High : 7mm~190mm |
| Power Supply: | 6 Dry Cells, Work More Than 30 Times | ||
| High Light: |
50mm NDT Testing Equipment, Rebar Location NDT Testing Equipment, 6mm Rebar Location System |
||
NDT Test Equipment Rebar Location System To Test Rebar Diameter, Distribution, Coating Thickness In Concrete.
NDT Test Equipment Rebar Location System Use Lemo Connector Clip
SYR51+ rebar Location system is used to test rebar diameter, distribution, coating thickness in concrete.
NDT Test Equipment Rebar Location System Specification
JGJ/T152-2008
NDT Test Equipment Rebar Location System Performance
Longer service life of the Connector Clip: The instrument has long service life because of using Lemo Connector Clip which comes from Swiss and uses for aircraft industry.
Good quality of signal cable: The signal cable has long service life because of its flexible and substance.
High precision and stability: The instrument can locate the steel-bar accurately and quickly.
Longer service life of the sensor: Improve the service life by paste abrasion resistance allowance bottom of the sensor
Single sensor: No-change sensor in test, switching between high and low test range can assure the precision of test data and the test depth.
Display test information real-time: Display the test data directly to avoid man-made errors.
Grid and section scan mode: Instrument can display steel bar distribution and scan steel bar without concrete boundary limited.
Three-wheel steel-bar scan system: The system can assure scan path along line and the precision of test data.
Powerful Windows data process and analysis software: Software can display analysis result by diagram. Test data can be export to word or Excel easily.

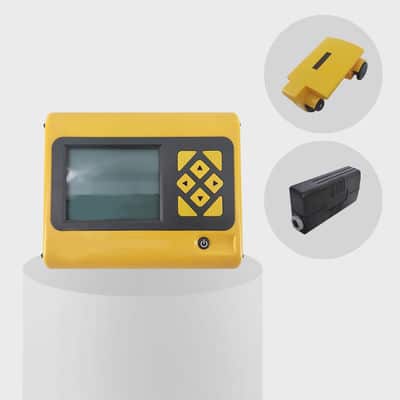

NDT Test Equipment Rebar Location System Picture:
Technical Data
| Applicable rebar diameter | 6mm~50mm | ||
| Tested range of concrete coating thickness | Low range: 6mm~90mm; High range: 7mm~190mm | ||
| Permissible error | Low range | High range | |
| ±1 | 6~59 | 7~79 | |
| ±2 | 60~69 | 80~119 | |
| ±4 | 70~90 | 120~190 | |
| Tested range of rebar diameter | 6mm~50mm | ||
| Permissible error of rebar diameter test | ±1 grade | ||
| Applicable environmental | Temperature: -10ºC~+40ºC; Dampness: <90%RH EMI: no Strong electromagnetic field |
||
| Power supply | 6 dry cells, work more than 30 times | ||
