73mm Dual Focus Borehole Inspection Camera 20MPA Side Front LED Light Adjustable
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO CE |
| Model Number: | SAM-73F |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | 73mm Dual Focus Inspection Borehole Camera | Feature: | Fucus (Front & Side Camera) |
|---|---|---|---|
| Front Camera: | Focus-able LED Light Adjustable | Side Camera: | Focus-able LED Light Adjustable |
| Controller: | Black Box 12 Inch Display | Pressure: | 20 MPA |
| High Light: |
20MPA Borehole Inspection Camera, 73mm Borehole Inspection Camera |
||

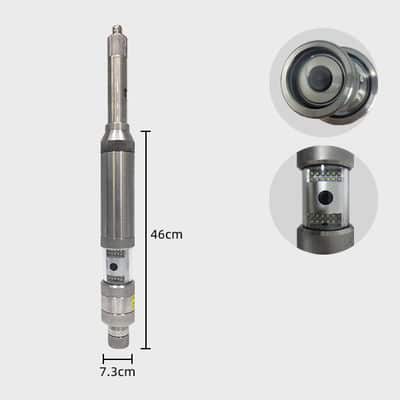

73mm Dual Focus Inspection Borehole Camera Side Front LED Light Adjustable
Borehole Camera Specification:
73mm Dual Focus Inspection Borehle Camra is the same tube with SAMYON common type SAM73 DUAL CAMERA. But SAM 73F two cameras are with Foucs funtion and LED adjustable function that is suitable for more higher quality borehole inspection working. Foucs function also can easily take clear video or photo when the distance is too far or too near to borehole wall. Front Led adjustable function can solve when the water quality is not good or the well state more darker.
SAM 73F can be easliy change video interface from front camra to side camera. It also can bear pressure upto maximum 20Mpa (upto depth 2000meter in water well. ). With main body tube 304 stailess steel material, it can be suitable for any slight corroision inspection working.
When works with one winch and cable system, it can realize exchange with 73 DUAL, 73mm/ 40 mm Single Camera.
73mm Dual Borehole Camera Application:
SAM-73F is suitable Dry hole and Wet hole for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole and the position of fluid sand, etc.
it can also observe the bedrock fissures and development state as well as the size and position of karst caves and other geological conditions in bedrock area.
Borehole Camera Parameters:
| Borehole Diameter | 65mm Single | 65mm Dual | 73mm Dual | 73mm DualF | 73mm Single | 40mm Single |
| Rotate Angle | 360⁰ | Side Camera
360 ⁰ |
Side Camera
360 ⁰ |
Side Camera
360 ⁰ |
×××××× | ×××××× |
| Camera Number | One | Two | Two | Two | One | One |
| Material | 316L Stainless Steel | 316L Stainless Steel | 304
Stainless Steel |
304
Stainless Steel |
Steel | Steel |
| Bear Pressure | Max.20Mpa | |||||
| Centralizer | Equip With | |||||
| Depth Meter | Digital Depth Meter | |||||
| Controller | Yellow Color | Yellow Color | Black Color | Black Color | Black Color | Black Color |
| Display | 12inch | |||||
| Focus Function | Yes | NO | NO | Yes | NO | NO |
| Winch Type | AE /AEW/ GrayE/GrayEW | BlueH/BlueE/ AE /AEW/ GrayE/GrayEW | ||||
