AE30 30L High Shear Disperser Emulsifier Machine

AE30 is designed for lab sample handling by emulsifying, homogenizing and dispersing, at small lab scale from 150ml to 30,000ml(H2O), suitable for pharmacy, food, cosmetics, biology, pigment, ink, pesticides etc.
Compared with previous models, AE30 has stronger power and higher torque, more suitable for high viscosity material. The compact structure allows small sample as less as 150ml.

1. With high speed motor, AE30 is quite suitable for liquid-liquid mixing/emulsion and solid-liquid emulsion / dispersing /suspension/crushing, especially for small volume and mushy samples;

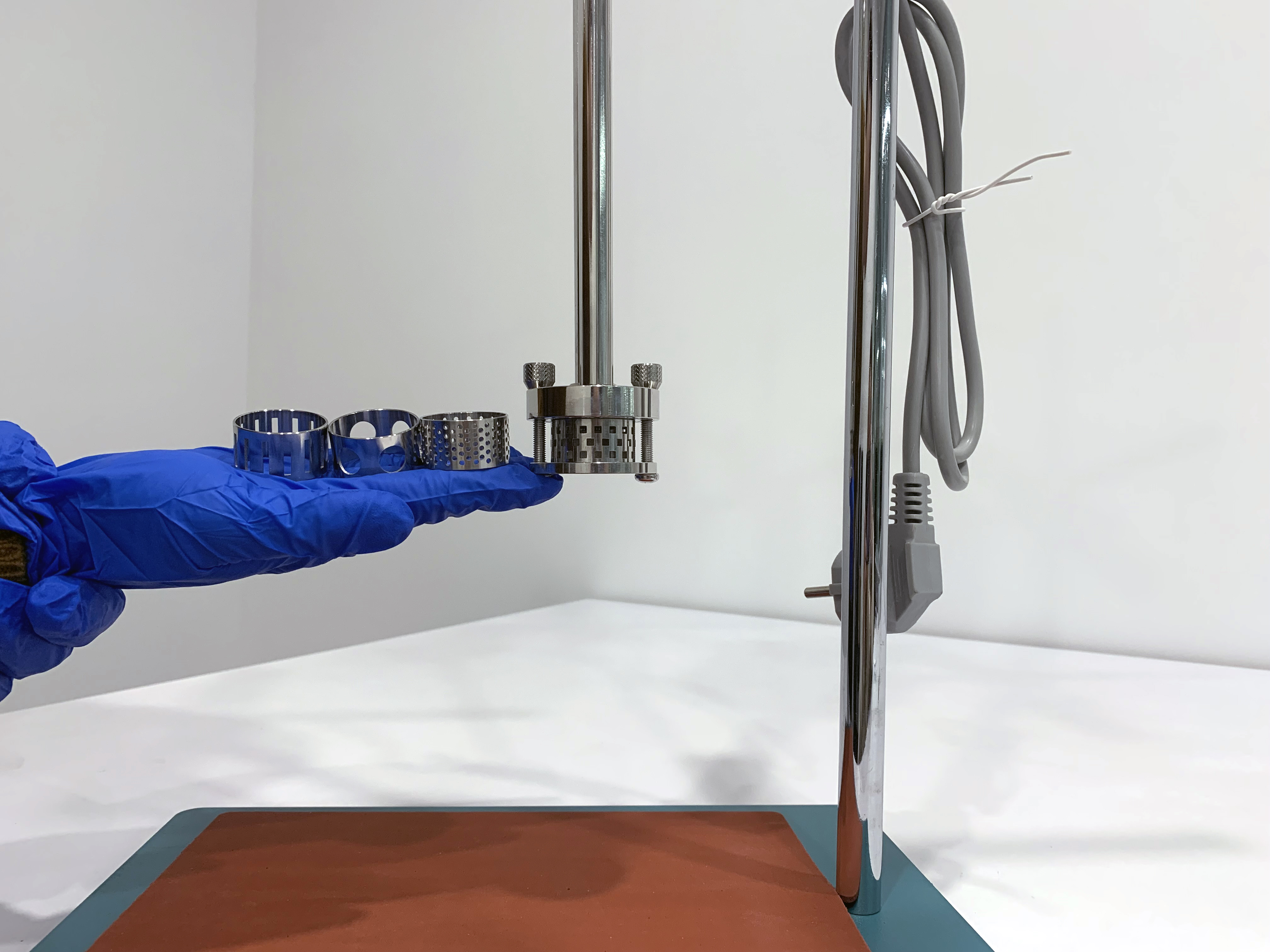

2. Whole working head is made of high quality SS316 at different replaceable hole sizes, ensure wide applications;
3. The integrated structure of driving output and working head positioning makes the running state more stable; the experimental application area is wide;
4. Operating speed microprocessor control, with instant compensation for speed changes caused by load changes and power supply fluctuations, constant speed and reliable;
5. Built-in soft start and automatic overload protection to ensure the safety of continuous operation at full load for a long time of the experiment;
6. The speed is steplessly adjusted to meet the test to modify the running speed at any time. The digital display speed is
intuitive and the experimental data collection is convenient;
7. Run timing control to ensure that the experiment time is effectively controllable.
8. Easy to replace disassemble and install, easy to clean.

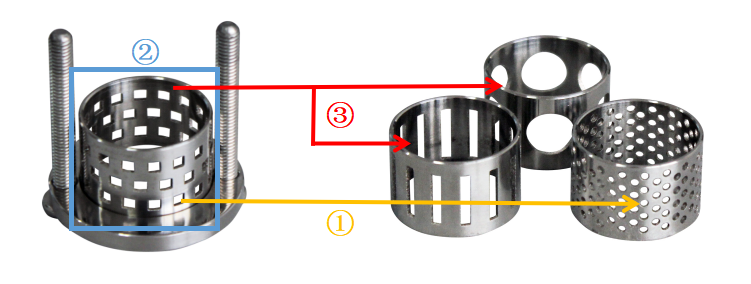

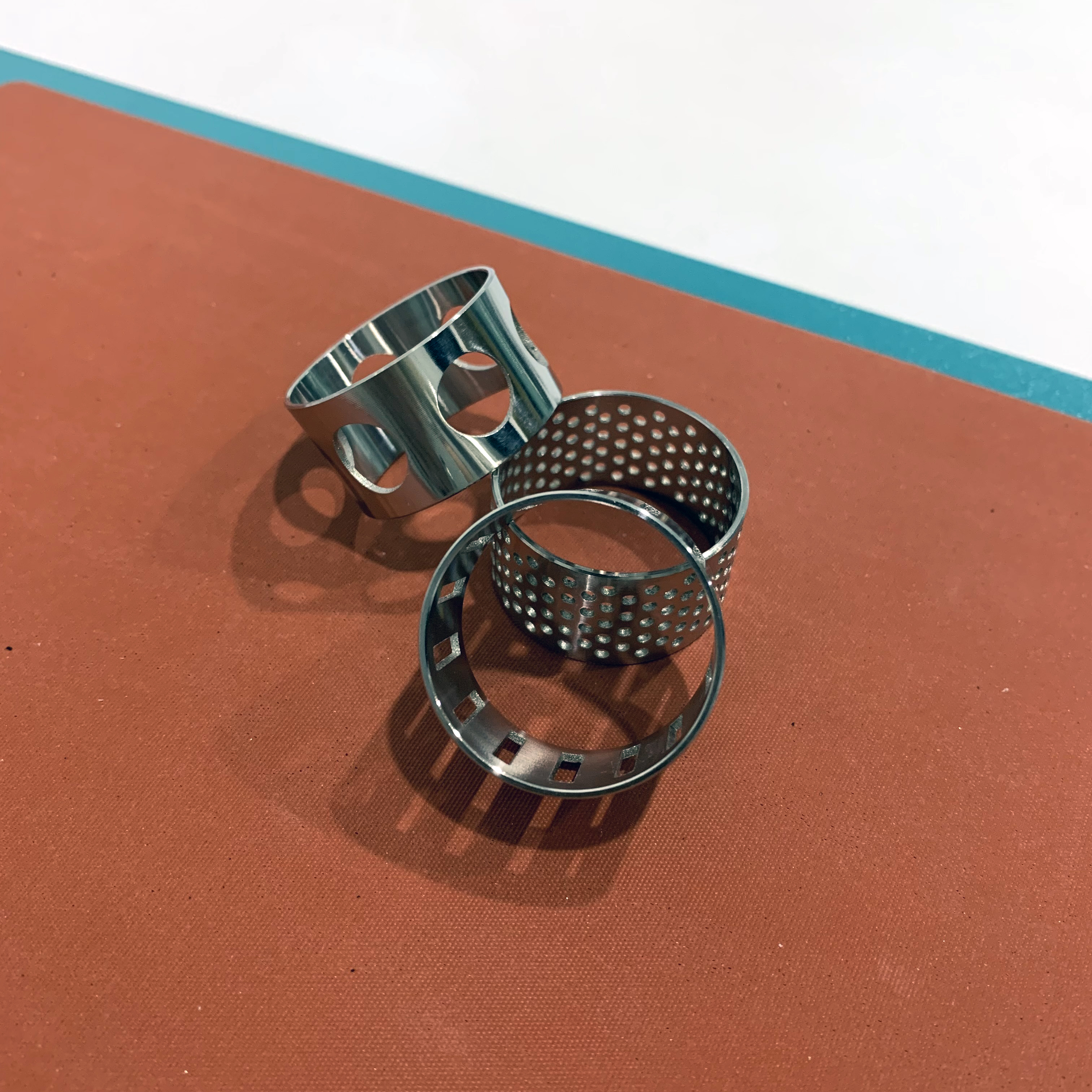

Multiple specifications of working head stator

How to choose a stator ring with correct hole shape?

① for low viscosity liquid, or small sized particle, recommend to use “small round” hole type ring.

② for medium viscosity and medium sized particle, recommend to use “square” hole type ring.

③ for high viscosity and big sized particle, recommend to use “long” or “big round” hole type rings.
