Anchorage Force Test Equipment 500-1000KN 12kg GB 50550-2010 Standard
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Anchorage Force Tester | Standard: | GB 50550-2010 |
|---|---|---|---|
| Max Pressure: | 63MPa And 2Mpa | Test Range: | 500-1000KN |
| Connector: | M6-M39 | Anchorage: | 6-40mm |
| High Light: |
12kg Force Test Equipment, 1000KN Force Test Equipment, Anchorage Force Tester |
||
SY-50T/60T/80T/100T Anchorage Force Tester For Testing Larger Size Anchor Shank, Rebar And Expansion Bolts
SY-50T/60T/80T/100T Anchorage Force Tester
Application:
It is suitable for testing the anchorage force of several of anchor shank, rebar and expansion bolts, also the pull force of glass block screen wall. With the bigger size oil cylinder, it can test the larger diameter rebar and bolt with stronger strength. The manual type has a little slow loading speed than the electric type.
Standard:
GB 50367-2013 Code for design of strengthening concrete structure
GB 50550-2010 Code for acceptance of construction quality of strengthening building structures
CECS 22:2005 Technical specification for ground anchors
JGJ 145-2013 Technical specification for post-installed fastenings in concrete structures
Parameters:
| Model | SY-50T | SY-60T | SY-80T | SY-100T | |
| Manual pump | Max Pressure | 63MPa(High), 2Mpa(low) | |||
| Max handle pressure | 500N | ||||
| Oil capacity | 3L | ||||
| Weight | 12kg | ||||
| Oil cylinder | Max force | 500KN | 600KN | 800KN | 1000KN |
| Piston stroke: | 120mm | 120mm | 120mm | 150mm | |
| Weight: | 26kg | 33kg | 42kg | 56kg | |
| Central hole: | 60mm | 65mm | 75mm | 85mm | |
| Digital pressure gauge | Test range | 0-500KN | 0-600KN | 0-800KN | 0-1000KN |
| Power supply | 9v battery | ||||
| Weight | 0.4kg | ||||

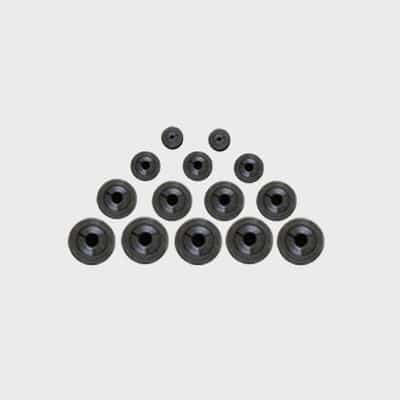

| Anchorage specifications
(Optional) |
φ6, φ8, φ10, φ12, φ14, φ16, φ18, φ20, φ22, φ25, φ28, φ32, φ36, φ38, φ40 | ||||

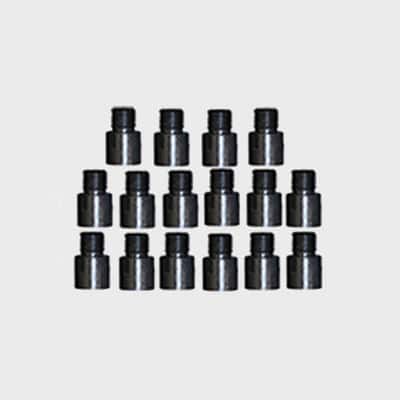

| Connector specifications
(Optional) |
M6, M8, M10, M12, M14, M16, M18, M20, M22, M24,M27, m32, m39 | ||||
Features:

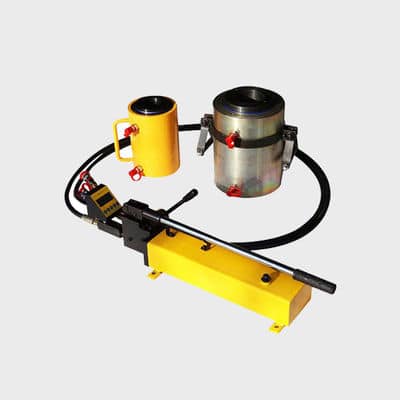

1. It consists of Manual pump, Hydraulic cylinder, Digital pressure gauge, and High-pressure rubber pipe.
2. The manual pump is of High-Low pressure dual-Radial Piston design more efficient.
3. The High precision cast steel increase its life.
4. The Hydraulic cylinder adopts hollow automatic reset design. Hydraulic cylinder has handhold which connects the high pressure pipe with the two connectors. Digital pressure gauge directly shows the tension value.
5. It is featured by compact designation, portable, smaller size, and light weight.
