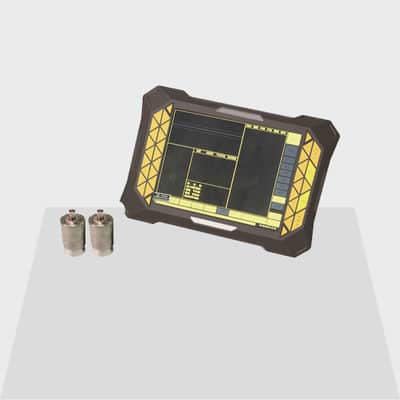

ASTM C597-16 Pile Testing Equipment One channel Nonmetal Ultrasonic Detector
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-6310 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Poured Level | Standard: | ASTM C597-16 |
|---|---|---|---|
| Judgement Method: | Iteration Method/ Threshold Method | Sampling Mode: | Synchronous Sampling |
| Transmit Voltage(V): | 50/250/500/1000 Adjustable | Channels: | One Channel |
| High Light: |
ASTM C597-16 Pile Testing Equipment, SY-6310 Pile Testing Equipment, Nonmetal Ultrasonic Detector |
||
Nonmetal ultrasonic detector for the detection of intensity
Application:
It is specially designed for the detection of intensity via ultrasonic-rebound combined method, detection of lacunas and cavity, detection of facture depth via ultrasonic method and so on.
Standard:
ASTM C597-16 Standard Test Method for Pulse Velocity Through Concrete
CECS 21:2000 Technology specification for inspection of concrete defects by ultrasonic method
CECS 02:2005 Technical specification for detecting strength of concrete by ultrasonic-rebound combine method
Parameters:
| Item | Name | Details |
| 1 | Channels | One channel |
| 2 | First wave judgement method | Iteration method / Threshold method |
| 3 | Sampling Mode | Synchronous Sampling |
| 4 | Transmit Voltage(V) | 50/250/500/1000 Adjustable |
| 5 | Master Mode | ARM A8 1GHz / ARM A9 1GHz |
| 6 | Operating Mode | Touch screen |
| 7 | Storage Mode | 16GB Electrical Hard Disk |
| 8 | Intervals of Sampling | 0.03μs ~1024μs |
| 9 | Phonatory Time Measurement Accuracy | 0.03μs |
| 10 | Phonatory Time Measurement Range | 2×106μs |
| 11 | Record Length | 0.5~4k |
| 12 | Dynamic Range of Gain | 107dB |
| 13 | Control Accuracy of Gain | 0.4dB |
| 14 | Transmit Pulse Width | 20μs |
| 15 | Broadband | 2~500kHz |
| 16 | Receiver Sensitivity | ≤10μV |
| 17 | Data-Transmission Mode | USB2.0 High-speed Transmission, U disk, WIFI |
| 18 | Power-Supply Mode | Built-in Lithium Battery(Working Hours≥8 Hours ) |
| 19 | Operating Temperature | -10℃~+45℃ |
Features:
1. High-performance industrial ARM processor has a dominant frequency up to 1 GHz. ARM Cortex A8.
2. The system works more steadily and the power can be directly turned off after saving the data when the measurement is accomplished. The battery life can last above 8 hours.
3. Original iteration interpretation can automatically make the accuracy of first wave interpretation up to 99% under complex conditions.
4. The built-in software is proficient and flexible, the interfaces can display in different color to suitable various working environments.
5. It is characterized with 16GB large storage space, with a high-speed USB 2.0 port.
6. The professional data processing software can rapidly analyze the data, and form a detection report, whose formats can be freely customized.
