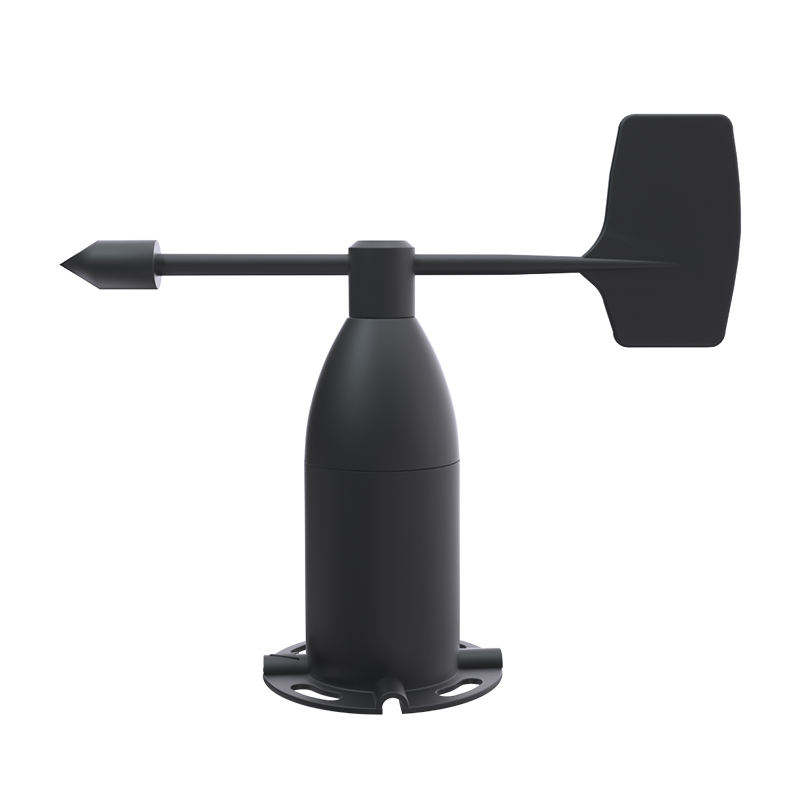

Atech Factory Price Aluminum Alloy Carbon Wind Sensor Wind Gauge for Weather Monitoring Wind Speed and Direction Sensor RS485
1,520.00৳
Wind direction sensor is used to measure the direction value of the wind,
which can be directly transmitted to the recording device for processing.
Various output signals, wired output includes: analog signal (voltage, current),
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
Atech Factory Price Aluminum Alloy Carbon Wind Sensor Wind Gauge for Weather Monitoring Wind Speed and Direction Sensor RS485
Wind direction sensor is used to measure the direction value of the wind,which can be directly transmitted to the recording device for processing. Various output signals, wired output includes: analog signal (voltage, current), digital signal RS485; wireless output includes: LoRa, Bluetooth, WIFI, GPRS, 4G, NB-lOT, CAT-1, wireless output except LoRa, Bluetooth, The other four forms can all be connected to the European speed smart cloud platform to realize the monitoring and management of smart terminal data.
Characteristics:
(1) The sensor has compact design volume and high measurement accuracy.
(2) Quick response and good interchangeability.
(3) Truly achieve low cost, low price, high performance.

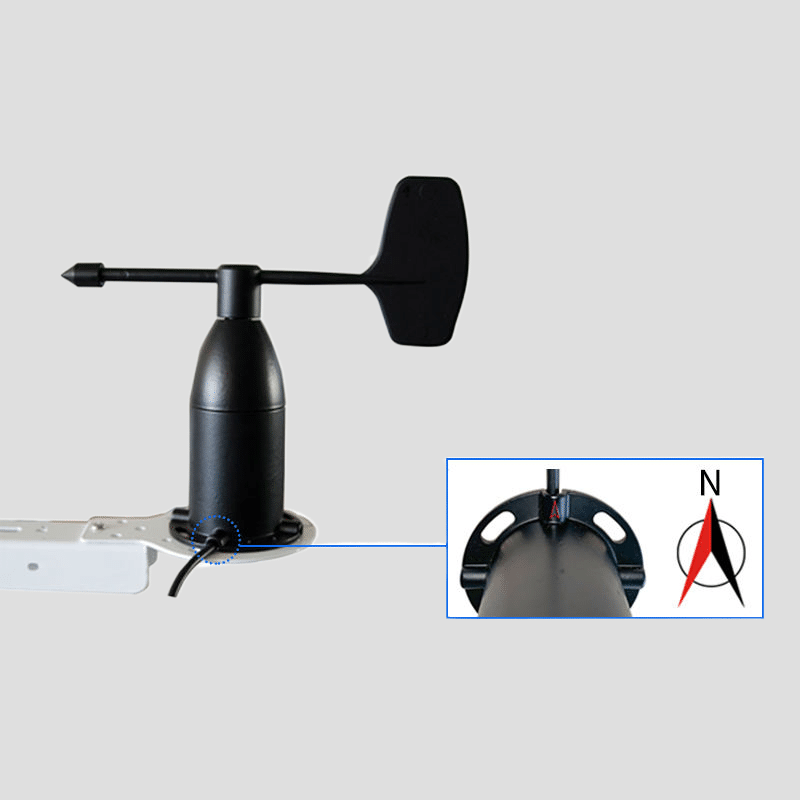

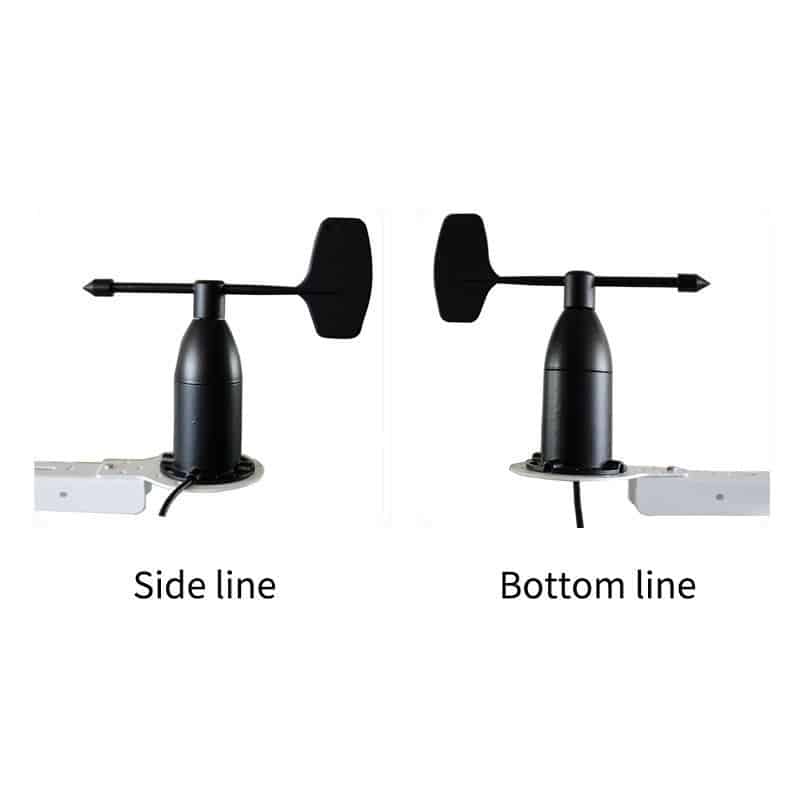

(4) Flange installation, can realize the bottom line, side line, simple and convenient.
(5) High data transmission efficiency, reliable performance, to ensure normal work.
(6) Wide range of power supply, good linearity of data information, long signal transmission distance.
(7) With two parameters of wind speed and wind scale, the data is reliable.
Product Features
Product Specification
Product Dimensions
|
Measuring range |
0~360° |
|
Accuracy |
±1° |
|
Resolution |
0.1° |
|
Starting wind speed |
≤0.5m/s |
|
Maximum turning radius |
100mm |
|
Output signal |
Voltage signal (Choose one of three: 0~2V, 0~5V, 0~10V) |
|
4~20mA (Current loop) |
|
|
RS485 (Standard Modbus-RTU protocol, device default address: 01) |
|
|
Power supply voltage |
5~24V DC (When the output signal is 0~2V, RS485) |
|
12~24V DC (When the output signal is 0~5V, 0~10V, 4~20mA) |
|
|
Working environment: Temperature |
Temperature: -30℃~70℃ |
|
|
Humidity: ≤100%RH |
|
Protection level |
IP65 |
