Atech Water Level Sensor 4-20mA RS485 Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensor
1,520.00৳
Applications: *Water Treatment Plants: Monitoring water levels in tanks and reservoirs. *Oil and Gas Industry: Measuring levels of crude oil, refined products, and other fluids. *Chemical Processing: Managing chemical inventories and processing liquids. *Food and Beverage: Monitoring levels of ingredients and finished products. *Pharmaceuticals: Ensuring accurate levels in production processes.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description

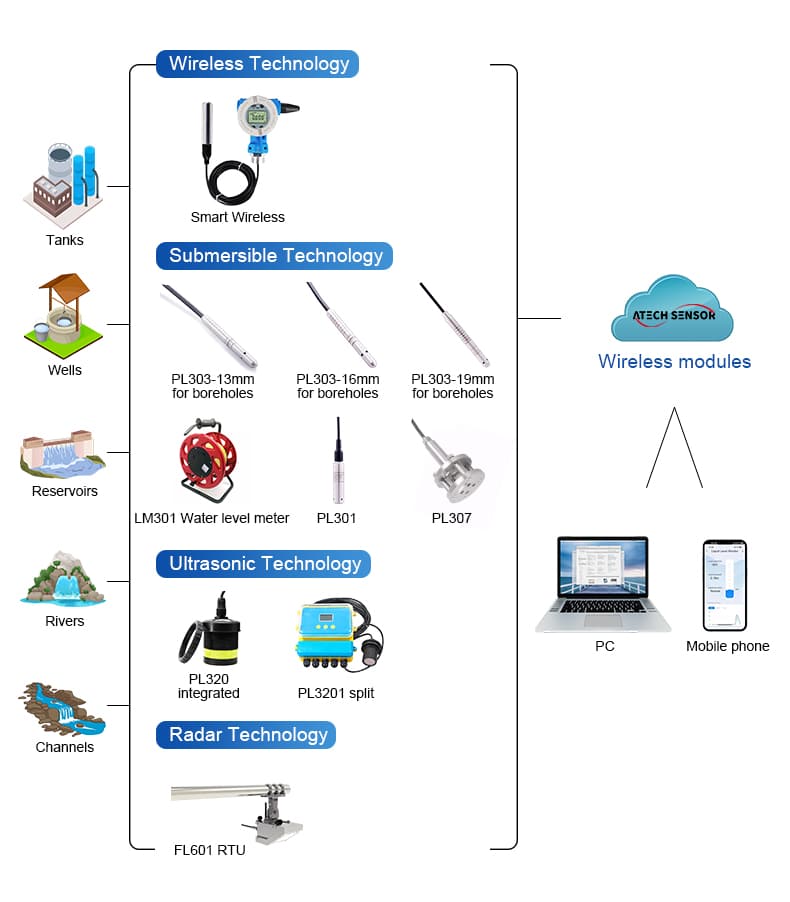

Atech level sensors offer a comprehensive solution for monitoring and managing liquid levels in industrial tanks, reservoirs, wells, and other containment systems. These sensors are engineered to provide accurate measurements, easy integration, and robust performance in challenging conditions.
Atech level sensors provide a reliable, accurate, and durable solution for all your liquid level measurement needs, ensuring optimal performance and safety in diverse industrial applications.
Applications: *Water Treatment Plants: Monitoring water levels in tanks and reservoirs. *Oil and Gas Industry: Measuring levels of crude oil, refined products, and other fluids. *Chemical Processing: Managing chemical inventories and processing liquids. *Food and Beverage: Monitoring levels of ingredients and finished products.
*Pharmaceuticals: Ensuring accurate levels in production processes.
Product Features
Water Treatment Plants
Oil and Gas Industry
Chemical Processing
Food and Beverage
Pharmaceuticals
Product Specification
|
Level range
|
0-0.5m…..500m H2O/ 0-0.05 Bar…..50 Bar
|
||||||
|
Overload
|
150% F.S.
|
||||||
|
Burst Pressure
|
500% F.S.
|
||||||
|
Accuracy
|
≤ ±0.5%F.S(Typical); ≤ ±0.25%F.S (by customized) @25 degree C
|
||||||
|
Long-term Stability
|
≤ ±0.1%F.S. of span/year
|
||||||
|
Working Temp.
|
-40℃~80℃(non-corrosive medium)
|
||||||
|
Storage Temp.
|
-40℃~80℃(Nitrile rubber sealing ring); -20℃~80℃(fluororubber rubber sealing ring)
|
||||||
|
Temperature Compensation
|
0℃~80℃
|
||||||
|
Medium compatible
|
Compatible with 316L Stainless Steel
|
||||||
|
Electronic Wire
|
2 Wires
|
3 wires
|
4 Wires
|
||||
|
Output
|
4-20mA
|
4-20mA+Hart
|
0-5V
|
0-10V
|
0.5-4.5V
|
Dual 4-20mA
|
RS485
|
|
Power Supply
|
7-30Vdc
|
12-30Vdc
|
8-30Vdc
|
13-30Vdc
|
5Vdc
|
12-30Vdc
|
3.5-36Vdc
|
|
Electronic connection
|
Fixed cable with vented tube and water proof IP68
|
||||||
|
Response time
|
≤10 ms
|
||||||
|
Pressure Type
|
Gauge pressure; Sealed gauge and absolute optional.
|
||||||
|
Cable optional
|
PE Cable（Water Proof）; PU Cable（Oil/Fuel Proof）; FEP Cable（Anti-Corrosive）
|
||||||
