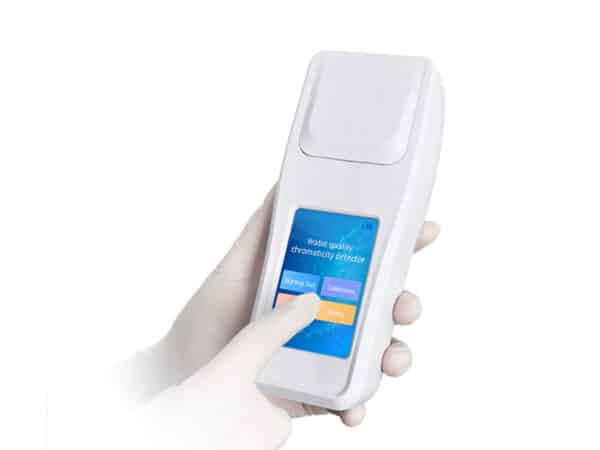

Beer Chromameter

Product Introduction:

The beer chromameter adopts the platinum-cobalt standard chroma method to measure the color produced by dissolved substances. The instrument is calibrated with the platinum-cobalt chroma standard solution specified in the national standard GB5750, and platinum-cobalt chroma is used as the unit of measurement.

This instrument uses the photoelectric colorimetry principle to replace the traditional visual colorimetry. Human errors are eliminated, so the measurement resolution is greatly improved. When measuring, put the water sample to be measured into the photoelectric colorimetric cell, and the instrument will read the data directly.

Instrument Features:

① Android smart system, easier and faster operation;

② Equipped with a cloud monitoring platform, the test results can be directly wirelessly transmitted to the platform for long-term and short-term water quality analysis and auxiliary management.

③ Built-in operation process, simple operation, no training required, direct start;

④ Faster detection speed, on-site data reading;

⑥ Portable, small size, light weight, convenient for outdoor detection;

⑦ Small and beautiful appearance, stable operation and maintenance-free, with good cost performance;

⑧ Adopting imported cold light source, stable optical performance, life of up to 100,000 hours;

⑨ AC and DC dual-use, built-in rechargeable lithium battery, environmentally friendly and durable, can support continuous indoor and outdoor work.

Technical parameters:

Beer color: 0-20EB

Water color: 5-200PCU

Wavelength range: 340~800nm

Measurement method: photoelectric colorimetry

Repeatability: <0.5%

Stability: <0.5%

Wavelength selection: automatic

Operating system: Android smart operating system

Display screen: 3.5-inch color LCD touch screen

Sensitivity (absorbance): 0.001

Usage environment: temperature 0~50℃, humidity 0~90%

Data storage: more than 80,000 records

Communication: Type-C, WIFI, hotspot, Bluetooth

Battery: 5600mAh lithium battery

Continuous working time: 8 hours

Power supply voltage: 5V/DC DC

Dimensions: 190*77*72mm

Weight: 325g

Supported language: Simplified Chinese or English
