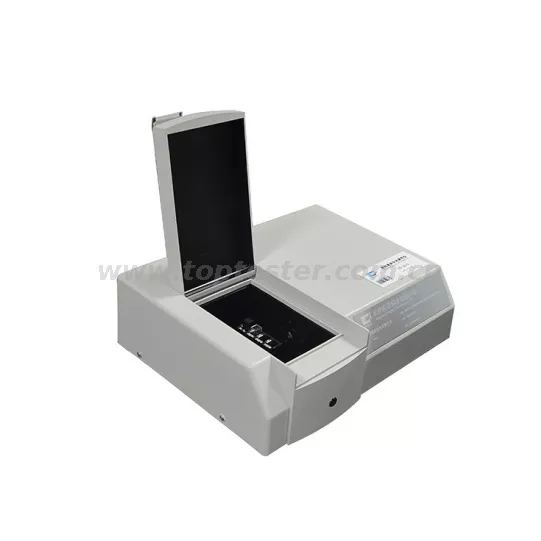

Benchtop Spectrophotometer TP-810

1,520.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

TP-810 Transmittance spectrophotometer is good performance and specially designed for testing the transparent material’s transmittance, absorbance, concentration, chromaticity value and other parameters.

The instrument adopts the geometry of D/0, integration of the full band LED composite light source, double beam optical system, ETC every-test calibration technology, which makes the instrument reaches a resolution of 0.0001, deviation of the transmittance within 0.08% and chromatic value △E*ab 0.015.

Technical Data

Type	TP-810
Illumination	d/0(Diffused illumination, 0°viewing) SCS optical engine(light splitting and integration system),( conform to CIE No.15, ISO 7724/1, ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphere	Φ40mm,Alvan diffused reflection surface coating
Illumination Light source	CLEDs(entire wavelength balanced LED light source)
Sensor	dual light path sensor array
Wavelength range	400-700nm
Wavelength interval	10nm
Half spectral width	5nm
Reflectivity range	0-200%
Reflectivity resolution	0.01%
Observation angle	2°/10°
Measurement light source	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 CWF,U30,DLF,NBF,TL83,TL84
Data being displayed	Transmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, history color value simulation, manual input standard sample, generate measurement reports
Measurement time interval	2 seconds
Measurement time	0.5 seconds
Color space	CIE-Lab,LCh,CIE-Luv, XYZ, Yxy, Transmittance, Hunterlab, Munsell MI, CMYK
Color space		Color difference formulas	ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94,ΔE*00 ΔEab(Hunter),555color classification
Other colorimetric indices	WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), YI(ASTM D1925，ASTM E313-00,ASTM E313-73), Tint(ASTM E313-00,CIE,Ganz),Metamerism index Milm, Stick color fastness, Color fastness, APHA Hazen, Pt-Co, Gardner, Saybolt, Astm color	Color difference formulas
Other colorimetric indices		Repeatability	light splitting reflectivity: standard deviation within 0.08%
color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals,Maximum: 0.03)		Repeatability
Interface	USB
Data storage	mass storage
Light source longevity	5 years, 1.5 million tests
Size	475340150mm(LWH)
Weight	about 7kg
Work temperature range	0~45°C, relative humidity 80% or below( at 35°C )，no condensation
Storage temperature range	25°C to 55°C，relative humidity 80% or below(at 35°C )， no condensation
Standard accessories	AC power line, color management software, drive software, USB cable, black calibration tube, 40*10mm cuvette
