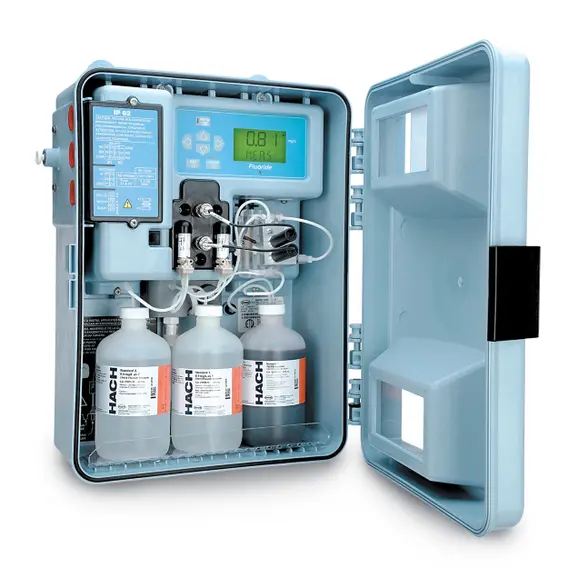

CA610 Fluoride Analyzer with Reagents
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Ion-selective electrode with patented, replaceable tip. Automatic calibration. Temperature-controlled wall-jet flow cell. Rugged, lightweight enclosure. Ultra-low reagent consumption. Virtually immune to interferences.
Applications:
- Municipal Water
Benefits
Reliable, Full-time Fluoride Monitoring
The CA610 Fluoride Analyzer uses advanced ion-selective electrode (ISE) technology for continuous monitoring of fluoride concentration in drinking water effluent. Accuracy is ensured with precise control of temperature, ionic strength, and pH. Interferences that can bias measurements are virtually eliminated with this electrode.
Patented Electrode Design with Replaceable Tip
The proven ISE technology of the electrode is enhanced by a patented* design and manufacturing process. The lanthanum crystal at the tip of the probe is molded into a one-piece, monolithic tip that is threaded for easy removal. This prevents errors and premature failures. Electrodes are equipped with BNC connectors so that they can be independently checked with laboratory electrochemical meters.
Cost Effective Operation
The electrode of the CA610 analyzer is made with a molded fluoride crystal tip. The working life of the electrode is approximately one year. The specially designed tip of the electrode should be replaced every six months. Reagent consumption is very low and maintenance is simple.
Method of Analysis
The ISE system of the CA610 analyzer includes a reference pH electrode and a working electrode. Three reagents are used: Total Ionic Strength Adjustment Buffer (TISAB) solution and two fluoride standards. The TISAB is used for the following purposes. The Ionic strength adjustment lets the electrode respond to concentration instead of activity. The pH control ensures fluoride is present in its ionic state. The Weak complexes formed by certain metals (for example, aluminum) are broken up by TISAB and chelates potential interferents for accurate fluoride measurement.
Automatic Calibration
Two calibration standards are fully enclosed in the CA610 analyzer’s case. The instrument performs a 2-point calibration at 0.5 and 5.0 mg/L fluoride at user-selected time intervals. Automatic calibration intervals can be set for 1 day to 1 month. Readings and calculations of the most recent calibration is stored in the instrument.
Applications
Specifications
Technical Attributes
| Accuracy | ± 10 % or ±0.10 mg/L whichever is greater |
| Air Purge | 0.1 cfm at 20 psig |
| Alarm | Two alarms, selectable for sample concentration, system warning or system shutdown. Each alarm equipped with an SPDT relay with contacts rated for 5 A resisitive load at 230 Vac. |
| Calibration Method | 5.0 mg/L fluoride standards |
| Compliance Certifications | CE approved, ETL listed to UL 1262, ETL certified to CSA 22.2 No. 142 |
| Cycle Time | 4.2 min |
| Dimensions (H x W x D) | 34.3 mm x 41.9 mm x 19.1 mm |
| Display | LCD, 3 to 1/2 -digit measurement readout and six-character alphanumeric scrolling
text line |
| Drain Fitting | 1/2-inch ID flexible hose |
| Inlet | 1/4-inch OD polyethylene tubing, quick-disconnect fitting |
| Inlet Pressure | 1 – 10 psig (use sample restriction device to reduce higher pressure samples) |
| Lower Limit of Detection (LOD) | 0.10 mg/L 0.10 ppm |
| Mounting | Wall mount |
| Operating Humidity | 90% at 40 °C (104 °F) |
| Operating Temperature Range | 5 – 40 °C (41 – 104 °F) |
| Power Requirements (Amps) | 2.5 A |
| Power Requirements (Hz) | 50/60 Hz |
| Power Requirements (Voltage) | 100 – 115/230 V AC |
| Power Supply | selectable, 90 VA max. , |
| Range | 0.1 – 10.0 mg/L Fluoride |
| Recorder Outputs | An isolated output of the recorder, from 4 to 20 mA (can be set from 0 to 20 mA) |
| Sample Flow Rate | 200 – 500 mL/min |
| Sample Temperature | 5 – 40 °C (41 – 104 °F) |
| Storage Conditions | -40 to 60 °C (-40 to 140°F) without reagents |
| Warranty | 12 months |
| Weight | 11.3 kg (25 lbs) |
| What’s included? | CA610 Fluoride analyzer, one-month supply of reagents, installation kit, annual maintenance kit, Hach user manual |
