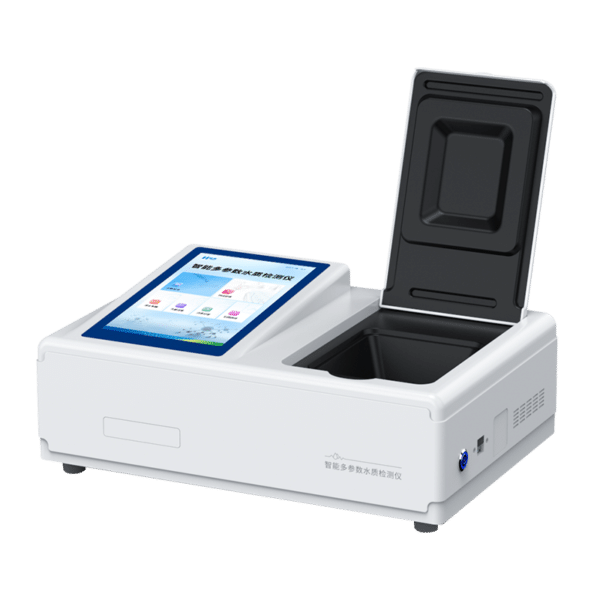

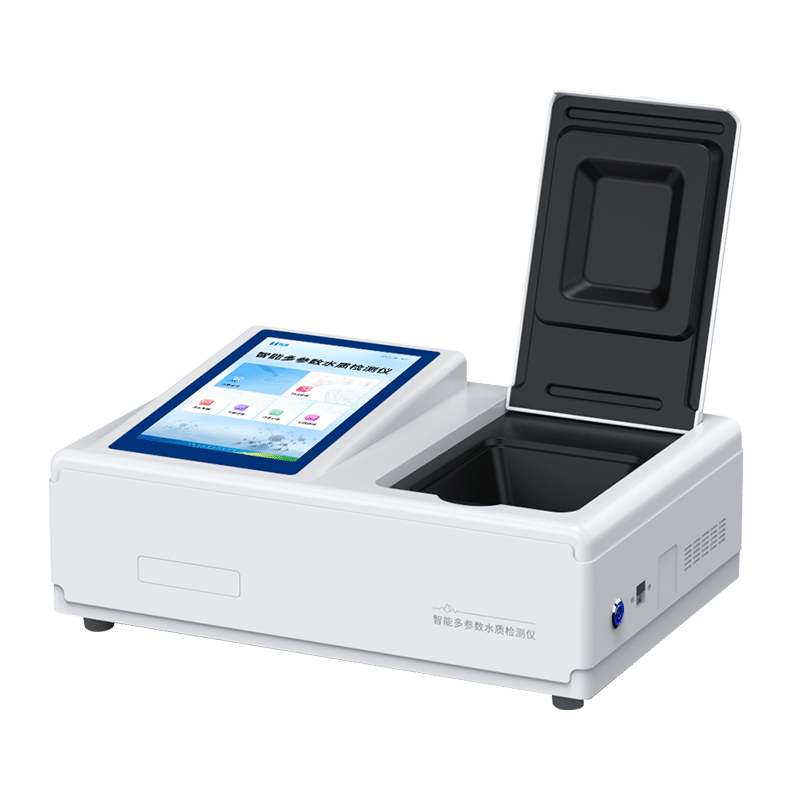

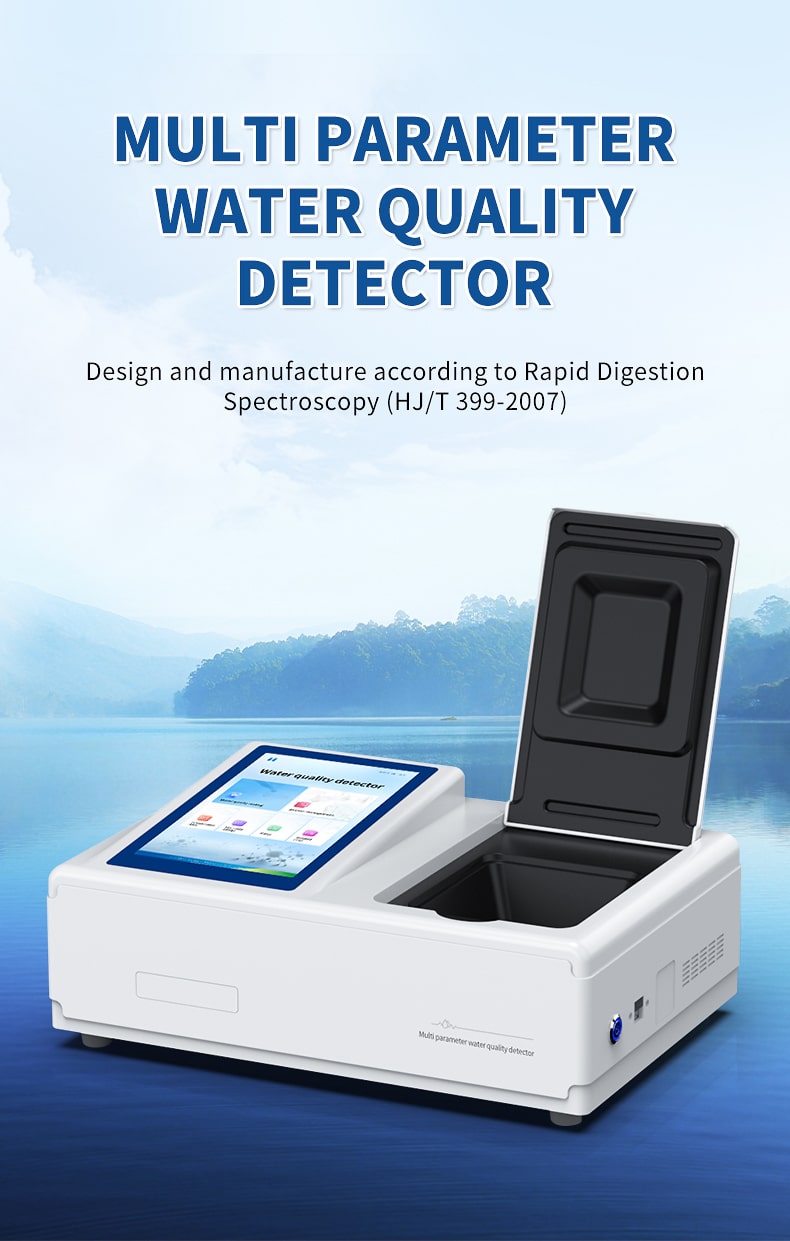

COD, ammonia nitrogen and total phosphorus detector

Equipment Introduction:

The intelligent COD ammonia nitrogen and total phosphorus detector is designed and manufactured according to the “Rapid Digestion Spectrophotometry (HJ/T 399-2007)”, which mainly detects the content of COD, ammonia nitrogen and total phosphorus in water quality; this instrument has both intelligent data analysis functions, charts and lists display data, and the analysis is clear at a glance; high-definition color LCD touch screen, Android intelligent operating system, Chinese display interface, Chinese and English keyboards, humanized operation, and easier to use.

Wide application:

It can be widely used in the detection of wastewater in various industries (industrial wastewater, urban sewage, domestic sewage and surface water in rivers and lakes), which can meet the various needs of different users. It can be used in industrial wastewater and various domestic sewage monitoring applications such as chemical, petroleum, coking, papermaking, metallurgy, brewing, and medicine.

Functional features:

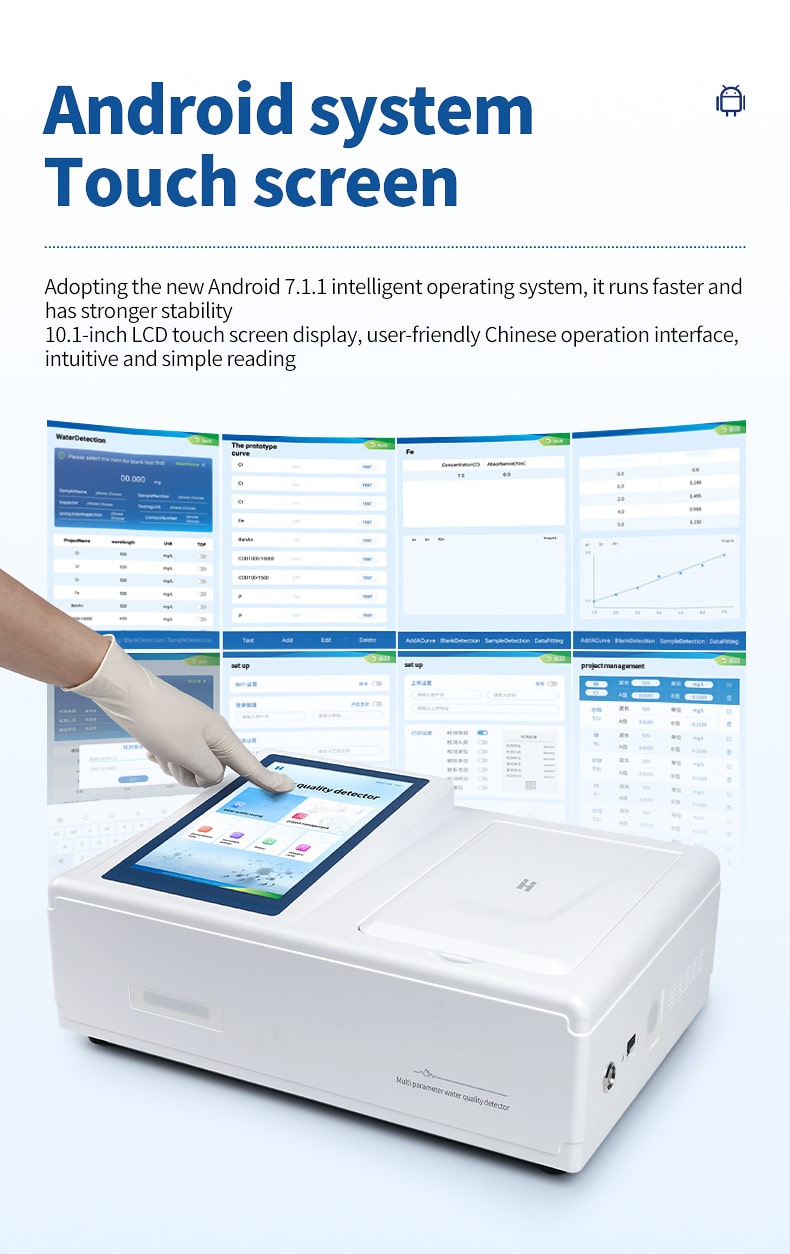

1. Adopting the new Android 7.1.1 intelligent operating system and humanized Chinese operating interface, it has faster operation speed and stronger stability.

2. 10.1-inch LCD touch screen display, humanized Chinese operating interface, intuitive and simple reading.

3. The precision colorimetric cell design is adopted, and the light source is consistent, which can solve the error problem of the test result caused by the error of the light source, and the test result is more accurate.

4. The light source adopts imported ultra-bright light-emitting diodes, and the brightness of the light source can be automatically adjusted and calibrated.

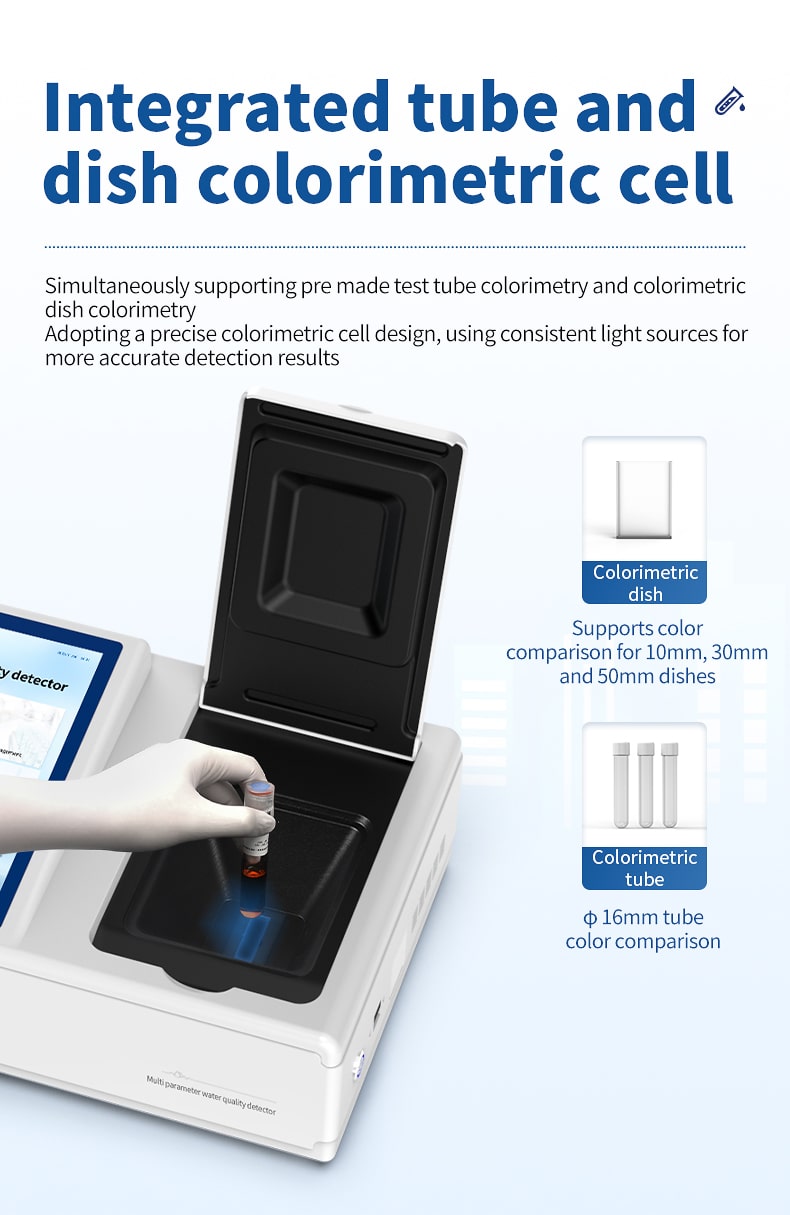

5. Supports colorimetric methods such as 10mm, 30mm, 50mm dish colorimetry and φ16mm tube colorimetry, with multiple choices to ensure the accuracy of measurement;

6. It has wireless communication function, supports WIFI, RJ45, mobile phone hotspot network transmission, and the test data can also be exported through a USB flash drive;

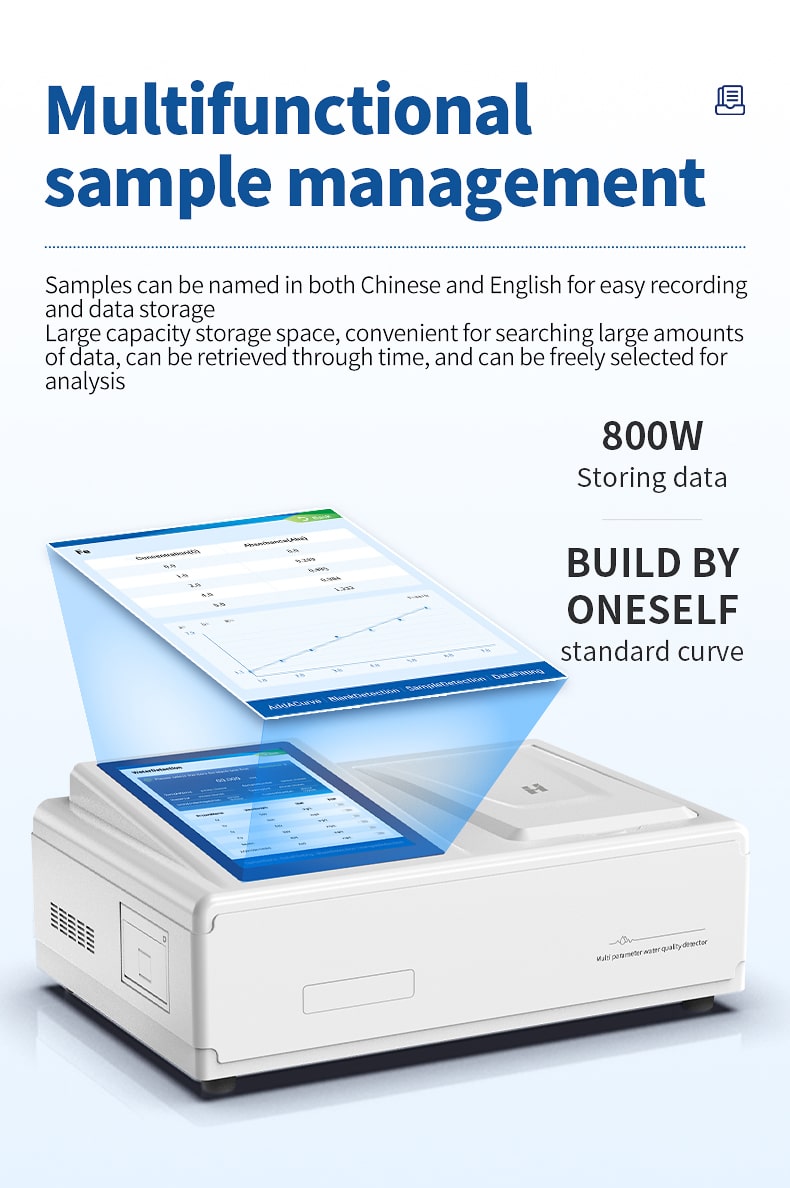

7. Multi-function sample management, samples can be named in Chinese and English, which is convenient for sample recording and data storage;

8. The instrument can permanently store 8 million sets of data. To facilitate the search of large amounts of data, it can be retrieved by time and analyzed at will;

9. Supports HDMI output, which is convenient for user training, explanation, and large-screen display.

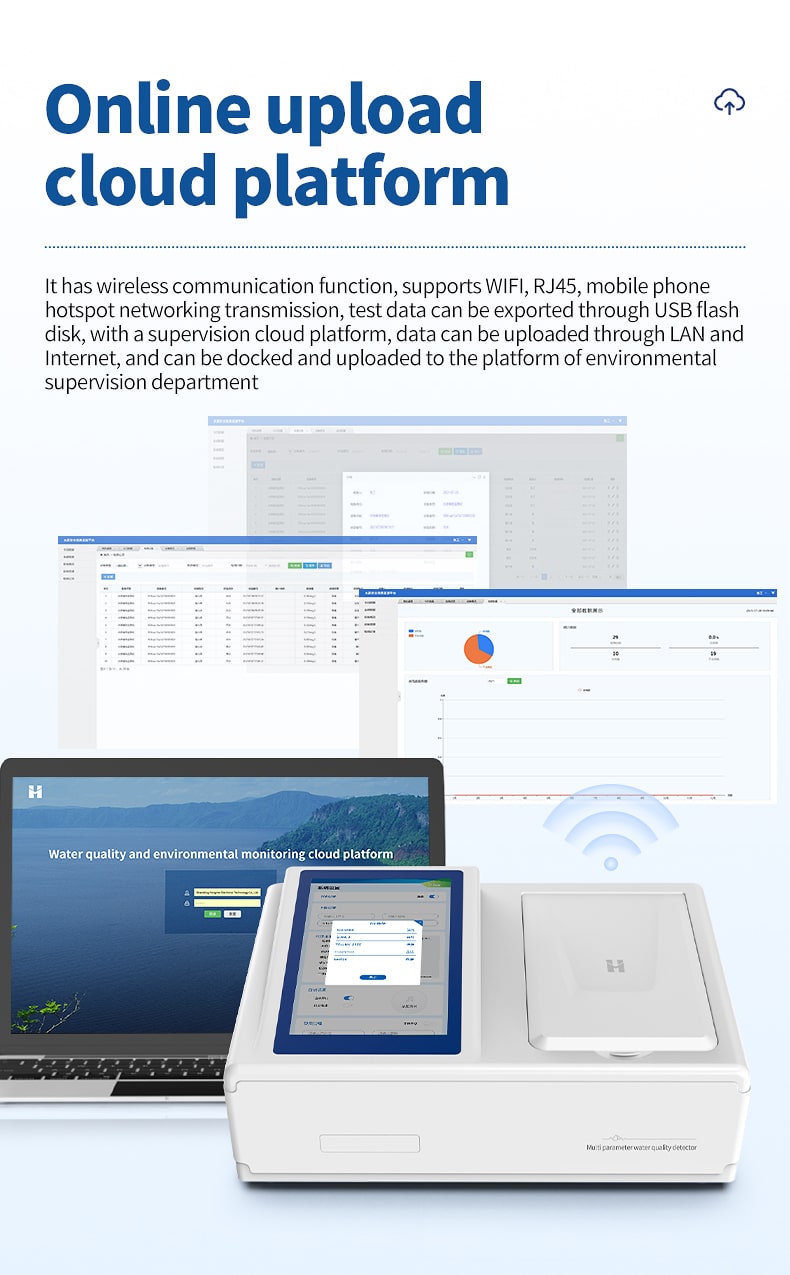

10. The instrument is equipped with a regulatory cloud platform, and data can be uploaded through the local area network and the Internet, and can also be connected and uploaded to the platform of the environmental regulatory department.

11. Built-in thermal line printer, the content on the print paper can be freely selected (including QR code printing);

12. AC 220V, optional 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing;

13. The firmware of the later product can be upgraded.

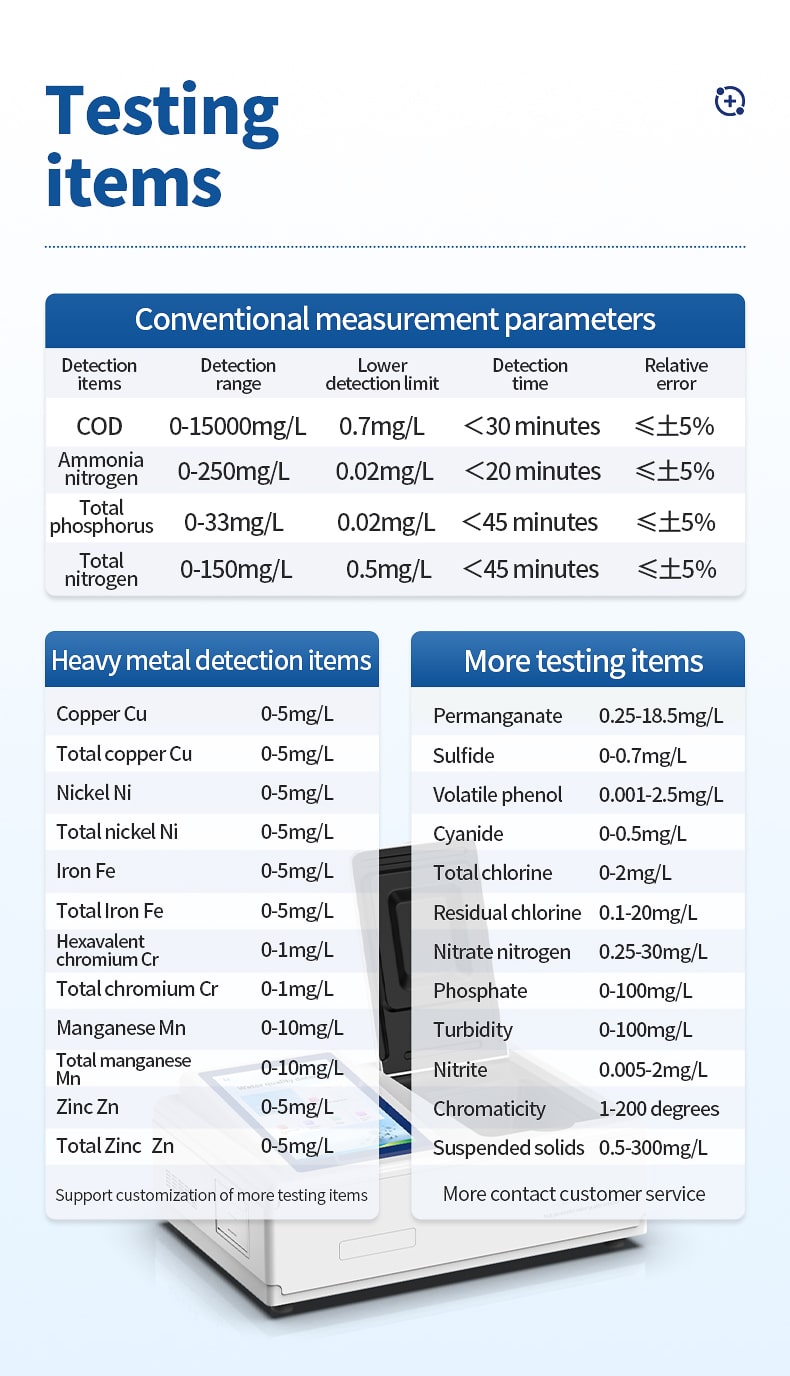

Technical parameters:

Based on standard: rapid digestion spectrophotometry (HJ/T 399-2007)

Detection range: 0-15000mg/L (segmented)

Detection limit: 0.7mg/L

Wavelength configuration: 420nm, 470nm, 520nm, 560nm, 620nm, 700nm;

Indication error: ≤±5%;

Repeatability: ≤2%;

Photochemical stability: numerical drift within 20min ≤0.002A (100,000 hours of life);

Physical parameters

Operating system: Android 7.1.1 Intelligent operating system;

Display: 10.1-inch high-definition color LCD touch screen;

Network interface: USB2.0, WiFi, Bluetooth, hotspot, RJ45;

Operation interface: Chinese/English (factory optional);

Colorimetric method: colorimetric tube, colorimetric dish;

Printer: thermal line printer;

Communication interface: USB2.0;

Power supply: AC 220V, optional large-capacity rechargeable lithium battery;

Data export format: Excel table;

Cloud platform: The instrument has a supervision platform, connected to the network, and the test results are directly transmitted to the environmental safety supervision platform;

Instrument size: 444 x 303 x 173 mm;

Instrument weight: 5.2kg (excluding adapter or charger and battery);

Environment and working parameters

Environmental temperature: (5 – 40)℃;

Environmental humidity: relative humidity <85% (no condensation);

Rated power: 20W

Working power: AC220V±10%/50Hz;

Configurable: large-capacity lithium battery.
