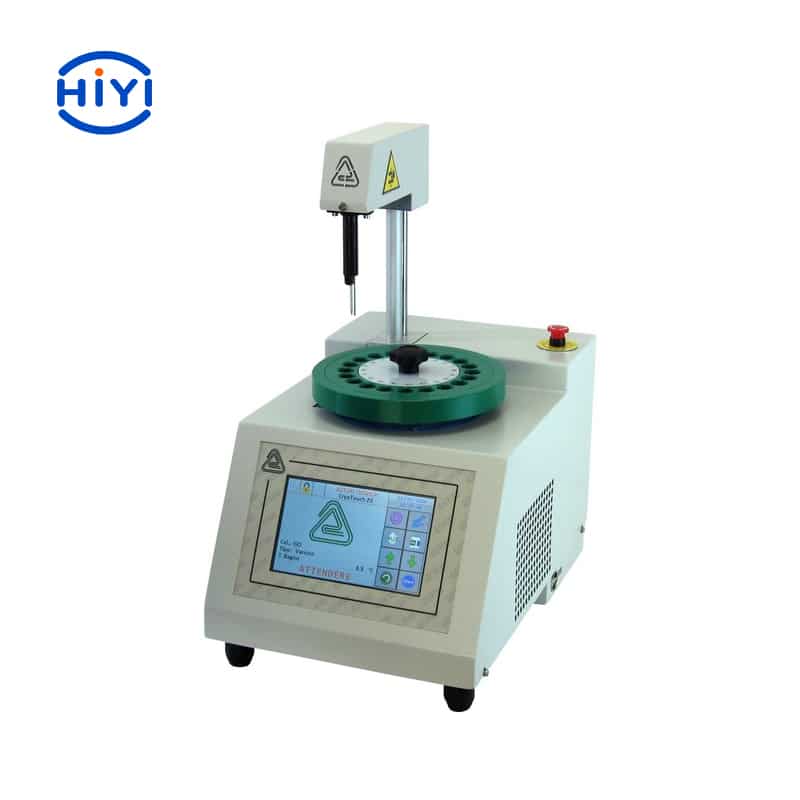

CryoTouch 20 – 20 Sample Automatic Cryoscope With “lactose-free” Function

CryoTouch 20

20 Sample Automatic Cryoscope With “lactose-free” Function

Overview:

This next generation cryoscope includes a lot of useful features that the most recent technology allows: a full colour 7” touchscreen display, real-time visualization of the freezing curve, stable memory for more than 4,000 results, a PC software for data handling, a USB port for downloading all data to a pen drive and much more.

Features:

• Choice among 6 values for setting the reference value and between 2 different formula to calculate the added water %
• Choice between 2 reading modes: plateau mode according to ISO method or fixed-time mode
• Real-time graph of the sample temperature during each analysis
• An alphanumeric ID code can be added to each sample, easily
• Optional barcode reader for a quick sample identification (it requires an additional RS232 port to be requested when ordering)
• Results shown in different colours for a quick identification of anomalies or critical values
• New “Lactose-free milk” function to control the removal of lactose in milk and cream
• Stable memory for 2 different calibration curves: the typical one in compliance with ISO requirements and a second one to be set according to the user’s needs (i.e.: Lactose-free curve)
• Stable memory for up to 4,000 results
• Easy download of test results to a USB pen drive
• Real time PC monitoring or quick download of test results to a PC of test results thanks to CryoSoft Touch data handling software
• Immediate visualization of error messages

Look at the following screenshots from

the new CryoSoft Touch data handling software

Application:

Professional analysis of added water in milk and cream samples.

CryoTouch 20 allows milk laboratories and dairy industries to perform official analysis based on ISO reference method. The new “lactose-free” function helps milk and dairy industries monitor the process of removal of lactose in milk and cream.

• Sample capacity: up to 20 samples
• Full colour 7” touchscreen display
• Bath with Peltier cells controlled by software
• Operating ambient temperature: +5°C to 36°C
• Automatic calibration
• Lash and agitation width controlled by software
• Selectable °C, °Hortvet and water% units
• Sample volume: 2 or 2.5 mL
• Analysis duration: about 2 minutes/test
• Warm up time: about 5 minutes
• Resolution: ±0.0005°C
• Reproducibility (on bovine milk): ±0.0025°C
• USB port for data downloading to a pen drive
• 2 x RS232 ports for connecting the provided thermal printer and an optional PC
• An additional RS232 port can be added for connecting an optional barcode reader
• Power absorption: max. 150 W
• Dimensions: 285x485x360 mm (wxdxh, head down)
• Net weight: 17.4 Kg
