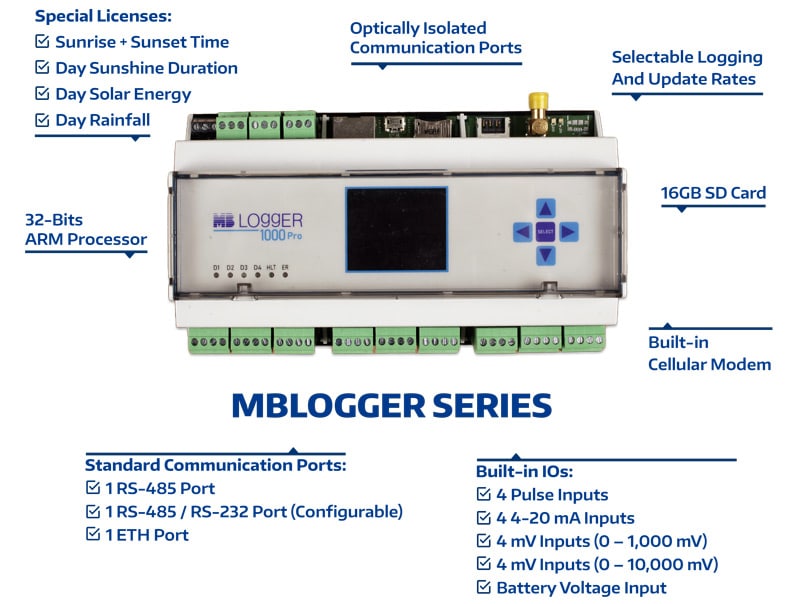

Datalogger

Designed especially for Meteorological Applications, Atech Sensor has a wide range of I/O options available, please refer to the Datasheet for a detailed description of the options available. All programming and configuration is done via the Datalogger’s Built-in Webserver – removing the need for any programming software. The Datalogger Webserver has an ever-expanding library of all popular sensors and devices in the market – and new ones can be added easily. Additionally, there are licenses available which can calculate Day Sunrise and Sunset time, Daily Sunshine Duration, Day Rainfall, etc.

●32-Bit Processor
●RTC with Battery Backup for Precise Timekeeping
●24-Bit ADCs to capture slight changes in Data Values
●32MB Non-Volatile Memory for Program Storage.
●Up-to 16GB of Storage using Removable SD Card
●High Accuracy Analog Inputs (0.1% Accuracy)
●Selectable Logging and Update Rates.
●Built-In Calculations such as Average, Minimum, Maximum, Standard Deviation, Totalisation, etc.
●Calculates Sun rise and set time, day duration, total day solar energy etc.
●Optically Isolated RS-485 / RS-232 Ports (Software Configurable)
●Built-In Cellular Modem and GPS for Telemetry
●Built-In Webserver for Configuration, Real-Time Data Monitoring, Download of Data in .csv formats
●Supports Multiple protocols such as Modbus RTU Master / Slave, ASCII Master, Modbus TCP/IP Master + Slave, SNTP Client, FTP.
●FTP via modem and ETH ports
●Supports Sensors with low voltage outputs (0 – 1,000 mV) with High Sampling Rates.
●Multiple Models are available.
