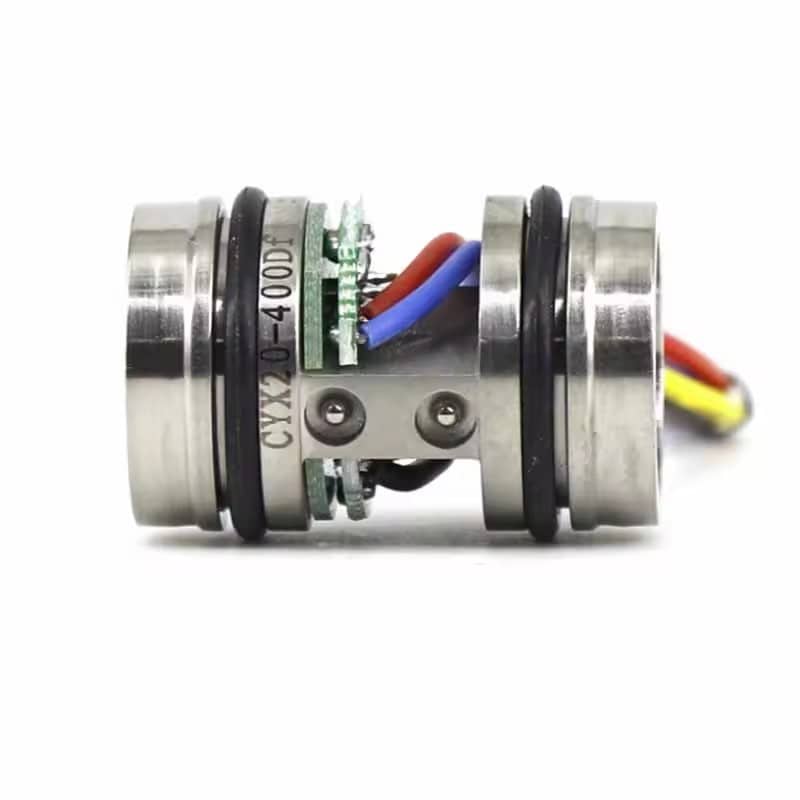

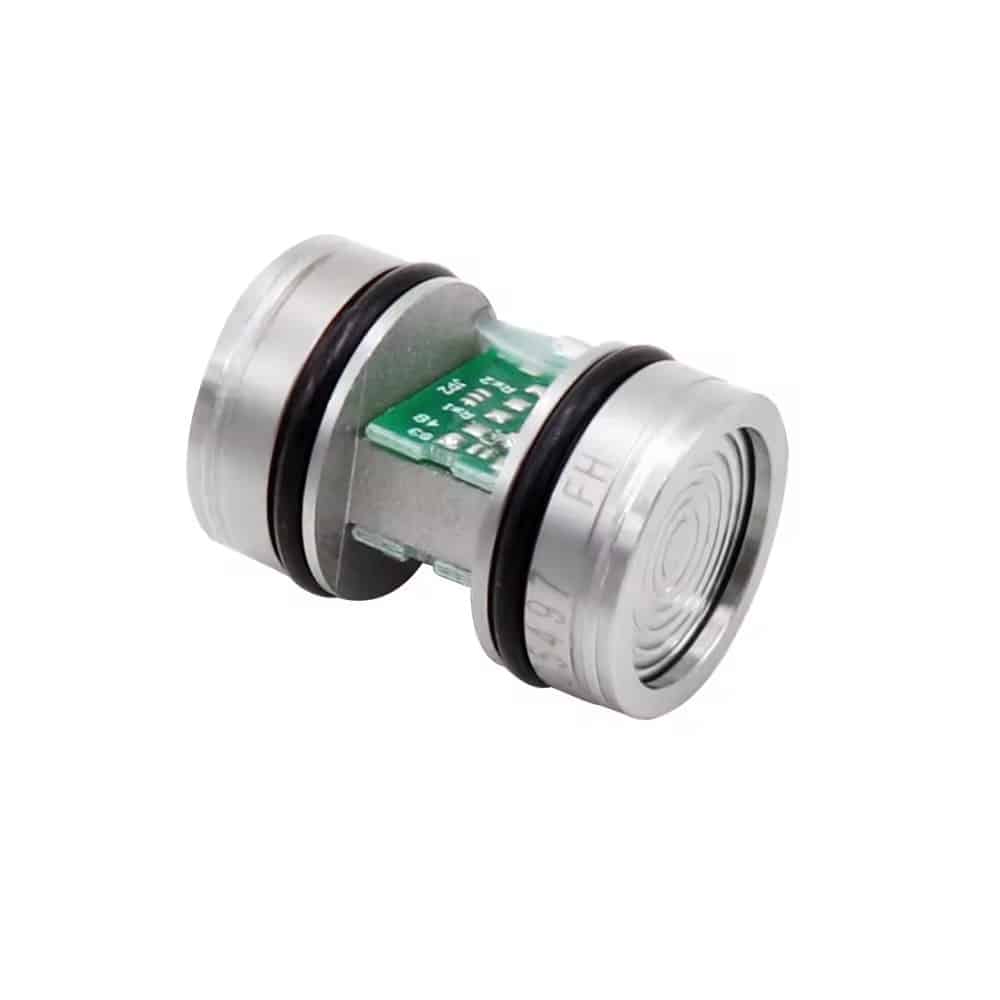

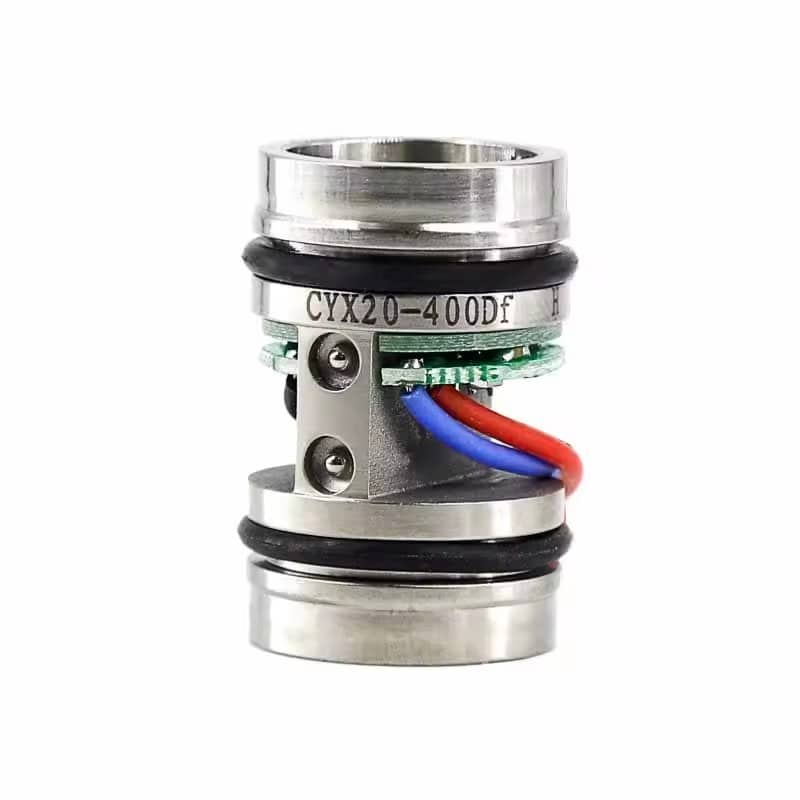

Differential Pressure Sensor
1,520.00৳
Differential Pressure Sensor is a standard and most popular sensor applied in air and liquid pressure measuring.
Applications：
● Industrial process control
● Level measurement
● Gas, liquid pressure measurement
● Pressure checking meter
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
It is available ranges 0-2.5Mpa.
Applications：
● Industrial process control
● Level measurement
● Gas, liquid pressure measurement
● Pressure checking meter
● Liquid pressure system and switch
● Pressure calibrator
● Cooling equipment & A/C system
● Aviation and navigation inspection
Product Features
● Pressure range 0～2.5MPa
● Differential Pressure
● Constant current/Voltage power supply
● Isolated construction, measure various media
● Φ19mm OEM Pressure Sensor
● Full Stainless Steel 316
● Wide temperature compensation -10℃～80℃
● Long-term stability ±0.1%FS/year
Product Specification
| Model |
Range |
Diameter |
Type |
Accuracy/FS |
Input |
Output |
| Series 1 | 0-2bar-1000bar | 12.6mm | G/A/S | 0.1%-0.2% | 1.5mA | ≤150mV |
| Series 2 | 0-1500bar | 15mm | G/A/S | 0.1%-0.2% | 5V | ≤150mV |
| Series 3 | 0-0.07bar | 19mm | G | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 4 | -1bar-0.1bar-1000bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/3.3V/5V/10V | ≤150mV |
| Series 5 | -1bar-0.1bar-1000bar | 19mm | G/A | 0.3%-0.5% | 3.3V | ≤150mV |
| Series 6 | 0.1bar-30bar(Pressure) | 19mm | G/A/S | 0.25% | 1.5mA/5V/10V | ≤150mV |
| -104’℉-185’℉(Temperature) | 0.50% | |||||
| Series 7 | -1bar-0.1bar-1000bar | 19mm | G/A/S | 0.20% | 10-30V | 0.5-4.5V/4-20mA |
| Series 8 | 0-0.35bar-35bar | 19mm | D | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 9 | -1bar-0.1bar-1000bar | 28mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 10 | -1bar-100bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 11 | 0-5bar-100bar | 29.5mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 12 | -1bar-0.1bar-35bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 13 | 0-0.35bar-60bar | 50mm | G/A/S | 0.20% | 1.5mA/5V/10V | ≤150mV |
| Series 14 | 0-100pa-400bar | 35mm | G/A/S/D | 0.1%-0.2% | 10-30V | 4-20mA/HART |
| Series 15 | 0-2bar-2200bar | 19mm | G/A/S | 0.05%-0.075% | 1.5mA/5V/10V | ≤150mV |
| Measuring Range & Output | ||||
|---|---|---|---|---|
| Range | Overload Pressure | Output/F.S (mV) | Typical Value(mV) | Pressure Type |
| 0~10 kPa | 300% | 35~60 | 45 | G/D |
| 0~20 kPa | 300% | 70~110 | 90 | G/D |
| 0~35 kPa | 300% | 55~80 | 70 | G/A/D |
| 0~70 kPa | 300% | 55~80 | 60 | G/A/D |
| 0~100 kPa | 300% | 60~85 | 75 | G/A/D |
| 0~200 kPa | 300% | 60~85 | 75 | G/A/D |
| 0~400 kPa | 300% | 60~80 | 70 | G/A/D |
| 0~600 kPa | 200% | 90~120 | 100 | G/A/D |
| 0~1.0 MPa | 200% | 125~185 | 150 | G/A/D |
| 0~1.6 MPa | 200% | 80~120 | 100 | G/A/D |
| 0~2.0 MPa | 200% | 50~70 | 60 | G/A/D |
| 0~3.5 MPa | 200% | 100~120 | 110 | G/A/D |
| Notes: G for Gauge pressure; A for Absolute pressure; D for Differential pressure; S for Sealed gauge. | ||||
| Technical Parameters – Range 0-1Mpa-100Mpa | |||
|---|---|---|---|
| Parameters | Typ. | Max. | Unit |
| Nonlinearity | 0.2 | 0.3 | %FS |
| Hysteresis | 0.03 | 0.05 | %FS |
| Repeatability | 0.03 | 0.05 | %FS |
| Zero Output | ±1 | ±2 | mV DC |
| FS output | 85 | 100 | mV DC |
| Input/ Output Impedance | 2.6 | 3.8 | kΩ |
| Zero Temperature Drift* | ±0.15 | ±0.8 | %FS,@25℃ |
| Sensitivity Temperature Drift* | ±0.2 | ±0.7 | %FS,@25℃ |
| Long-term Stability | 0.2 | 0.3 | %FS/year |
| *The typical value of 0~10kPa & 0~20kPa’s zero temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃ | |||
| *The typical value of 0~10kPa & 0~20kPa’s sensitivity temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃ | |||
| Construction Performance | |
|---|---|
| Diaphragm | Stainless Steel 316L |
| Housing | Stainless Steel 316L |
| Pressure leading tube | Stainless Steel 316L |
| O Ring | Φ19mm(nitrile rubber or viton) |
| Measuring Medium | Which is compatible with SS316L, viton, nitrile rubber |
| Packing Medium | Silicon Oil |
| Net weight | 100g |
| Electric & Environment Performance | |
|---|---|
| Power supply | 1.5mA/5V/10V |
| Insulation Resistance | 500MΩ@500VDC |
| Overpressure | 1.5~3 times FS |
| Vibration(20~500Hz) | 20G |
| Useful Time(25℃) | >1*100 Million Times @Pressure Circulation(80%FS) |
| Response Time | ≤1ms |
| Storage Temp. | -40~+125℃ |
| Operating Temp. | -40~+85℃ |
| Compensation Temp. | 0~50℃; -10~80℃ |
