Digital Display Indicator
1,520.00৳

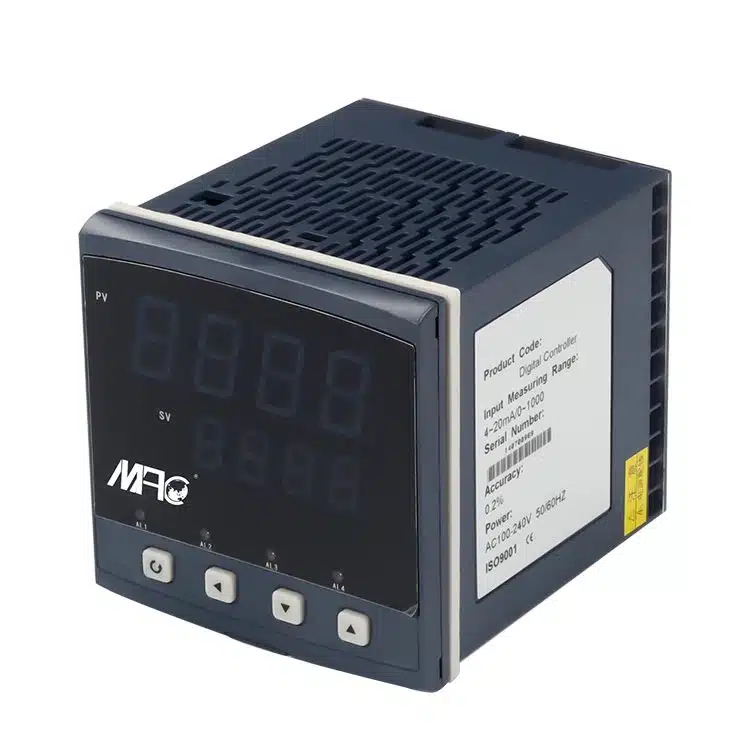

Model:D5100
Dual-screen LED display
Applications:
√Process Automation
√Laboratory Equipment
√Food and Beverage
√Packaging Machinery
√Industrial Manufacturing
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
The D5100 series digital display controller collects, displays, controls, remote transmits, communicates, prints and other processes for on-site temperature, pressure, liquid level, speed and other signals to form a digital acquisition system and control system, which is widely used in electric power, petrochemical industry, metallurgy, light industry, pharmaceuticals, aviation and many other fields.
Product Features
- 39 fully switchable signal inputs, rich output functions, and multiple alarm modes can be freely set
- Measurement, alarm, transmission, communication, printing, and power feeding constitute a digital acquisition control system
- Collection, display, control, remote transmission, communication, printing and other processing of various signals such as on-site temperature, pressure, liquid level, speed, etc. to form a digital acquisition system and control system
- Compatible with various systems and devices
Product Specification
| Input | |||||
| Input signals | Current | Voltage | Resistance | Thermocouple | |
| Input Impedance | ≤250Ω | ≥500KΩ | |||
| Maximum input current | ≤30mA | ||||
| Maximum input
voltage |
≤6V | ||||
| Output | |||||
| Output signals | Current | Voltage | Relay | 24V distribution or feeder | |
| Output load capability | ≤500Ω | ≥250 KΩ
(Note: Please replace the module for higher load capacity) |
AC220V/0.6(small)
DC24V/0.6A(small) AC220V/3A(big) DC24V/3A(big) According to Remarks |
≤30mA | |
| Comprehensive parameter | |||||
| Accuracy | 0.2%FS±1 bit | ||||
| Setting model | Panel touch key
parameter setting values locking; store the setting values permanently |
||||
| Display style | -1999 ~ 9999 display range
0 ~ 100% measured value lightness bargraph display; LBD display for working state |
||||
| Working environment | Ambient temperature: 0 ~ 50 ℃;
Relative humidity: ≤ 85% RH; Far from strong corrosive gas |
||||
| Power supply | AC 100 ~ 240V, (50/60HZ);
DC 20 ~ 29V |
||||
| Power | ≤5W | ||||
| Communication | Standard MODBUS communication protocol,
RS-485, communication distance up to 1 km, RS-232 ,communication distance up to 15 meters Note: While with communication function, the communication converter should be a active one. |
||||
Product Dimensions
