Digital Output Pressure Sensor
1,520.00৳
Digital Pressure Sensor can transfer the measurement signals of pressure and liquid level to IIC digital output.
Applications：
● Industrial process control
● Level measurement
● Gas, liquid pressure measurement
● Pressure checking meter
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description

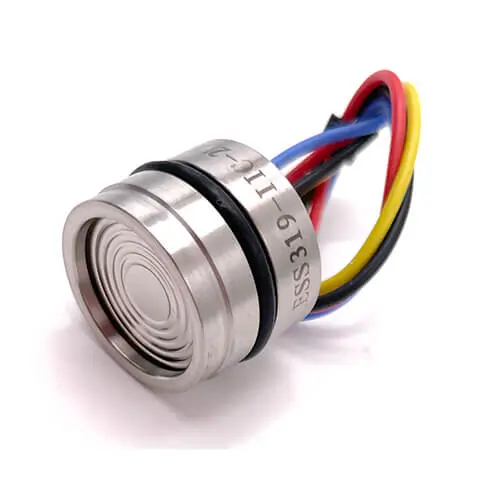

Digital Pressure Sensor can transfer the measurement signals of pressure and liquid level to IIC digital output. With the fast and accurate interface, the ESS319-IIC is used to build an Internet of Things using a microcontroller. It can read data and control power on and off to reduce power consumption through microprocessor operation.
It ranges from -100KPa to 100MPa.
Applications：
● Industrial process control
● Level measurement
● Gas, liquid pressure measurement
● Pressure checking meter
● Liquid pressure system and switch
● Pressure calibrator
● Cooling equipment & A/C system
● Aviation and navigation inspection
Product Features
● Digital compensation for sensor offset, sensitivity, temperature drift and nonlinearity
● 32-bit customer ID field for module traceability
● Digital output of temperature and pressure in I2C bus mode
● Fast power-on to data output response: 3ms
● Low power consumption, sleep mode operation, as low as 5 uA,
Product Specification
| Model |
Range |
Diameter |
Type |
Accuracy/FS |
Input |
Output |
| Series 1 | 0-2bar-1000bar | 12.6mm | G/A/S | 0.1%-0.2% | 1.5mA | ≤150mV |
| Series 2 | 0-1500bar | 15mm | G/A/S | 0.1%-0.2% | 5V | ≤150mV |
| Series 3 | 0-0.07bar | 19mm | G | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 4 | -1bar-0.1bar-1000bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/3.3V/5V/10V | ≤150mV |
| Series 5 | -1bar-0.1bar-1000bar | 19mm | G/A | 0.3%-0.5% | 3.3V | ≤150mV |
| Series 6 | 0.1bar-30bar(Pressure) | 19mm | G/A/S | 0.25% | 1.5mA/5V/10V | ≤150mV |
| -104’℉-185’℉(Temperature) | 0.50% | |||||
| Series 7 | -1bar-0.1bar-1000bar | 19mm | G/A/S | 0.20% | 10-30V | 0.5-4.5V/4-20mA |
| Series 8 | 0-0.35bar-35bar | 19mm | D | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 9 | -1bar-0.1bar-1000bar | 28mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 10 | -1bar-100bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 11 | 0-5bar-100bar | 29.5mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 12 | -1bar-0.1bar-35bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 13 | 0-0.35bar-60bar | 50mm | G/A/S | 0.20% | 1.5mA/5V/10V | ≤150mV |
| Series 14 | 0-100pa-400bar | 35mm | G/A/S/D | 0.1%-0.2% | 10-30V | 4-20mA/HART |
| Series 15 | 0-2bar-2200bar | 19mm | G/A/S | 0.05%-0.075% | 1.5mA/5V/10V | ≤150mV |
| Measuring Range & Output | ||||
|---|---|---|---|---|
| Range | Overload Pressure | Output/F.S (mV) | Typical Value(mV) | Pressure Type |
| 0~7 kPa | 300% | 65-80 | 55 | G |
| 0~10 kPa | 300% | 35～60 | 45 | G |
| 0~35 kPa | 300% | 55～80 | 70 | G/A |
| 0~70 kPa | 300% | 55～80 | 60 | G/A |
| 0~100 kPa | 300% | 60～85 | 75 | G/A |
| 0~200 kPa | 300% | 65～85 | 75 | G/A |
| 0~400 kPa | 300% | 60～80 | 70 | G/A |
| 0~1.0 MPa | 200% | 80～120 | 100 | G/A |
| 0~2.0 MPa | 200% | 50～70 | 60 | G/A |
| 0~3.5 MPa | 200% | 100～120 | 110 | G/S/A |
| 0~7.0 MPa | 200% | 120～150 | 135 | S/A |
| 0~10 MPa | 200% | 180～230 | 200 | S/A |
| 0~25 MPa | 150% | 140～170 | 150 | S/A |
| 0~40 MPa | 150% | 230～280 | 250 | S/A |
| 0~60 MPa | 150% | 100～160 | 130 | S/A |
| 0~100 MPa | 150% | 100～150 | 120 | S/A |
| Notes: G for Gauge pressure; A for Absolute pressure; D for Differential pressure; S for Sealed gauge. | ||||
| Technical Parameters – Range 0-1Mpa-100Mpa | |||
|---|---|---|---|
| Parameters | Typ. | Max. | Unit |
| Nonlinearity | 0.2 | 0.5 | %FS |
| Hysteresis | 0.05 | 0.08 | %FS |
| Repeatability | 0.05 | 0.08 | %FS |
| Zero Output | ±1 | ±2 | mV DC |
| FS output | 100 | 250 | mV DC |
| Input/ Output Impedance | 2.6 | 5.0 | kΩ |
| Zero Temperature Drift* | ±0.4 | ±1.0 | %FS,@25℃ |
| Sensitivity Temperature Drift* | ±0.4 | ±1.0 | %FS,@25℃ |
| Long-term Stability | 0.5 | %FS/year | |
| *** The typical value of 0~10kPa & 0~20kPa’s zero temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃ | |||
| *** The typical value of 0~10kPa & 0~20kPa’s sensitivity temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃ | |||
| Construction Performance | |
|---|---|
| Diaphragm | Stainless Steel 316L |
| Housing | Stainless Steel 316L |
| Pressure leading tube | Stainless Steel 316L |
| O Ring | Φ19mm(nitrile rubber or viton) |
| Measuring Medium | Which is compatible with SS316L, viton, nitrile rubber |
| Packing Medium | Silicon Oil |
| Net weight | 30g |
| Electric & Environment Performance | |
|---|---|
| Power supply | 3.3V |
| Insulation Resistance | 500MΩ@500VDC |
| Overpressure | 1.5~3 times FS |
| Vibration(20~500Hz) | 20G |
| Useful Time(25℃) | >1*100 Million Times @Pressure Circulation(80%FS) |
| Response Time | ≤1ms |
| Storage Temp. | -40~+125℃ |
| Operating Temp. | -40~+85℃ |
| Compensation Temp. | 0~50℃; -10~80℃ |
