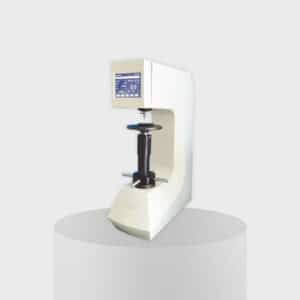

Digital Rockwell Hardness Testing Machine 410HRS-150 20-88HRA
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | 410HRS-150 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Rockwell Hardness Tester | Standard: | ISO 6508-2: 2015 |
|---|---|---|---|
| Test Force: | 588.4, 980.7, 1471N | Measuring Range: | 20-88HRA |
| Depth Of Throat: | 165mm | Max Sample Height: | 210mm |
| High Light: |
Digital Rockwell Hardness Tester, Digital Rockwell Hardness Testing Machine, Rockwell Hardness Testing Machine |
||
Model 410HRS-150 Digital Display Rockwell Hardness Tester For Testing Rockwell Hardness Of Heat Treatment Materials
Model 410hrs-150 Digital Display Rockwell Hardness Tester
Application:
It is used to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Standard:
ASTM E18-2020 Standard Test Methods for Rockwell Hardness of Metallic Materials
ISO 6508-2: 2015 Metallic materials – Rockwell hardness test – Part 2: Verification and calibration of testing machines and indenters
GB/T 230.2-2012 Metallic materials –Rockwell hardness test – Part 2: verification and calibration of testing machines(scales A,B,C,D,E,F,G,H,K,N,T)
Parameters:
| Item | Name | Details |
| 1 | Test force | 588.4, 980.7, 1471N (60,100,150kgf) |
| 2 | Measuring range | 20-88HRA, 20-100HRB, 20-70HRC |
| 3 | Depth of throat | 165mm |
| 4 | Max. height of test piece | 210mm |
| 5 | Unit of display | 0.1HR |
| 6 | Dimension | 522 x 220 x 729mm |
| 7 | Weight | approx. 68kg |
| 8 | Power | 220V AC or 110V AC, 50 or 60Hz |
Features:
1. Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18
2. Automatic test force changing after selection of hardness scale
3. High sensitivity large touch screen
4. 15 kinds of Rockwell scales,
5. 900 Groups of data storage, which is available to output to U disk
6. USB and RS232 data interface, which is convenient to connect with PC
7. Automatic hardness correction by software
8. Equipped with Bluetooth printer, easy for continuous printing, single point printing and group printing
9. Optimized mechanical frame, automatic testing process
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc.
1/16”steel ball penetrator: 1 pc.
Rockwell standardized block: 5 pcs.
Printer: 1 pc.
