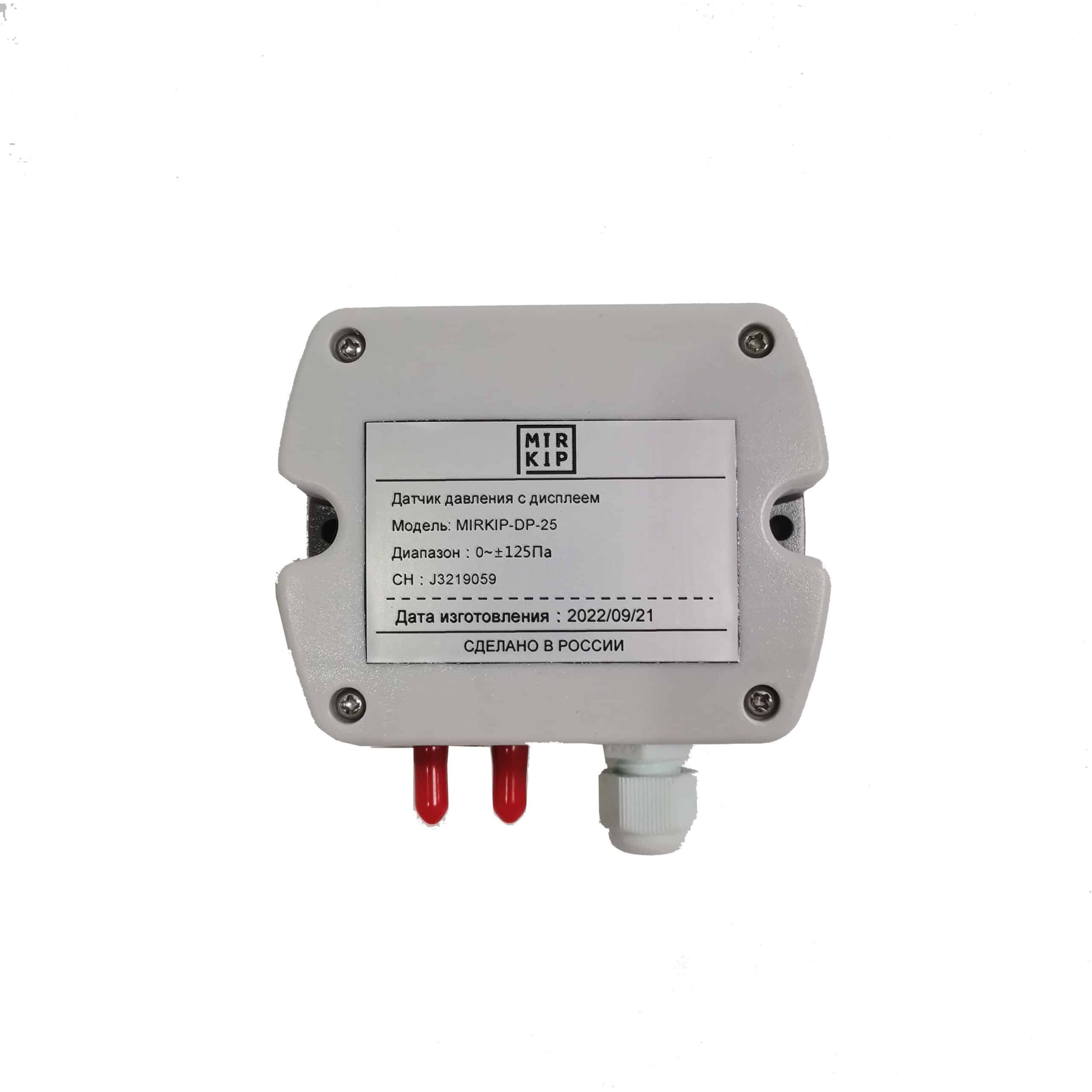

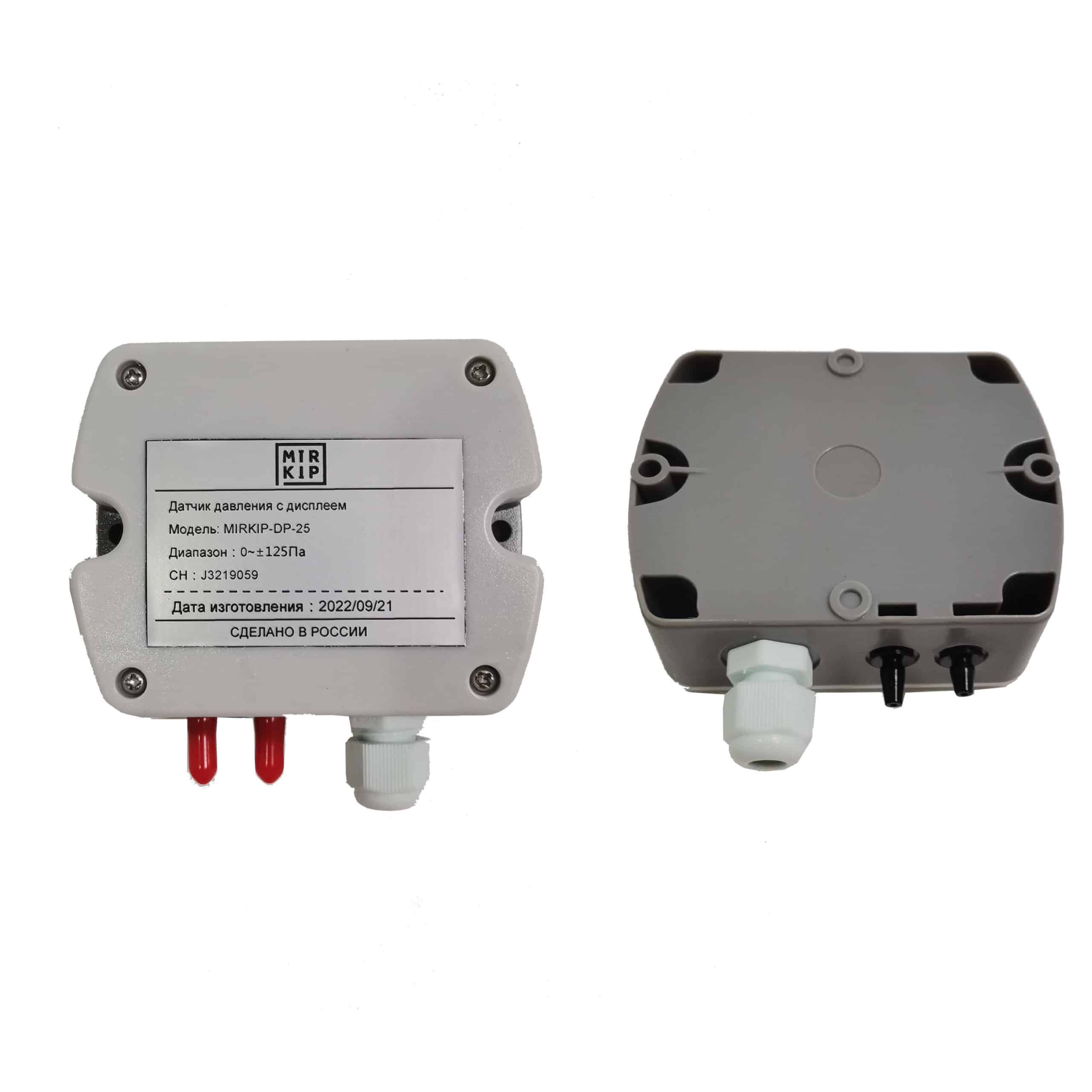

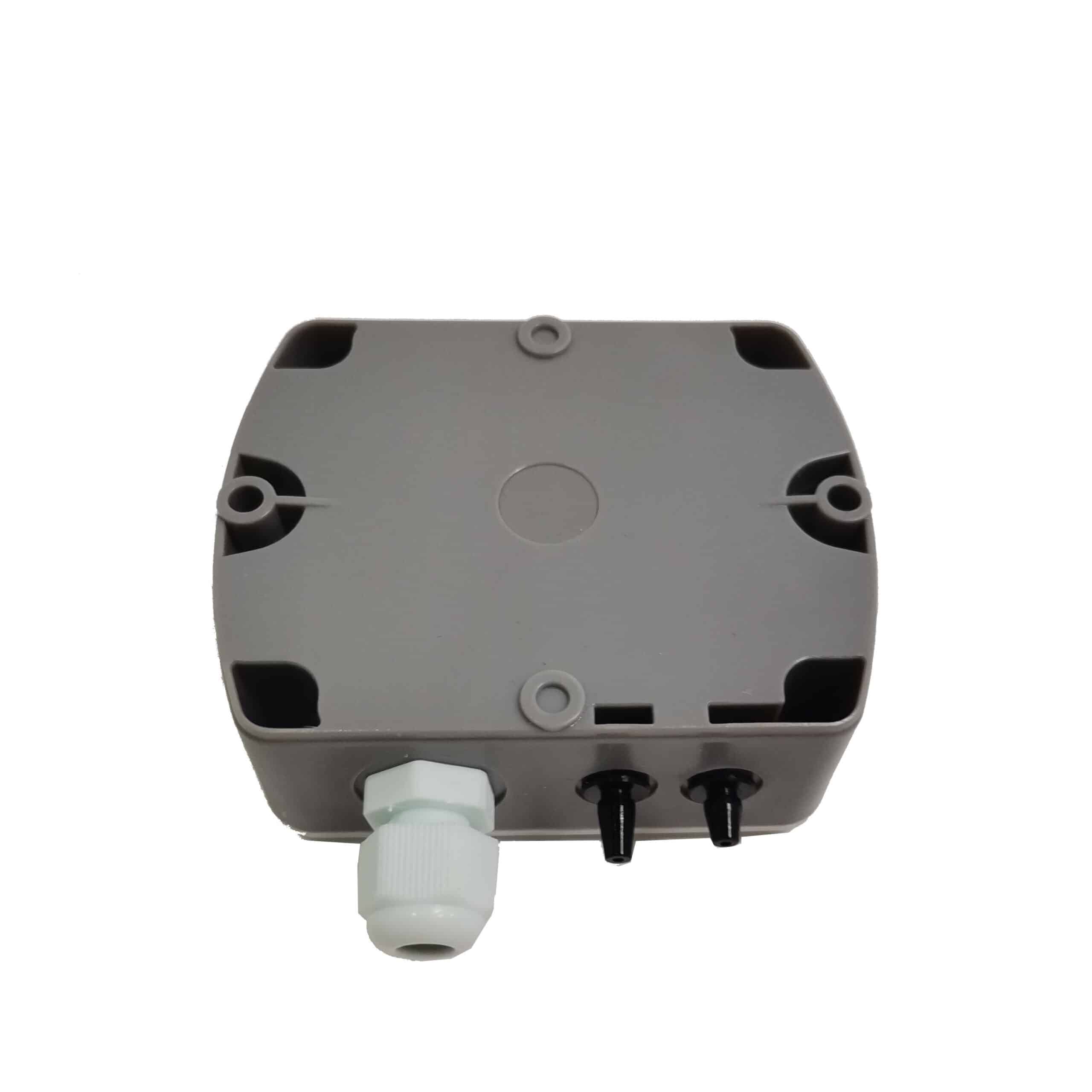

DP-25 Differential Pressure Transmitter

1,000.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Details

DP-25 Differential Pressure Transmitter

OVERVIEW

The DP-25 differential pressure transmitter can quickly measure the differential pressure of air or non-corrosive gases and display the differential pressure digitally with a 4-bit LCD liquid crystal. The instrument selects TE (Tyco) high-precision differential pressure sensor, a variety of range specifications are optional, and with advanced circuit design and structure design, stable and reliable quality, high test accuracy, clear display numbers, easy to use, can be widely used in electronics, pharmaceutical, biotechnology, aerospace and other production, scientific research departments, It is an ideal instrument for pharmaceutical enterprises and quality supervision departments to implement GMP standards and strengthen production environment management.

FEATURE

●Reasonable structure design, compact size, and convenient installation.

●RS485, 4-20mA, 0-5V or 0-10V multiple output options.

●According to customer-specified requirements customized range, flexible and convenient.

●Anti vibration, low drift.

●4 LCD liquid crystal display, intuitive reading, clear.

●The site can directly adjust the zero.

●Add complex filtering algorithm, the degree is more stable.

●Standard MODBUS RTU 485.

●Meets the GMP standards for clean rooms and the EU and FDA standards.

Parameter

Range	Accuracy	Pressure	Resolution
0-±125Pa	±0.6Pa	100psi	0.1Pa
0-±250Pa	±1Pa	100psi	0.1Pa
0-±500Pa	±1.25Pa	100psi	0.1Pa
0- 1000Pa	±2.5Pa	100psi	1Pa
0- 2500Pa	±6.25Pa	100psi	1Pa
0- 5000Pa	±12.5Pa	100psi	1Pa

Work environment	Temp:-10～50℃	Humidity:≤85%RH
Output load	Voltage type output is more than 1000Ω, current type output is less than 500Ω
Measurement medium	Air or neutral gas
Size	90×90×30 (mm)
Protect level	IP65
Power	DC12～24V/100mA

Application

It can be widely used in electronics, pharmaceutical, biotechnology, aerospace and other production, scientific research departments, It is an ideal instrument for pharmaceutical enterprises and quality supervision departments to implement GMP standards and strengthen production environment management.
