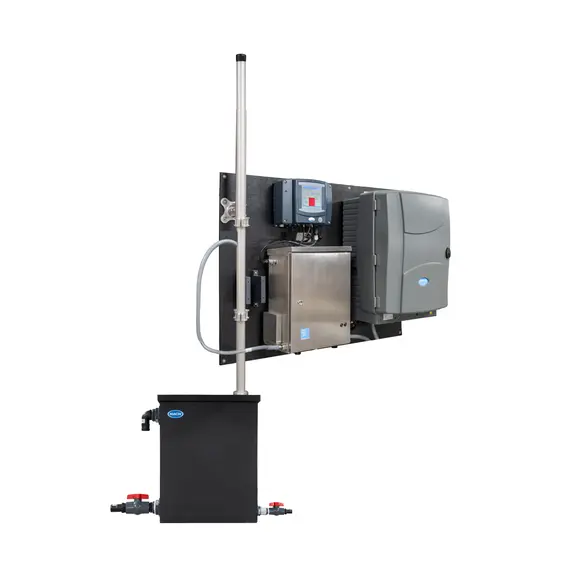

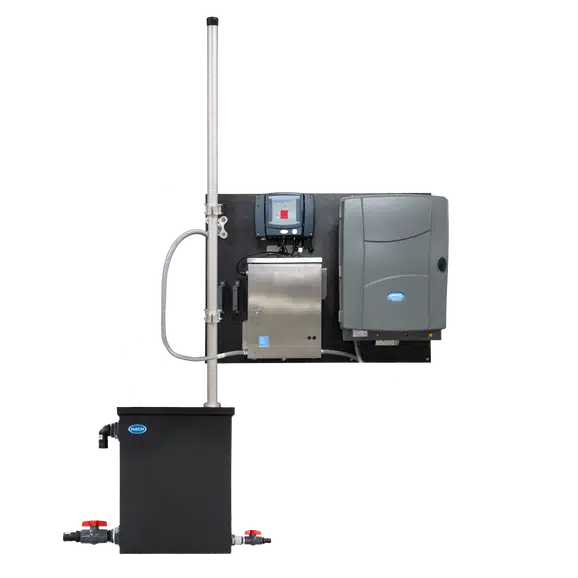

Dual Parameter Monitoring Panel with SC1000, Phosphax and Filtrax
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Expertise + Simplicity
The Phosphax Panel combines the Phosphax, Filtrax, and SC1000 Controller into one convenient, pre-engineered solution. Ready to install straight out of the box, this versatile panel is engineered for both indoor and outdoor use. It ensures compliance with evolving nutrient regulations, making it a complete package for efficient and effective phosphorus management. Save time and enhance quality with this all-in-one panel configuration, fully supported by Hach® for a comprehensive solution.
Applications:
- Industrial Wastewater
- Municipal Water
- Nutrient Monitoring
- Primary Treatment
- Secondary Treatment
- Tertiary Treatment
Benefits
Quality from start to finish
Our panel configurations allows you to maximize the inherent quality of the instruments, providing peace of mind while leveraging Hach’s 100 years of water quality innovations.
Up and running in no time
Our preassembled, ready-to-use solutions streamline the process between purchasing and startup.
Ease of installation
When you buy a water quality monitoring station from Hach, you’ll receive an expertly designed, preassembled panel that makes installation straightforward and user friendly.
Specifications
Technical Attributes

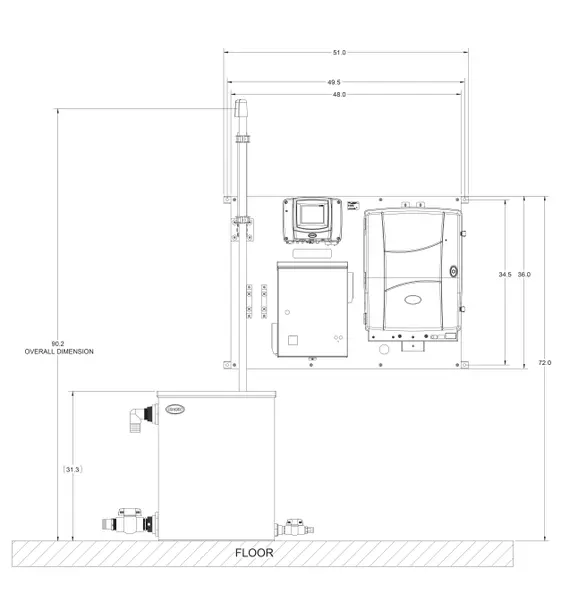

| Dimensions | Panel: 129.5 x 91.4 x 45.7 cm (51 x 36 x 18 inch) Tank: 61.6 x 79.5 x 22.2 cm (24.25 x 31.30 x 8.75 inch) |
| Drain | Sample wast drain connection: 2-inch ID hose barb |
| Power | SC1000 Controller: 100 – 240 (±10) VAC, 50/60 Hz; max. 1000 VA Filtrax: 115 (±10) VAC, 50/60 Hz, max. 2100 VA Phosphax sc: 115 – 230 VAC, 500 VA, 4.35 A |
| Sample Flow Rate | Through tank assembly: 40.0 L/min. (10.6 gal/min.) max. |
| Sample Inlet Connection | Sample Inlet connection: 1-inch ID hose barb |
| Weight | 101 kg (222 lbs.) with installed reagents, Filtrax system and optional Solitax sensor; 68 kg (150 lbs.) without reagents, Filtrax system and optional Solitax sensor. |
| What’s included? | SC1000 Probe Module, 6 Sensor Connectors, 4 mA Output, 4 mA/digital Input, Prognosys, 4 Relays, 100 – 240 VAC, with US plug (LXV400.99.5U582) Filtrax Control Module, 115 VAC (LXV294.54.00000) Phosphax sc LR outdoor, 110 – 230 VAC, 1 channel, continuous sample prep. (EN) (LXV422.53.33001) |
