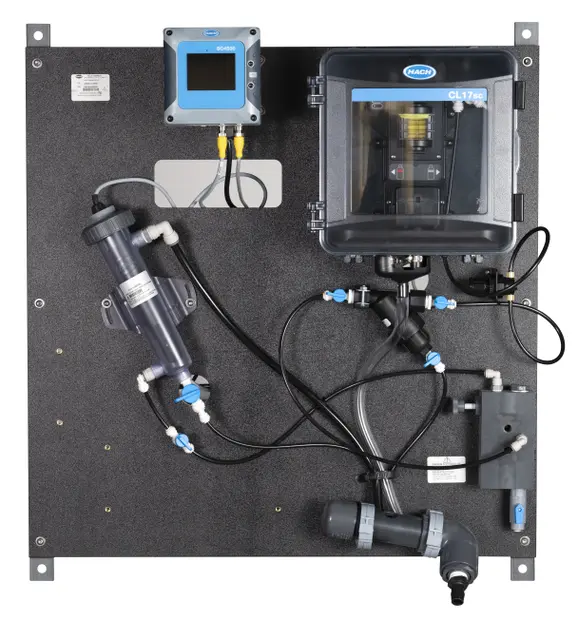

Dual Parameter Monitoring Panel with SC4500, CL17sc and digital pH Sensor
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Expertise + Simplicity
The Dual Parameter Chlorine panels offers CL17sc chlorine analyzer, Digital pH sensor and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install and simple solutions that are designed to work together.
Applications:
- Municipal Water
Benefits
Quality from start to finish
Our panel configurations allow you to maximize the inherent quality of the instruments, providing peace of mind while leveraging Hach’s 100 years of water quality innovations.
Up and running in no time
Our preassembled, ready-to-use solutions streamline the process between purchasing and startup.
Ease of installation
When you buy a water quality monitoring station from Hach, you’ll receive an expertly designed, preassembled panel that makes installation straightforward and user friendly.
Specifications
Technical Attributes
| Accuracy | ± 5% or ± 0.04 mg/L (whichever is greater) from 0 – 5 mg/L Cl₂ ± 10% from 5 – 10 mg/L Cl₂ |
| Air Purge | Optional with 3/8-inch quick-connect fitting and tubing; 0.003 m3/min at 1.38 bar (20 psig) maximum |
| Alerts | Low and high chlorine. Dirty cell. Low and high sample flow. |
| Certifications | CE compliant with: EN 61326-1, CISPR 11, EN 50581 ACMA RCM South Korea KC Certificate North America: FCC Supplier’s Declaration of Conformance, IEC/EN 60529, ICES-003 |
| Controller | SC4500 |
| Controller Compatibility | SC200, SC1000, SC4500. All controllers sold separately |
| Cycle Time | 2.5 minutes |
| Dimensions | 32″ x 35″ x 11.5” (WxHxD) |
| Dimensions (H x W x D) | 342 mm x 329 mm x 177 mm |
| Drain | ½-inch ID flexible hose |
| Enclosure Rating | IP66 |
| Inlet | ¼-inch OD polyethylene tube, quick-disconnect fitting |
| Inlet Pressure | 0.3 – 5.2 bar (4.5 – 75 psig) supplied to Y-strainer 0.1 – 0.3 bar (1.5 – 5 psig) supplied to analyzer |
| Installation Kit | Pressure Regulator Installation Kit |
| Interferences | Other oxidizing agents such as bromide, chlorine dioxide, permanganate, and ozone will cause a positive interference. Hardness must not exceed 1,000 mg/L CaCO₃. |
| Light Source | LED, measurement at 510 nm, 1 cm light pathlength |
| Lower Limit of Detection (LOD) | 0.03 mg/L |
| Mounting | Wall or rack |
| Operating Humidity | 0 – 90% relative humidity, non-condensing |
| Operating Temperature Range | 5 – 40 °C (41 – 104 °F) |
| Panel | Yes |
| Parameter | Chlorine, pH |
| Power Requirements (Voltage) | 100-240 VAC ±10%, 50/60 Hz; 1 A |
| Process Connection | Sample Inlet ¼” OD tubing Sample Drain ¾” ID tubing |
| Range | CL17sc 0 -10 mg/L Cl₂ pHD -2.0 – 14.0 pH |
| Range | 0 – 10 mg/L free or total residual chlorine |
| Reagent Consumption | 0.5 L of buffer solution and 0.5 L of indicator solution in 31 days |
| Sample Flow Rate | 100 – 1000 mL/min; optimal flow rate: 200 – 500 mL/min |
| Sample Pressure | 0.3 – 5.2 bar (4.5 – 75 psi) |
| Sample Requirements | Y-strainer filtration with 40-mesh screen or higher |
| Sample Temperature | 5 – 40 °C (41 – 104 °F) |
| Sensors | CL17sc pHD |
| Solution Type | Drinking water, raw and treated |
| Weight | 40 lbs |
| What’s included? | SC4500 Controller, Claros-enabled, 5x mA Output, 2 digital Sensors, 100-240 VAC, US plug (LXV525.99EA1551) CL17sc Colorimetric Chlorine Analyser with Pressure Regulator Installation Kit, without Reagents (8572400) Digital pH Sensor, PPS, Water Distribution Monitoring Panel Mounting (DPD1R1-WDMP) User manual |
