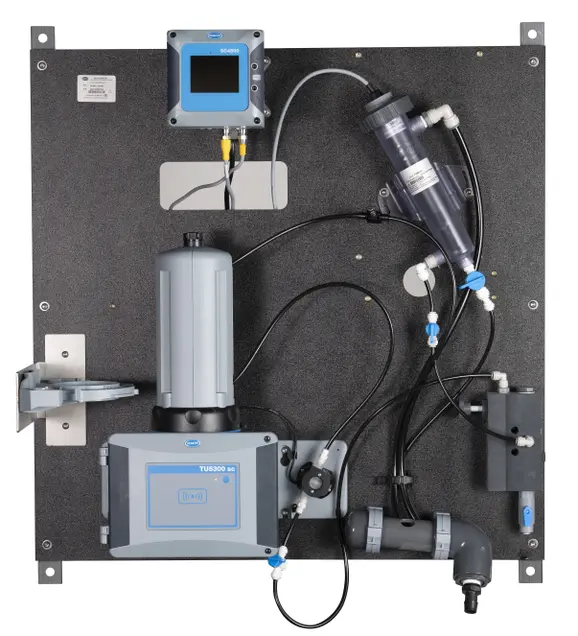

Dual Parameter Monitoring Panel with SC4500, TU5300sc and digital pH Sensor
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Expertise + Simplicity
The Dual Parameter Turbidity panels offer TU5 Series TU5300sc Low Range Laser Turbidimeter, Digital pH Sensor and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install, simple solutions that are designed to work together.
Applications:
- Municipal Water
Benefits
Quality from start to finish
Our panel configurations allow you to maximize the inherent quality of the instruments, providing peace of mind while leveraging Hach’s 100 years of water quality innovations.
Up and running in no time
Our preassembled, ready-to-use solutions streamline the process between purchasing and startup.
Ease of installation
When you buy a water quality monitoring station from Hach, you’ll receive an expertly designed, preassembled panel that makes installation straightforward and user friendly.
No surprises
Prognosys™ monitors your TU5 Series online instrument, proactively alerting you to maintenance needs before your measurement becomes questionable. And a Hach Service Agreement protects your investment and helps ensure that you stay in compliance and on budget.
Specifications
Technical Attributes
| Cable Length | 1.6 m (5.25 ft), extendable up to 50 m (164 ft) for instrument without accessories |
| Calibration Method | For Formazin and Stablcal: 20 NTU from 0 to 40 NTU; at 20 FNU and 600 NTU for full range Custom calibration for up to 6-point calibrations |
| Certifications | CE compliant US FDA accession number: 1420493-000 EPA version, 1420492-000 ISO version Complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50) Australian ACMA Marking |
| Controller | SC4500 |

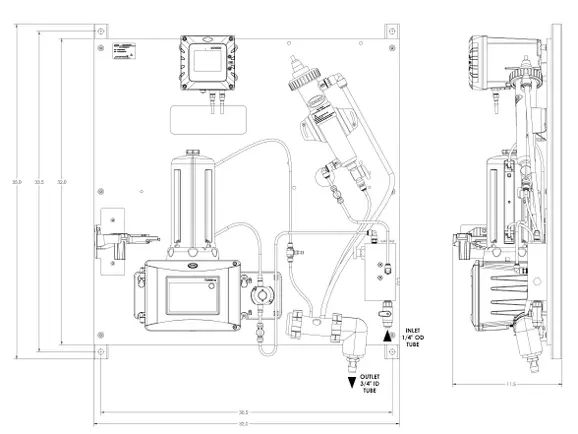

| Dimensions | 32.0″ x 35.0″ x 11.5” (WxHxD) |
| Dimensions (H x W x D) | 249 mm x 268 mm x 190 mm |
| Fitting Type | Sample quick connector: ¼-in. for ¼-in. tubing |
| Instrument | With Flow Sensor |
| Light Source | Class 2 laser product, with embedded 650 nm (EPA 0.43 mW) or Class 1 laser product, with embedded 850 nm (ISO), max. 0.55 mW (complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50) |
| Material | ASA Luran S 777K / RAL7000, TPE RESIN Elastocon® STK40, Thermoplastic Elastomer TPS-SEBS |
| Mounting | Wall or rack |
| Mounting Configurations | Wall Mount |
| Operating Humidity | Relative humidity: 5 – 95% at different temperatures, non-condensing |
| Panel | Yes |
| Parameter | Turbidity, pH |
| Power Requirements (Voltage) | 100-240 VAC ±10%, 50/60 Hz; 1 A |
| Process Connection | Sample Inlet ¼” OD tubing Sample Drain ¾” ID tubing |
| Range | TU5300sc 0 – 700 NTU / FNU / TE/F / FTU pHD -2.0 – 14.0 pH |
| Regulatory | EPA |
| Sample Flow Rate | 100 – 1000 mL/min; optimal flow rate: 200 – 500 mL/min |
| Sample Pressure | 0.3 – 5.2 bar (4.5 – 75 psi) |
| Sample Temperature | 5 – 40 °C (41 – 104 °F) |
| Sensors | TU5300sc pHD |
| Solution Type | Drinking water, raw and treated |
| Storage Conditions | -40 to 60 °C (-40 to 140 °F) |
| Stray Light | <10 mNTU |
| System Check | Yes |
| Units | NTU, FNU, TE/F, FTU, EBC |
| Verification | Liquid: Stablcal®, Formazin (0.1 to 40 NTU) Dry: Glass Rod at <0.1 NTU |
| Weight | 42.5 lbs |
| What’s included? | SC4500 Controller, Claros-enabled, 5x mA Output, 2 digital Sensors, 100-240 VAC, US plug (LXV525.99EA1551) Flow Sensor for TU5300sc and TU5400sc Laser Turbidimeter (LQV160.99.00002) Digital pH Sensor, PPS, Water Distribution Monitoring Panel Mounting (DPD1R1-WDMP) User manual |
