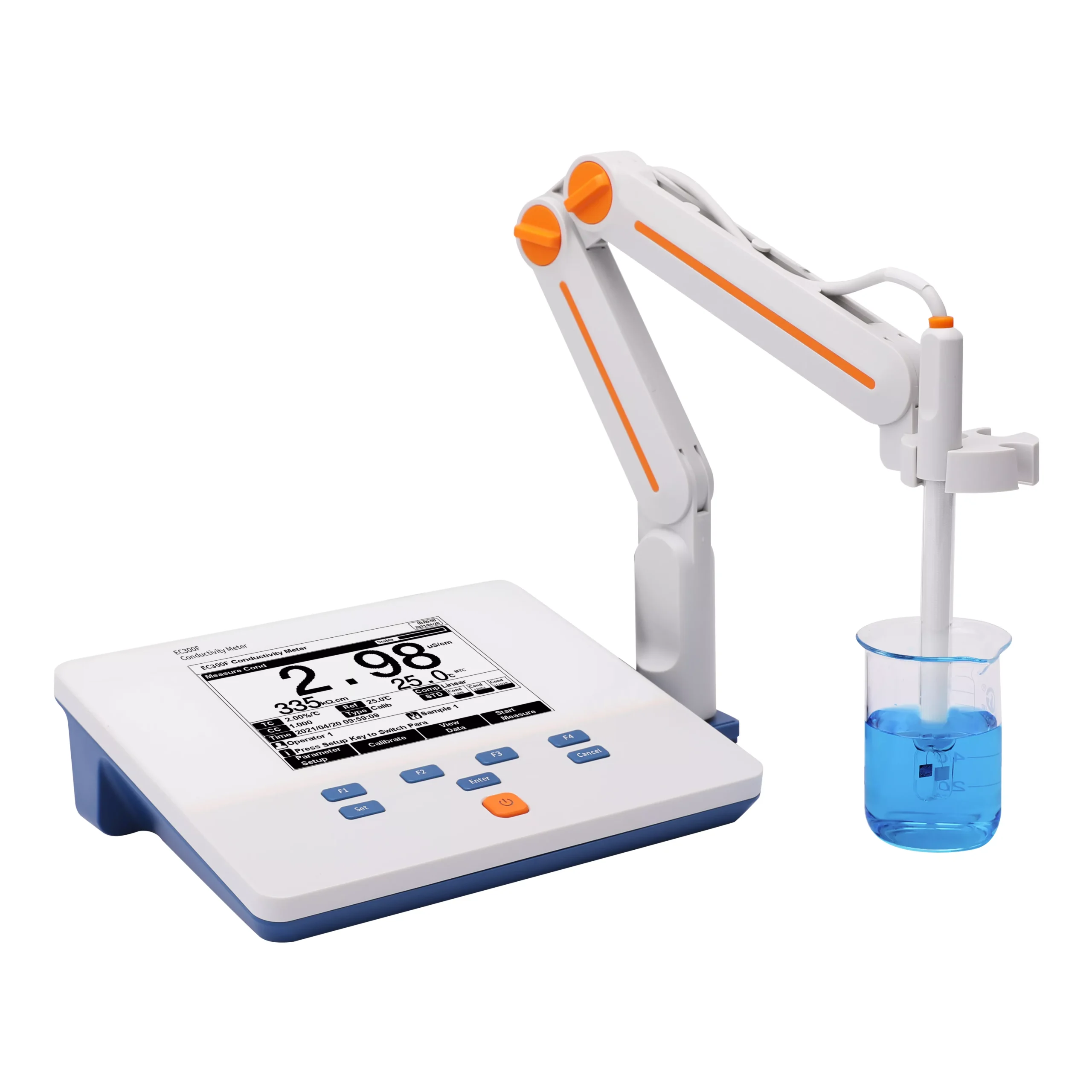

EC300F Benchtop Conductivity Meter

500.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Description

EC300F

● High resolution LCD display, 5.7 inches.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data Storage 500 sets (GLP-compliant).

● Support for USB or RS-232 communication.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.

● 1-3 points calibration with Standard Recognition.

● Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.

● Temperature compensation type (none, linear, pure water).

Specification

Model EC300F
Parameters EC/Temp.(Resistivity/TDS/Sal.)
        Conductivity Range 0.000 μ S/cm to 1000 mS/cm
Resolution 0.001 μ S/cm minimum,

various with range selection

Accuracy ± 1.0% FS
Reference Temperature 20, 25 ºC
Calibration Points Up to 3
Standard Recognition 84 μ S/cm, 1413 μ S/cm, 12.88mS/cm
Resistivity Range 5.00 Ω ·cm~20.00 M Ω ·cm
Resolution 0.01 Ω ·cm minimum
Accuracy ± 1.0% FS
TDS Range 0.00mg/L~300g/L
Resolution 0.01mg/L minimum, various with range selection
Accuracy ± 1.0% FS
Salinity Range (0.00~8.00)%
Resolution 0.01%
Accuracy ± 0.2%
        Temperature Range -5.0 to 110 ºC, 23.0 to 230 ºF
Unit ºC, ºF
Resolution 0.1
Accuracy ± 0.2
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 500 results each
GLP Features Yes
Inputs Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB USB 2.0 flash memory device, PC
RS 232 printer
        Display options Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Power AC Adapter, 100-240V AC input, DC9V output
Dimensions 242 × 195 × 68 mm
Weight 900g (1.98 lb)
