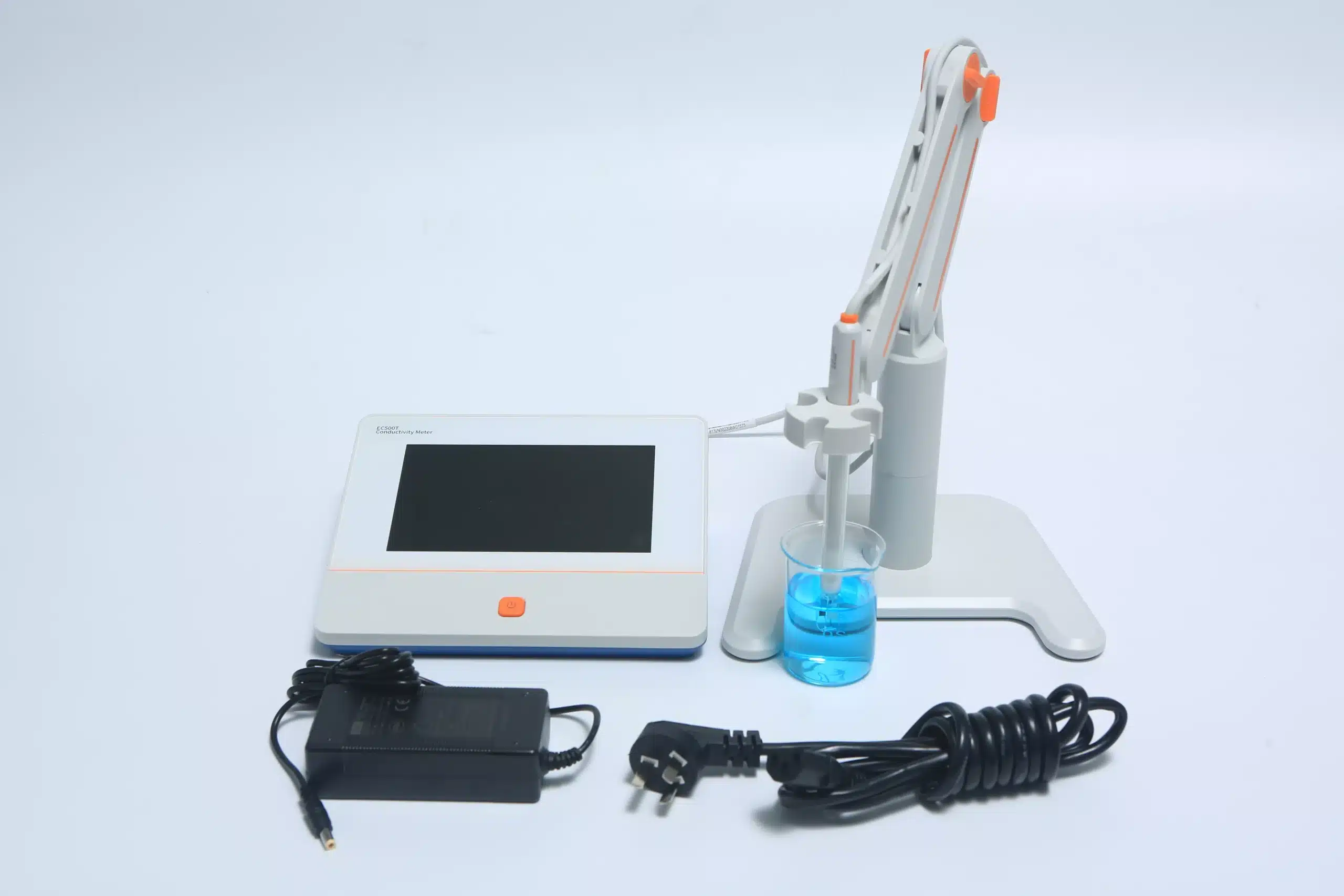

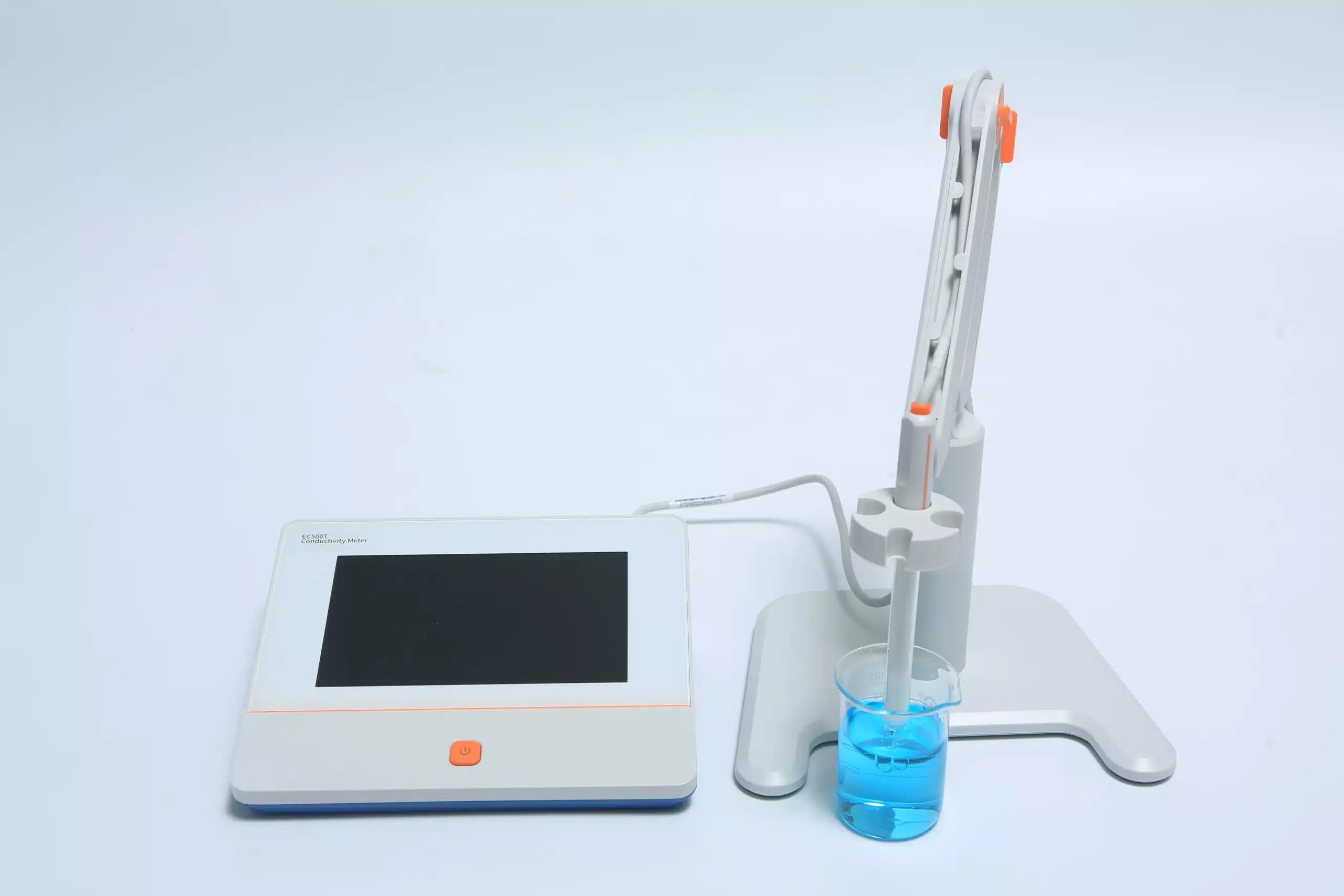

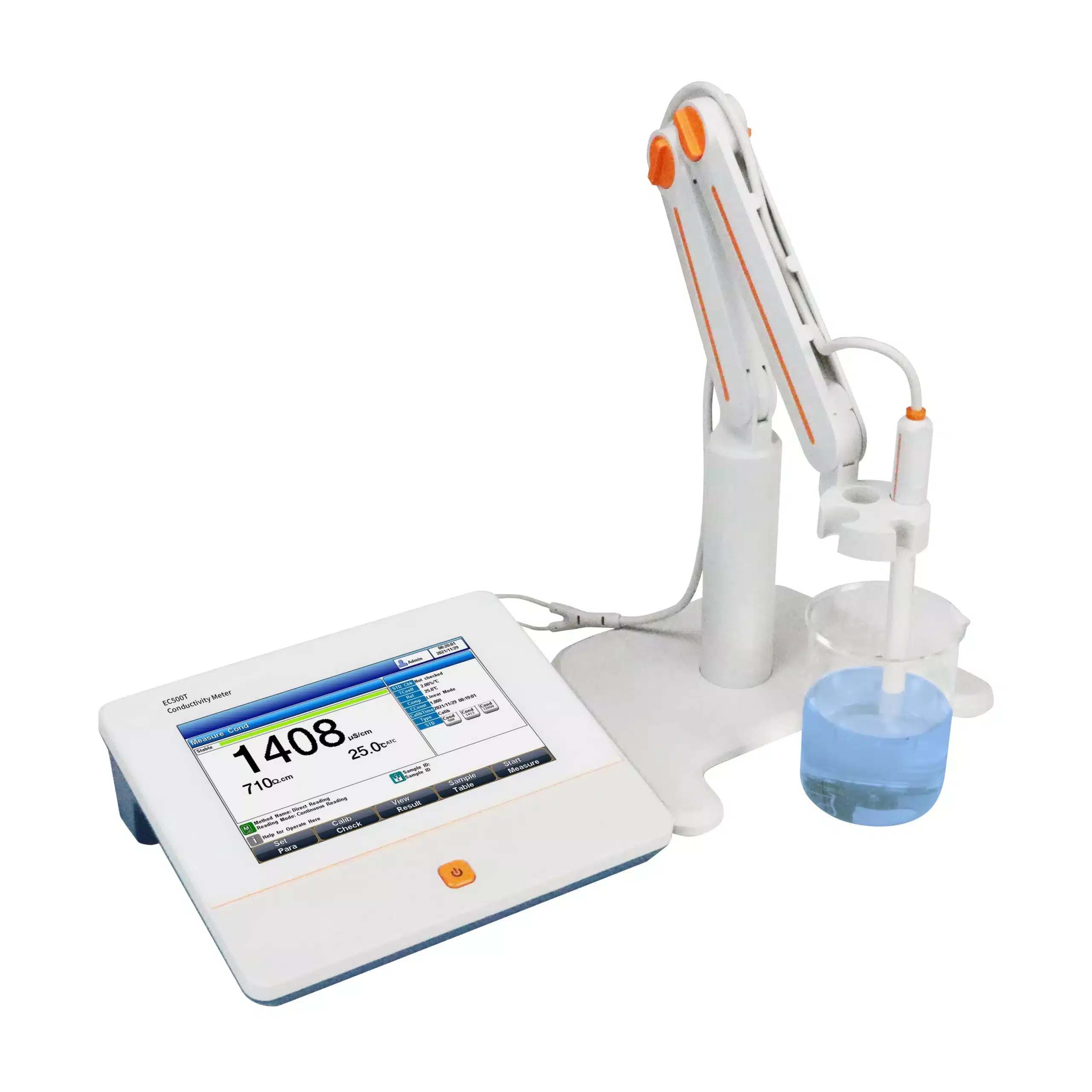

EC500T Benchtop Conductivity Meter

500.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Description

EC500T

● Color High contrast LCD touchscreen, 7.0 inches.

● Intelligent operation system provides features including user management, calibration management, method management, data management and etc.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Data Storage 1000 sets for each parameter (GLP-compliant).

● Data analysis feature helps user review, compare and recalculate results.

● Support for USB or RS-232 communication.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.

● 1-5 points calibration with Standard Recognition.

● Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.

● Temperature compensation type (none, linear, pure water)

Specification

Model EC500T
Parameters EC/Temp.(Resistivity/TDS/Sal.)
        Conductivity Range 0.000 μ S/cm to 2000 mS/cm
Resolution 0.001 μ S/cm minimum, various with range selection
Accuracy ± 0.5% FS
Reference Temperature 5, 10, 15, 18, 20, 25 ºC
Calibration Points Up to 5
Calibration Reminder Yes
Standard Recognition 10 μ S/cm, 84 μ S/cm, 500 μ S/cm, 1413 μ S/cm, 12.88 mS/cm
Resistivity Range 5.00 Ω ·cm~100.00 M Ω ·cm
Resolution 0.01 Ω ·cm minimum
Accuracy ± 0.5% FS
TDS Range 0.000~1000 ppt
Resolution 0.001 ppm minimum, changed with range
Accuracy ± 0.5%FS


Salinity

Type NaCl%
Range (0.00~8.00)%
Resolution 0.01%
Accuracy ± 0. 1%
         Temperature Range – 10 to 135 ºC, 14 to 275 ºF
Unit ºC, ºF
Resolution 0.1
Accuracy ± 0. 1
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Log Management Yes
Inputs Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB USB 2.0 flash memory device, PC
RS 232 printer, scanner, auto-sampler
         Display options Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Power AC Adapter, 100-240V AC input, DC24V output
Dimensions 220 × 195 × 68 mm
Weight 950g (2.09 lb)
