Electro Servo Hydraulic Universal Testing Machines Class 0.5/1 200KN – 2000KN
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | WAW |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Universal Testing Machine | Standard: | ISO 6935-2-1029 |
|---|---|---|---|
| Testing Force: | 200KN To 2000KN | Clamping Range: | 6-65mm |
| Tensile Space: | 650-1300mm | Compression Space: | 500-1000 |
| High Light: |
200KN Hydraulic Universal Testing Machines, 2000KN Universal Testing Machines, SAMYON Universal Test Machines |
||

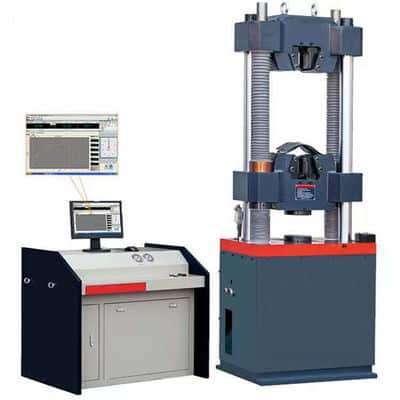

WAW Class 0.5/1 Computer-control electro hydraulic servo universal testing machine
Application:
This product is mainly used for the compression testing for concrete specimen and the tensile test of metal material and component, testing the tensile strength, yield strength, elasticity modulus, percentage elongation after fracture and other mechanical performance index. It is with Hydraulic wedge clamping. For the fixtures, it can be produced according to customers’ standard requirement and drawing. And the loading speed is also adjustable according to different standard requirement. .
Standard:
BS EN ISO 898-1-2013, BS EN ISO 898-2-2012, ISO 7438-2020, ISO 6935-2-1029, BS EN ISO 15630-1-2019, GB/T 232-2010, GB/T 3098.2-2015, GB/T 3098.1-2010, GB/T 1499.2-2018
Parameters:
| Model | WAW-
2000D |
WAW-
1000D |
WAW-
600D |
WAW-
600B |
WAW-
300B |
WAW-
100B |
| Max test force | 2000KN | 1000KN | 600KN | 600KN | 300KN | 100KN |
| Accuracy | Class 0.5/1 | |||||
| Testing force range | 2% ~ 100% FS | |||||
| Indicating value relative error | +/-0.5% / +/-1% | |||||
| Resolution | 1/500000FS | |||||
| Stress Rate control range | 1MPa/s ~ 60MPa/s | |||||
| Stress Rate control accuracy | +/-1% / +/-2% | |||||
| Deformation resolution(mm) | 0.001 | |||||
| Strain rate control range | 0.00025/s ~ 0.0025/s | |||||
| Strain rate control accuracy | +/-1% / +/-2% | |||||
| Displacement resolution(mm) | 0.001 | |||||
| Displacement rate control range | 0.00025/s ~ 0.0025/s | |||||
| Displacement rate control accuracy | +/-0.5% / +/-1% | |||||
| Stress/Strain/Displacement holding control range | 0.3% ~ 100% FS | |||||
| Stress/Strain/Displacement holding control accuracy | +/-1% | |||||
| Tensile space(mm) | 1300 | 700 | 650 | 650 | 650 | 650 |
| Compression space(mm) | 1000 | 550 | 550 | 550 | 500 | 500 |
| Column space(mm) | 760 | 580 | 480 | 430 | 430 | 430 |
| Clamping range of round specimen(mm) | φ20 ~ φ65 | φ6 ~ φ45 | φ6 ~ φ40 | φ6 ~ φ40 | φ6 ~ φ26 | φ6 ~ φ26 |
| Clamping thickness of flat specimen(mm) | 0-50 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
| Max clamping width of flat specimen(mm) | 140 | 75 | 75 | 75 | 75 | 75 |
| Pressure plate size(mm) | φ300 | φ155 | φ155 | φ155 | φ155 | φ155 |
| Overall dimension of the host machine(mm) | 1200*800
*3300 |
910*830
*2300 |
840*700
*2200 |
740*590
*2150 |
740*590
*2150 |
740*590
*2150 |
| Oil source console size | 1150*800*1000 | |||||
| Total motor power(KW) | 4 | 2 | 2 | 2 | 1.5 | 1.5 |
| Total weight(kg) | 9000 | 3200 | 2300 | 2000 | 1600 | 1600 |
Features:
1. Famous brand sensor configuration(sensor of Class 0.5 is from world famous brand, while sensor of Class 1 is from domestic famous brand) to keep high precision and stability
2. The stress is ten thousandth control accuracy, with high testing rate control accuracy, conforming to the Standard of ISO 6892-1-2019
3. The software of this series of products has passed the evaluation of the National steel material testing center, the testing data can be traced to the source
4. Unit taking part in the drafting of Verification Regulation of Electro-hydraulic Servo Universal Testing machines for JJG 1063-2010
5. Gaining national patent, the servo pump device of computer-control electro-hydraulic servo universal testing machines.
6. Patent characters: high testing rate control accuracy, ultra-silence and energy conservation
