EMF100-Blue separated type
1,520.00৳

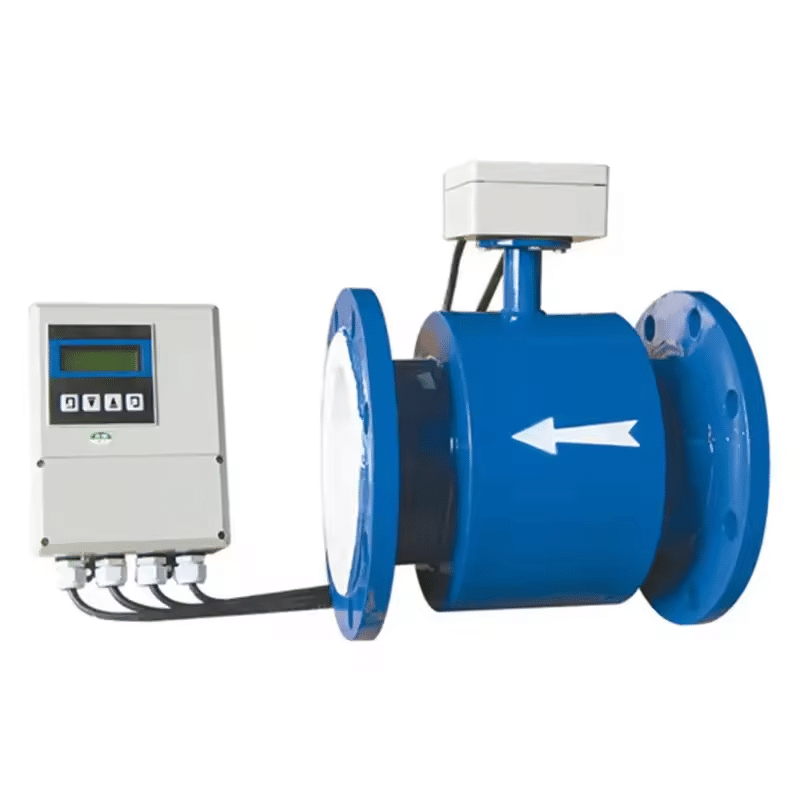

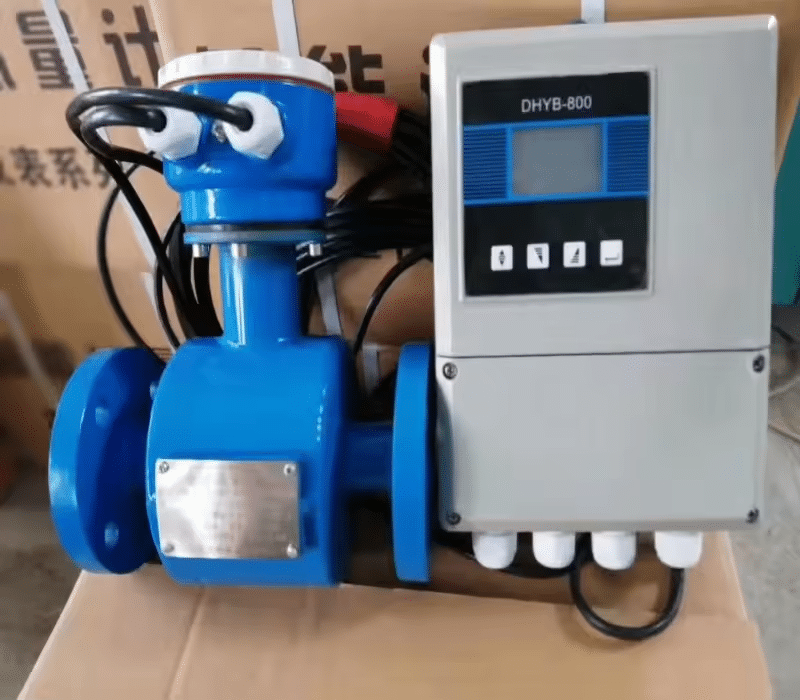

EFM100 intelligent electromagnetic flow meter is composed by sensor and transmitter.
The product is a induction instrument and operates with Faraday law of
electromagnetic induction for measurement volume flow of liquid medium with conductive rate ≥50 us/cm.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
EFM100 intelligent electromagnetic flow meter is composed by sensor and transmitter. The product is a induction instrument and operates with Faraday law of electromagnetic induction for measurement volume flow of liquid medium with conductive rate ≥50 us/cm.
1.Separated type magnetic flow meter
2.Color customization
3.GPRS intelligent
4.irrigation water、feed water、well water、cooling water
5.Meet your requirements
Product Features
1.Separated type magnetic flow meter
2.Color customization
3.GPRS intelligent
4.irrigation water、feed water、well water、cooling water
5.Meet your requirements
Product Specification
Product Dimensions
|
EMF100 Electromagnetic flow meter |
|
|
Medium |
Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc |
|
Diameter |
DN6~DN2200mm |
|
Accuracy |
±0.5% |
|
Medium temperature |
<60℃ |
|
Nominal pressure |
GB 0.6MPa (DN700~DN2000) GB 1.0MPa (DN200~DN600) GB 1.6MPa (DN6~DN150) |
|
DIN PN16,PN25,PN40,PN63 |
|
|
JIS10K,20K,40K |
|
|
ANSI Class150,Class300,Class600, others can be customized |
|
|
Flow rate |
0.3~10m/s |
|
Straight pipe required |
Upstream ≥5DN,downstream ≥3DN |
|
Electrode |
316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt) |
|
Lining material |
Chloroprene rubber(CR), polyurethane rubber(PU) |
|
Installation way |
Carbon steel flange (standard), Stainless steel flange(optional) |
|
Body material |
Carbon steel (standard),Stainless steel(optional) |
|
Power supply |
220VAC/24VDC/lithium battery |
|
Signal output |
Pulse and 4~20mA; (if use lithium battery, without signal output) |
|
Communication |
RS485,GPRS,Hart |
|
Explosion-proof |
EXdeibmIICT3-T6 |
|
Protection proof |
IP65 (compact type); IP67,IP68(suitable for remote type) |
|
Work environment |
Ambient temperature:-20~+60℃,Ambient humidity:5%~90% |
|
Power |
<20W |
