EZ9110 Heavy-duty Filtration System, pore size 50 µm

About the EZ9100 Series
The successful implementation of online analyzers in process control strategies could not have been achieved without the development of a new generation of automatic sampling and sample preconditioning systems. The EZ9100 Series are the result of many years of field experience in combining analyzers with filtration units.

Simplified operation by self-cleaning action
All preconditioning systems are designed for fully automatic operation and require virtually no human intervention. A blowback action by instrument air is incorporated in all systems. This fundamental design principle does not merely allow trouble-free sampling, moreover it contributes to high uptimes.

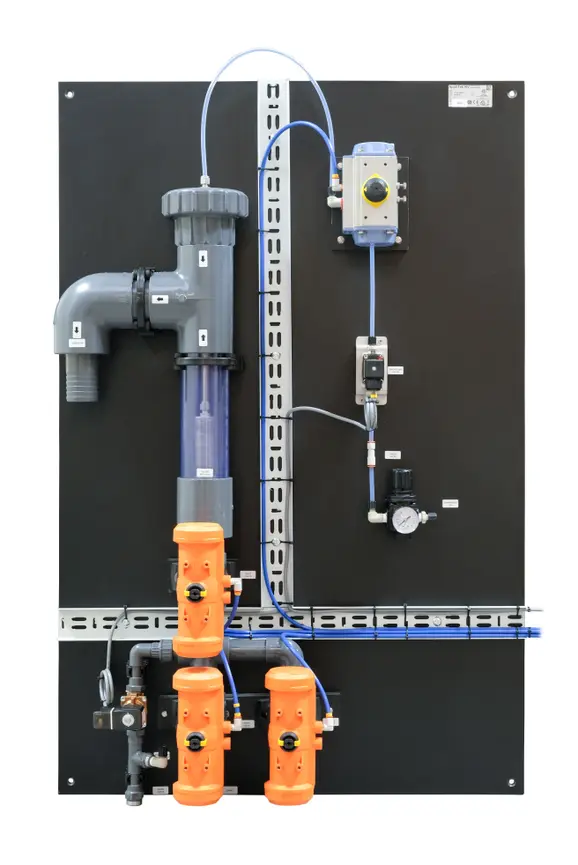

The EZ9110 is a filtration system developed to make solid-free samples from heavily charged liquids available for online analysis. Devoid of overly complex engineering, they can handle the difficult properties of wastewaters charged with high levels of insoluble constituents:
– Self-cleaning sample filtration with various pore sizes
– Large-bore pneumatic ball valves for sample and drain
– Automatic cleaning by solenoid controlled instrument air
– Static Pressure Regulator assures a constant, readily available sample level at atmospheric pressure
– PLC or analyzer controlled cleaning frequency
