FM-204-500K Digital Force Gauge 4900N Push Force and Pull Force Tester N,kg,lb
The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,
Features
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 3 measurement unit for selection and conversion, N, kg, lb.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Either alkaline battery Power supply or 6V DC power.
Specifications
| Force Range | ±500 kgf |
| ±4900 N | |
| ±1100 Lbf | |
| Resolution | 0.01 kgf ( <100 kgf )
0.1 kgf ( ≥100 kgf ) |
| 0.01 N ( <1000N )
1 N ( ≥1000 N ) |
|
| 0.1 Lbf ( < 1000 Lbf ) 1Lbf ( ≥ 1000 Lbf ) |
|
| Accuracy | ±0.5% FS±1 Digit |
| Unit | kgf, N, Lbf |
| Measurement State | Peak Value, Real Time Measurement |
| Display | 2 Reversed 4 Digit LCD |
| Power Off | 10 Mins Auto Power Off, Manual Power Off |
| Backlight | Blue Backlight |
| Safe Load | 150% FS ( Buzzer Alarm Over 110% FS ) |
| Power Supply | 2 x 1.5 AA ( UM-3 ) Battery or 6VDC Power |
| Operating | Temperature: 0 ~ 40°C |
| Conditions | Humidity: <80% |
| Surrounding | No Vibration Source or Corrosive Mwdium |
| Weight | 1165 g |
| Case Size | 175 x 80 x 36 mm |
| Senor Size | 181 x 54 x 30 mm |
Accessories
| Standard Accessories | Digital Force Gauge |
| Sensor ( M12 Screw Hole ) | |
| 2 Suspension Links | |
| Manual | |
| Carrying Case | |
| Optional Accessories | Power Adapter |

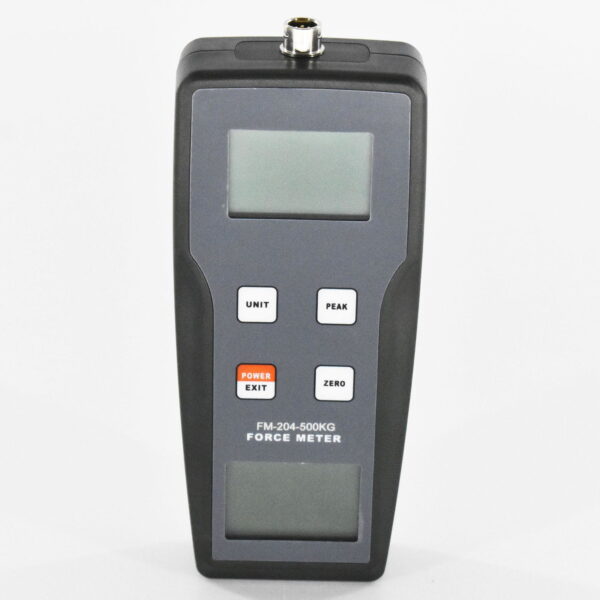

Product Image
