FM-207-1000K Push Pull Force Gauge 9800N,1000kgf,2200Lbf Tension Meter Tester
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry

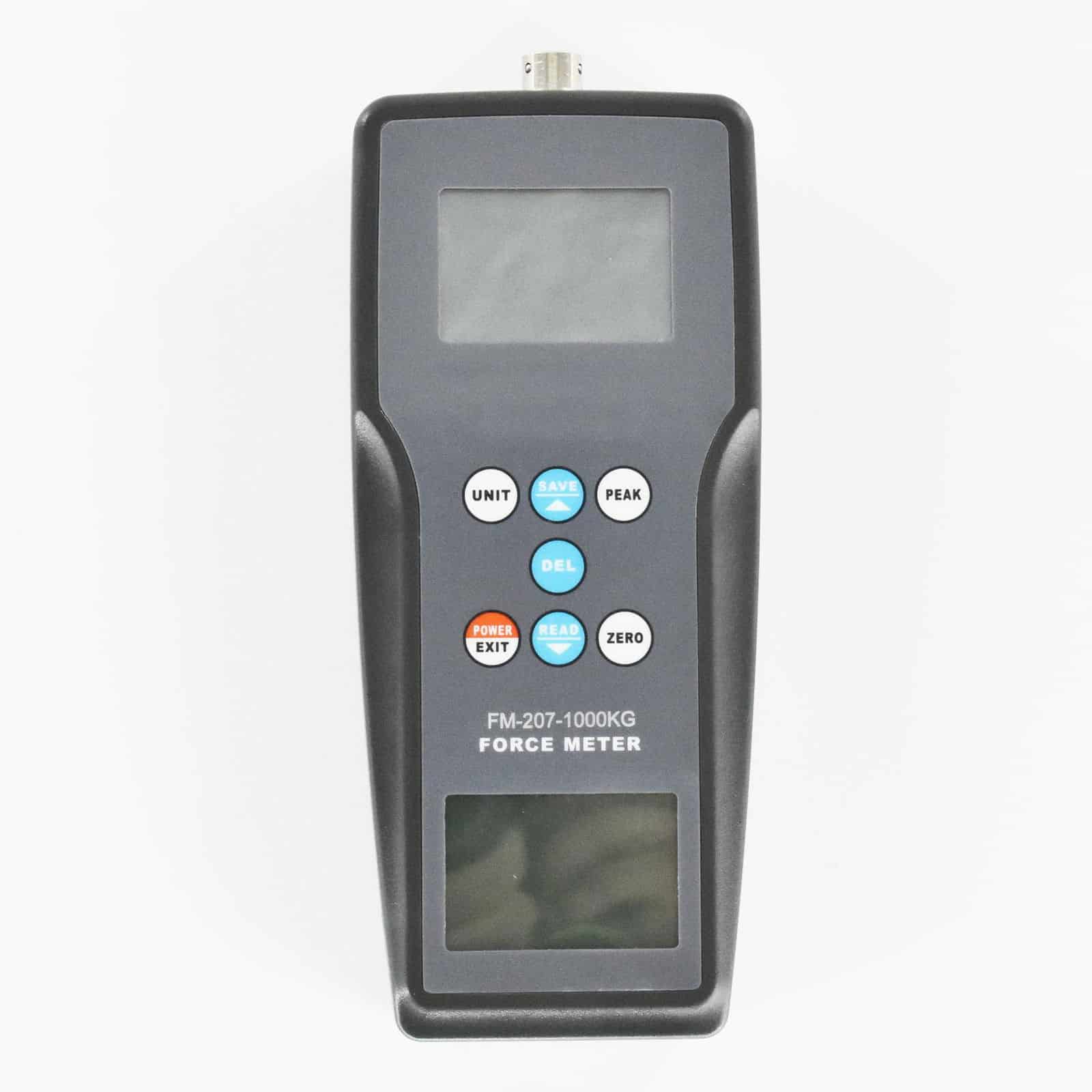

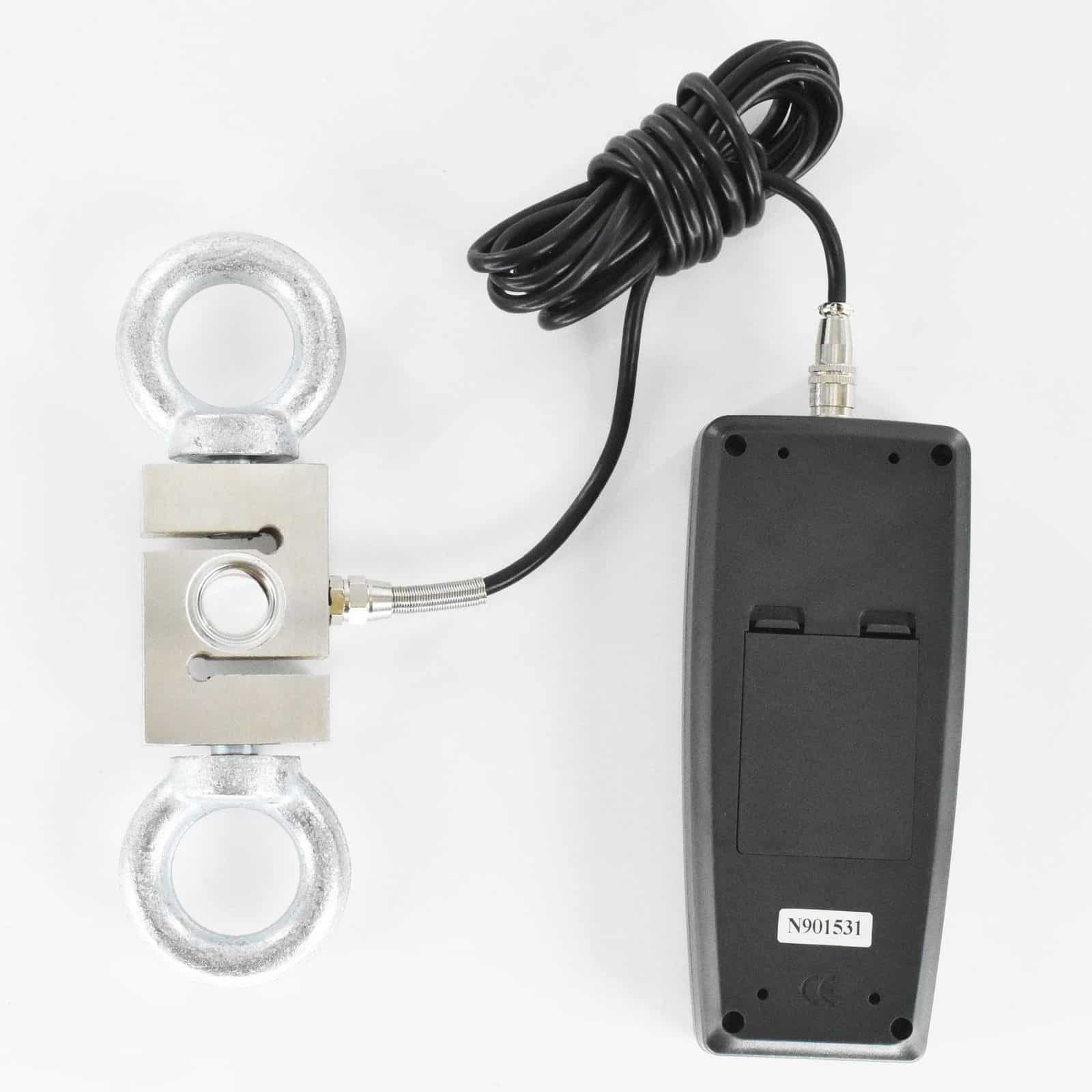

FM-207-1000K Push Pull Force Gauge 9800N,1000kgf,2200Lbf Tension Meter Tester
The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,
Features
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 3 measurement unit for selection and conversion, N, kg, lb.
* With peak value hold function.
* can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Either alkaline battery Power supply or 6V DC power.
* Use USB cable or Bluetooth adapter for data output.
Specifications
| Force Range | ±1000 kgf |
| ±9800 N | |
| ±2200 Lbf | |
| Resolution | 0.01 kgf ( <100 kgf )
0.1 kgf ( ≥100 kgf ) |
| 0.1 N ( <1000N )
1 N ( ≥1000 N ) |
|
| 0.1 Lbf ( < 1000 Lbf ) 1 Lbf ( ≥1000 Lbf ) |
|
| Accuracy | ±0.2% FS ±1 Digit |
| Unit | Kgf, N, Lbf |
| Measurement State | Peak Value Measurement, Real Time Measurement |
| Display | 2 Reversed 4 Digit LCD |
| Power Off | 10 Minutes Auto Power Off, Manual Power Off |
| Backlight | Blue Backlight |
| Safe Load | 150% FS ( Buzzer Alarm Over 110% FS ) |
| Data Output | USB, Bluetooth |
| Power Supply | 2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply |
| Operating Conditions | Temperature: 0 ~ 40°C |
| Humidity: <80% | |
| Surrounding | No Vibration Source or Corrosive Medium Around |
| Weight | 1165g |
| Case Size | 175 x 80 x36 mm |
| SenorSize | 181x54x 30mm |
Accessories
| Standard Accessories | Digital Force Gauge |

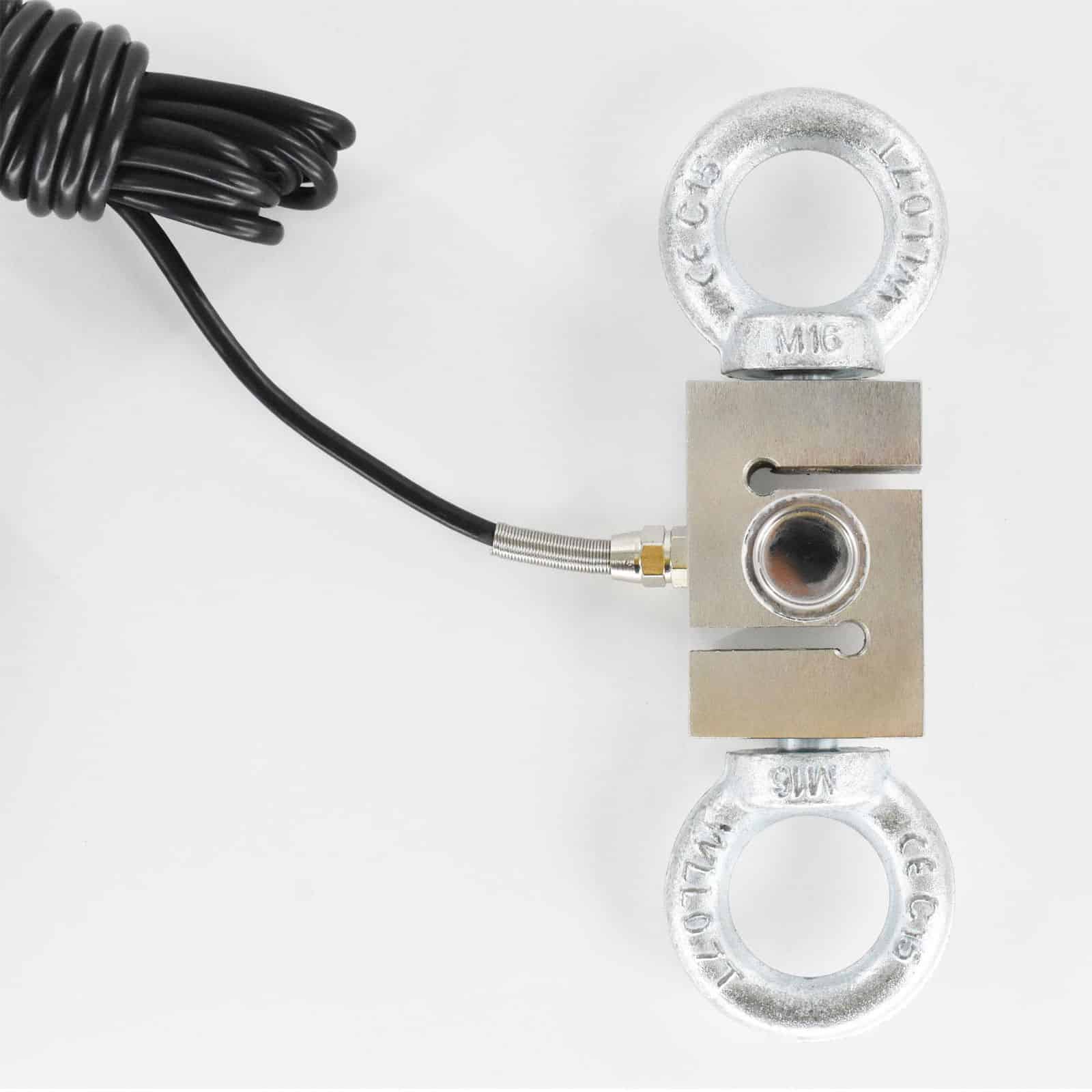

| Sensor ( M12 Screw Hole ) | |
| 2 Suspension Links | |
| Manual | |
| Carrying Case | |
| Optional Accessories | CD |
| USB Data Cable | |
| Bluetooth Adapter | |
| Power Adapter |
