Fully Automatic Cleveland Open Cup Flash Point Tester 700W With Touch Screen
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-3536D |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Cleveland Flash Point Tester | Standard: | ASTM D92 |
|---|---|---|---|
| Temp Range: | Ambient ~ 400℃ | Ignition Mode: | Electric |
| Method: | Cleveland Open Cup Method | Data Transmission: | Bluetooth |
| High Light: |
Automatic Cleveland Open Cup Flash Point Tester, 700W Cleveland Open Cup Flash Point Tester, Cleveland Open Cup Apparatus |
||

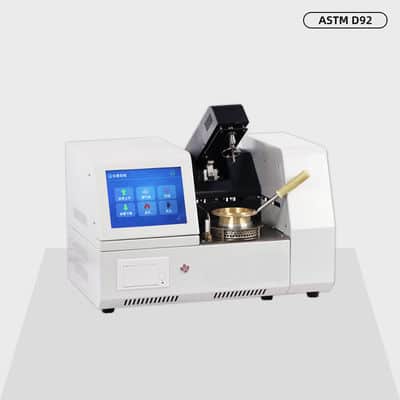

SY-3536D Fully-Automatic Touch Screen Cleveland Open-Cup Flash Point Tester
Application:
It is used to detect Flash and Fire Points by Cleveland open cup method. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
Standard:
ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester
GB/T3536-2008 Petroleum Products – Determination of Flash and Fire Points – Cleveland open cup method
Parameters:
| Item | Name | Details |
| 1 | Temperature measurement range | room temperature ~ 400℃ |
| 2 | Ignition mode | electric, igniter diameter 0.7mm ~ 0.8mm |
| 3 | Heating rate | Initial heating: (14~17)℃/min, it is (5-6)℃/ min after reaching the preset flash point 20℃ |
| 4 | Maximum power consumption | 700W |
| 5 | Accuracy | 0.1℃ |
| 6 | Fire extinguishing device | when the fire point appears, it can automatically extinguish the fire and return to its original position; it can also manually press the key to extinguish the fire |
| 7 | Data transmission mode | Bluetooth |
| 8 | Ambient temperature | (15~35)℃ |
| 9 | Relative humidity | =<85% |
| 10 | Power supply | AC220 +/-5% V, 50Hz |
| 11 | Dimension | 510mmx320mmx330mm |
Features:
1. Automatic measurement of atmospheric pressure, automatic correction of flash point value.
2. Equipped with Bluetooth interface.The user can query test data anytime.
3. It adopts an 8-inch IPS high-definition capacitive screen. Using 32-bit ARM processor and high-precision AD chip, the test data and parameters are recorded in real time and displayed by curve.
4. Electronic ignition, gas flame.
5. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.
