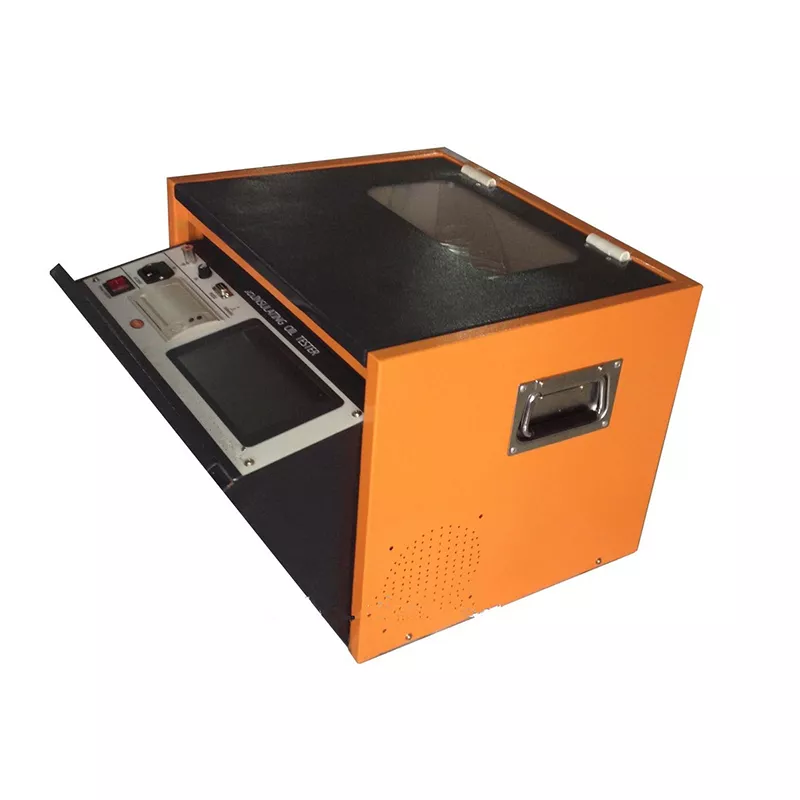

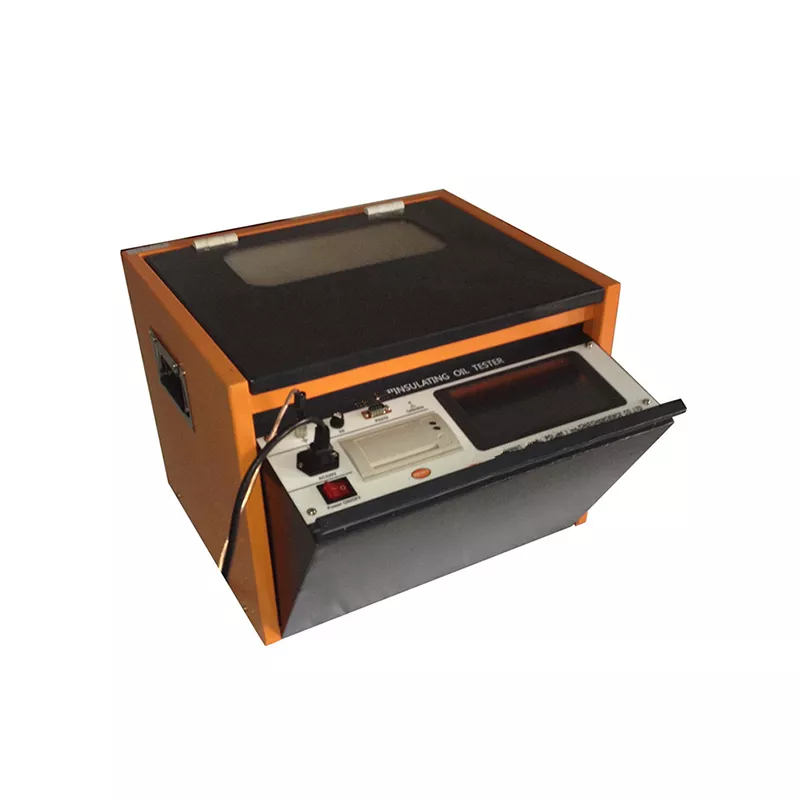

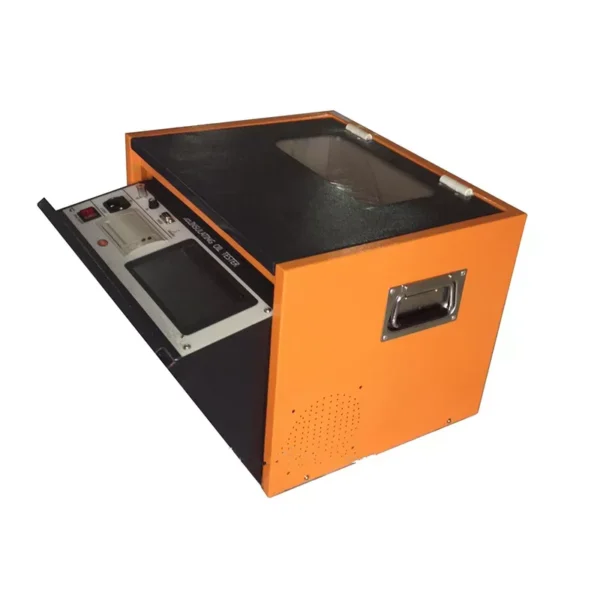

Fully Automatic Insulating Oil Dielectric Strength Tester DYT-2
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Application
DYT-2 Insulating oil tester is improved on basis of DYT. It increases temperature measurement. All the selection can be done by touch pad with color LCD.
Functions
1. Breakdown test of user-defined
2. Proof test
3. IEC156/IS6792/BS5874/
4. ASTM D1816 standard test
5. ASTM D877 standard test
6. 5 minutes standard test
7. Manual test
8. Temperature measurement
9. Calibration interface for customers
10. Unloading data to PC and making word report automatically.
11. Result printing
Technique Parameters
- Power supply: AC220V input
- Output voltage: AC 0V~100KV
- Rate of voltage rise: 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
- Max test times: 9
- Stir time: 0~999s
- Wait time: 0~999s
- Test error: 3% max in the range of 10kv~100kv
- Accuracy of temperature measurement:1ºC
- Weight 38kg
- Size: 550 mm*500mm*580mm
