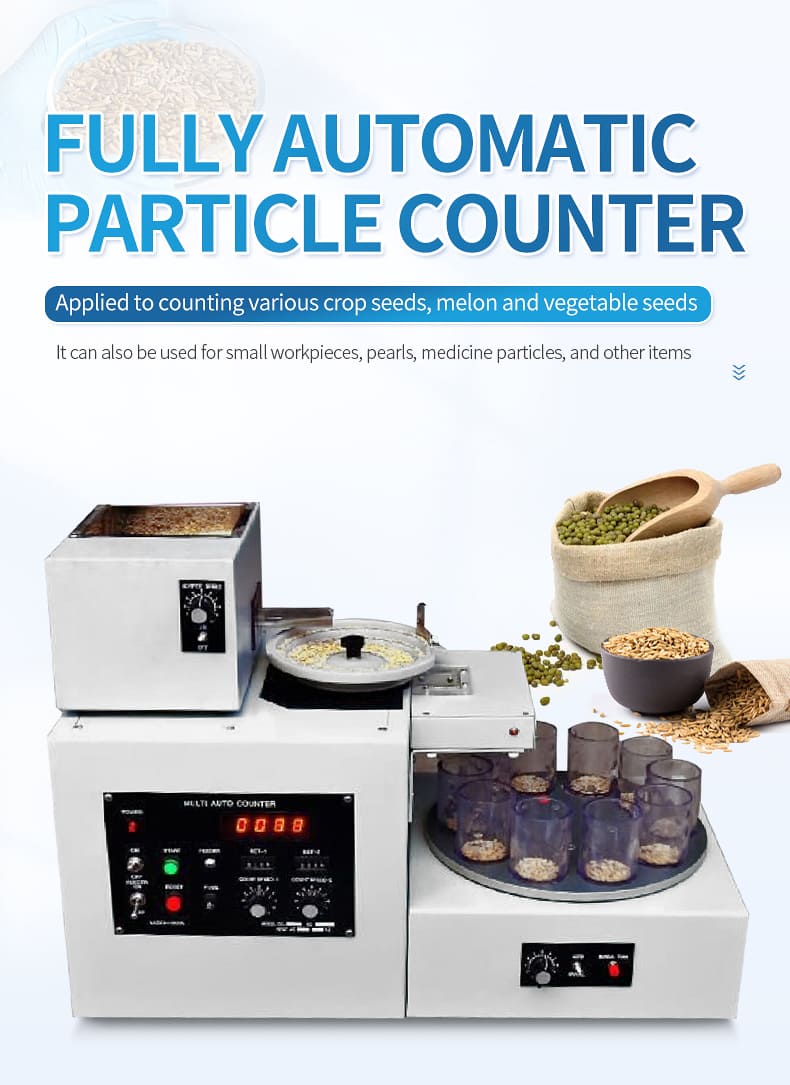

Fully automatic particle counter

Product Introduction

Hengmei brand fully automatic particle counting instrument is an economical and practical particle counting equipment developed based on the integration of international particle counting instruments such as Japan, the United States, Germany, and France, combined with China’s national conditions. It is not only widely used for counting various crop seeds, melon and vegetable seeds, but also for fast and accurate counting of small workpieces, pearls, medicinal grains, and other items. All technical indicators are at the international leading level.

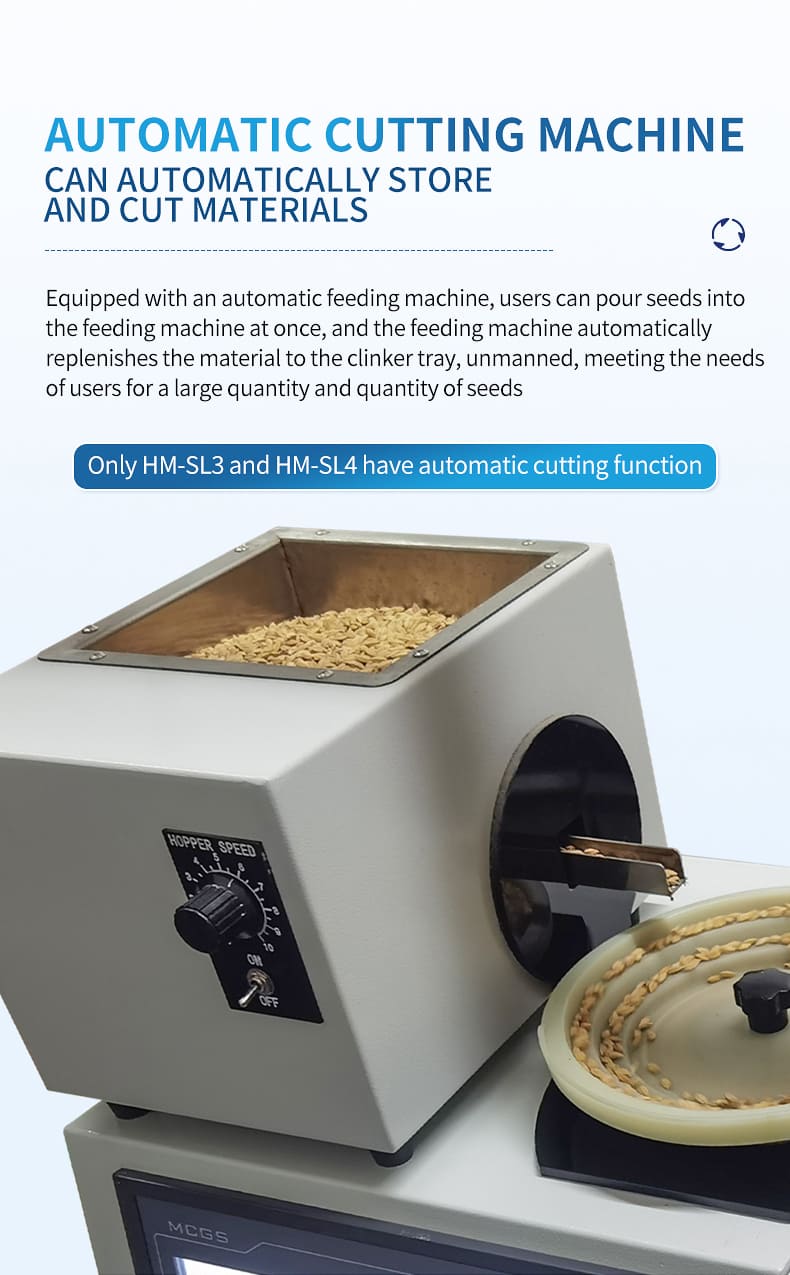

Compared with traditional counting machines, the Hengmei multifunctional counting machine is equipped with an automatic feeding machine, which can automatically store and discharge materials. The user pours the seeds into the feeding machine at once, and the feeding machine automatically replenishes the clinker tray without anyone on duty, meeting the user’s needs for a large quantity of seeds.

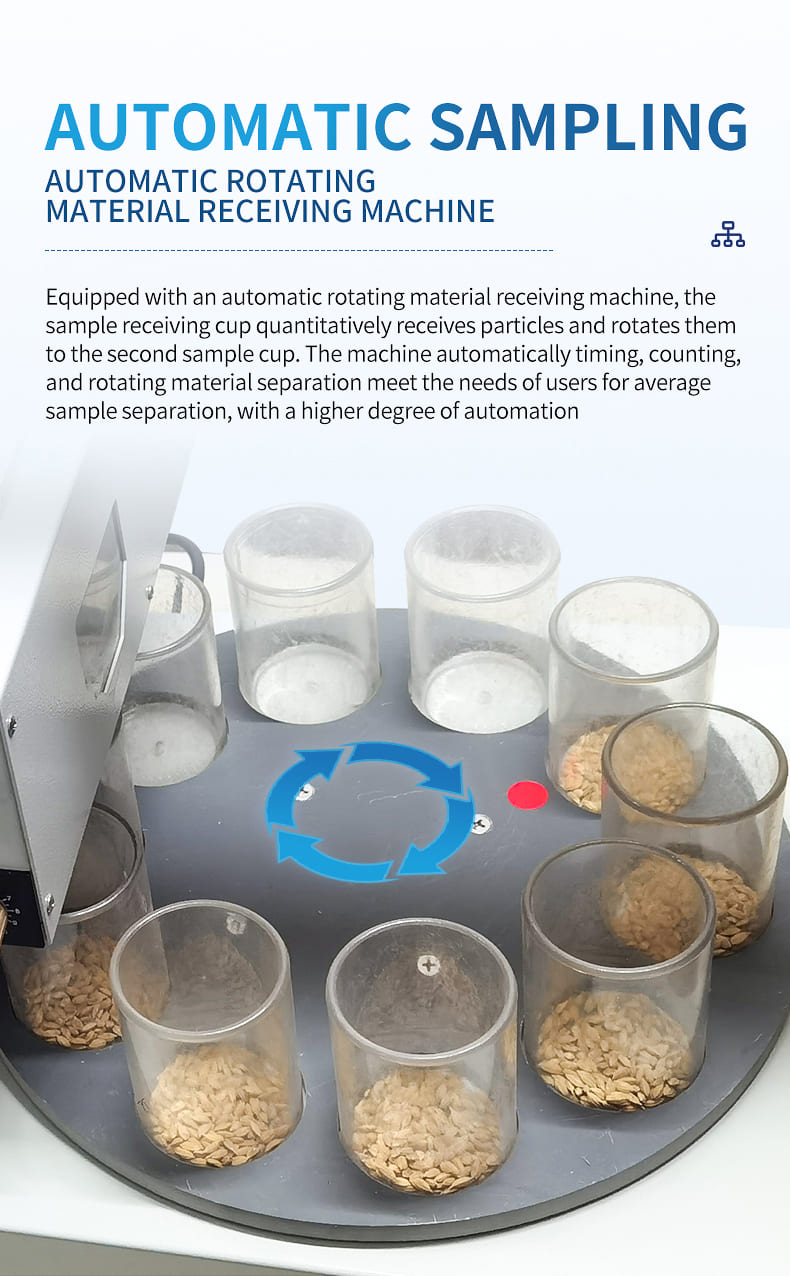

Equipped with an automatic rotating material receiving machine, the sample receiving cup quantitatively receives particles and rotates them to the second sample cup. It automatically timing, counting, and rotating for material separation, meeting the needs of users for average sample separation, with a higher degree of automation.

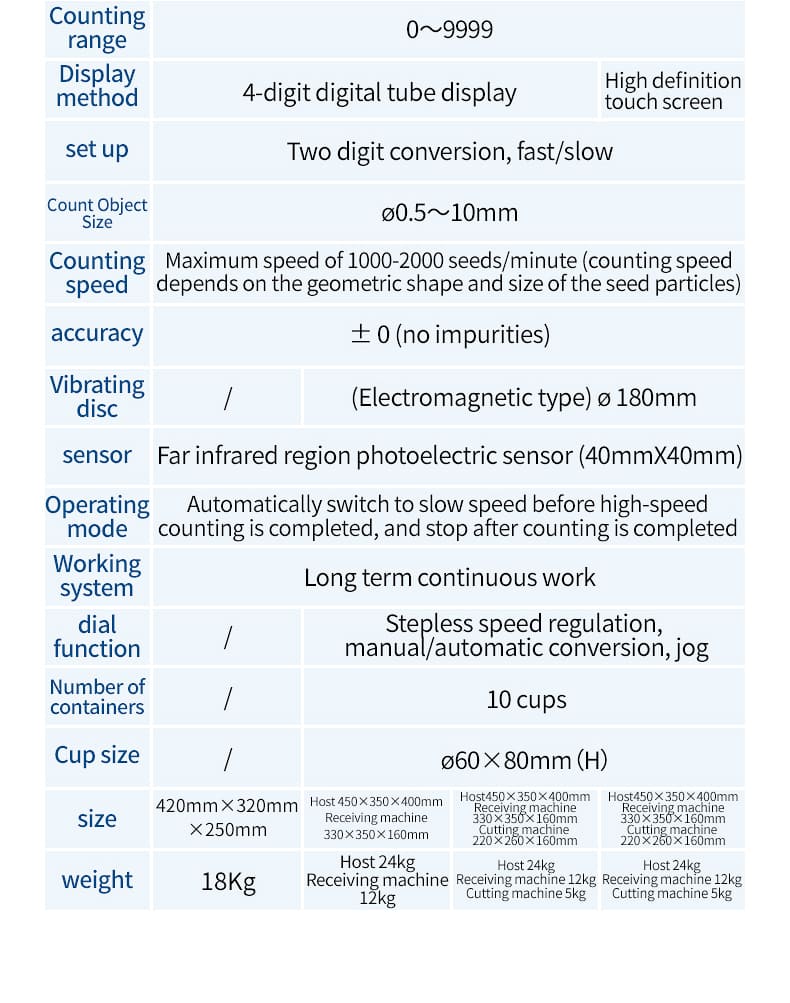

Technical indicators

1. Power supply: AC/220V 50Hz

Export specifications: AC100V, 110V, 200V, 240V, 380V, 440V, 50/60Hz

2. Count range: 0-9999

3. Display: high-definition touch screen

4. Settings: Two digit conversion, fast/slow

5. Count object size:? 0.5-10mm

6. Vibration disk: (electromagnetic type)? 180mm

7. Counting speed: * High speed 1000-2000 particles/minute (counting speed depends on the geometric shape and size of the seed particles)

8. Accuracy: ± 0 (no impurities)

9. Operation mode: Automatically switches to slow speed before high-speed counting is completed, and stops after counting is completed

10. Sensor: Far infrared photoelectric sensor size 40 x 40mm

11. Size and weight:

Host 450 (W) x 350 (D) x 400 (H), 24kg

Receiving machine 330 (W) x 350 (D) x 160 (H), 12kg

Cutting machine 220 (W) x 260 (D) x 160 (H), 5kg

12. Rotary table function: stepless speed regulation, manual/automatic switching, jog

13. Number of containers: 10 cups

14. Cup size:? 60 x 80mm (H)

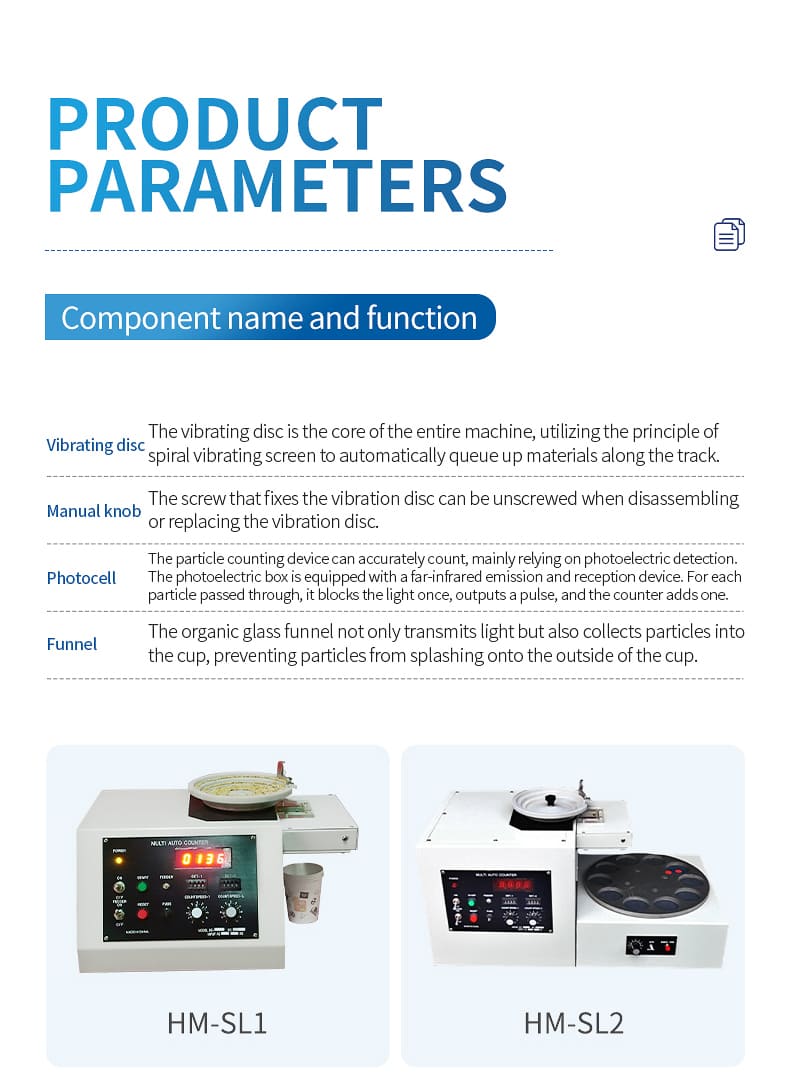

Component Name and Function

(1) Vibration disk: The vibration disk is the core of the entire machine, using the principle of spiral vibration screen to automatically queue up materials along the track.

(2) Manual knob: The screw that fixes the vibration disc. When disassembling or replacing the vibration disc, simply unscrew the screw.

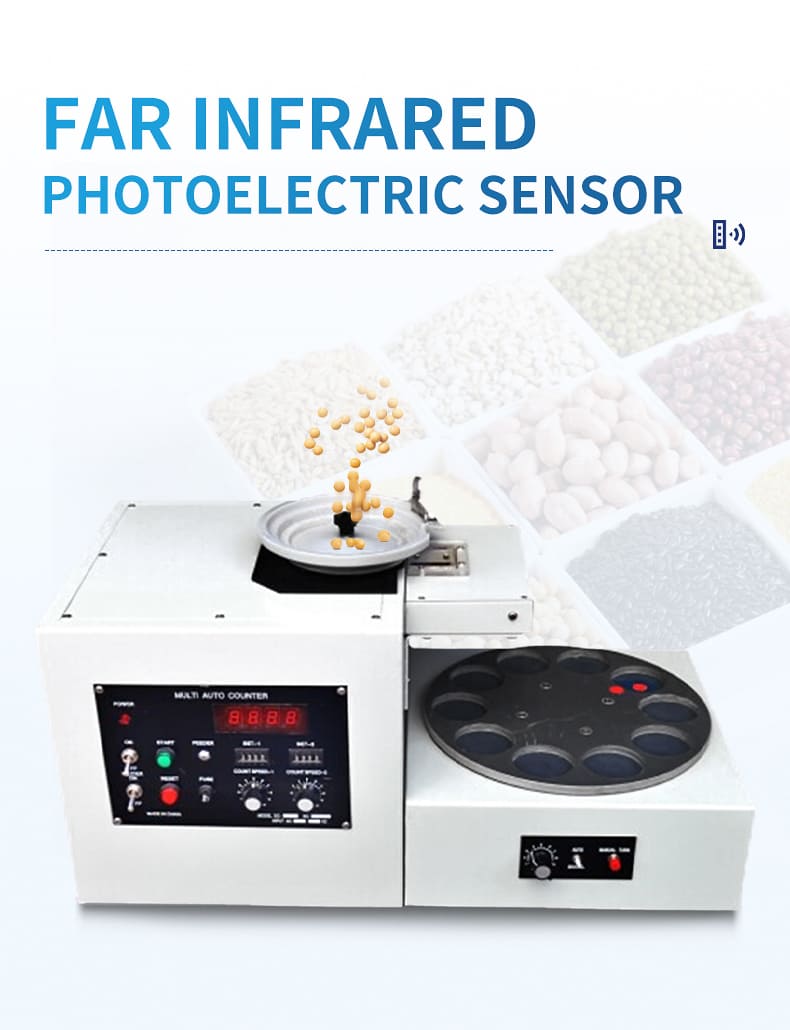

(3) Photoelectric box: The particle counter can accurately count, mainly relying on photoelectric detection. The photoelectric box is equipped with far-infrared emission and reception devices. For each particle passed through, it blocks the light once, outputs a pulse, and the counter adds one.

(4) Funnel: Organic glass funnels not only transmit light but also collect particles into the cup, preventing particles from splashing onto the outside of the cup.
