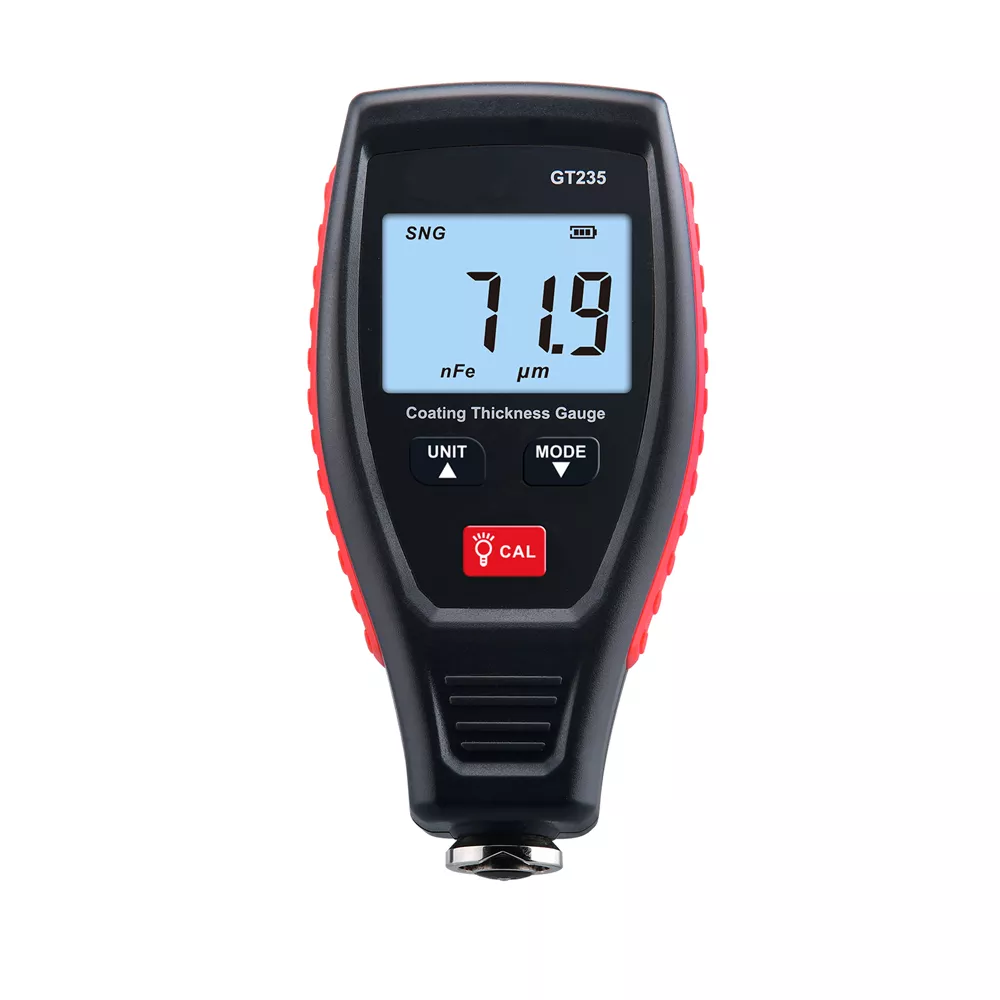

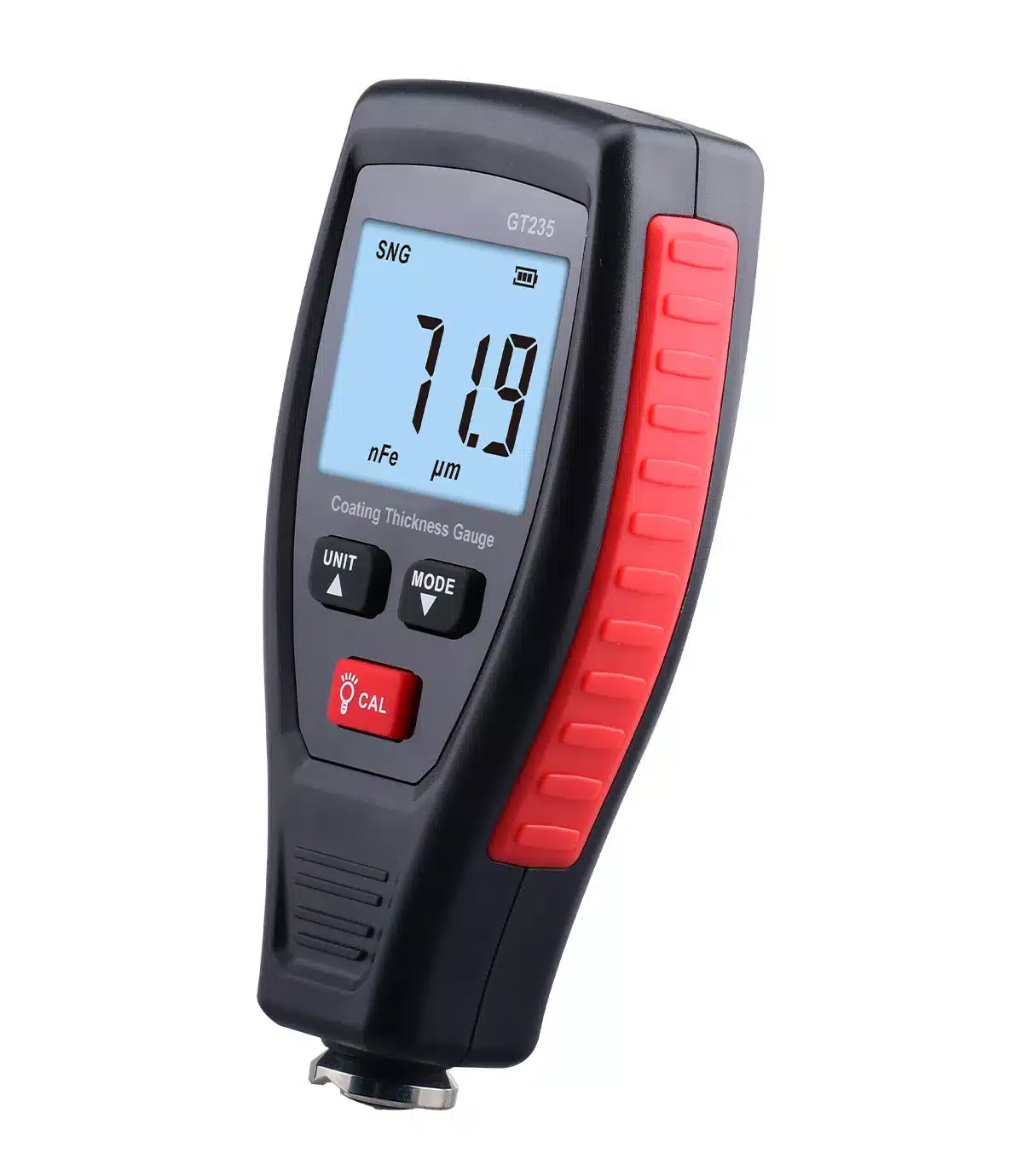

GT235 Coating Thickness Gauge
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
This device can make a quick and effective measure-ment of the thickness of the non- metallic coating on the non-magnetic metal substrate and the thickness of the non-magnetic coating of the magnetic metal substrate, it can also automatically identify the magnetic metal substrate and non-magnetic metal substrate. It is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.
Features
1.Measuring the thickness of non-magnetic coating on the magnetic metal substrate.
2.Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
3.Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
4.Single measurement, continuous measurement and differential measurement available.
5.Zero-point calibration, Offset Calibration and basic calibration available.
6.Metric and imperial units of measurement optional.
7.LCD backlight.
8. Automatic shutdown.
Specification
| GT235 | ||
| Measurement range | 0 ~ 1800μm/70.8mil/1.8mm | |
| Resolution | (0.1μm(<100μm),1μm(≥100μm))/0.1mil/0.001mm | |
| Measurement error | ≤150µm ±5µm | |
| >150µm ±(3%H+1µm) | ||
| Minimum diameter of magnetic metal substrate | 12mm | |
| Minimum thickness of magnetic metal substrate | 0.5mm | |
| Minimum radius of curvature for magnetic convex substrate | 2mm | |
| Minimum radius of curvature for magnetic concave substrate | 11mm | |
| Minimum diameter of non-magnetic metal substrate | 50mm | |
| Minimum thickness of non-magnetic metal substrate | 0.5mm | |
| Operating temperature | -20~+40℃ | |
| Operating humidity | 10 95%RH | |
| Weight | 105.03g | |
| Size | 62*27*121.5mm | |
| battery | 1.5V AAA alkaline battery*2 | |
Application
