GW Pipe / Steel Bar Bending Machine 1.5KW ISO 6935-2 Standard
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | GW |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Steel Bar Bending Machine | Standard: | ISO 6935-2 |
|---|---|---|---|
| Pipe Diameter: | φ25 – φ50 | Bending Angle: | 0 – 180 Degree |
| Reverse Bending Angle: | 0 – 90 Degree | Rotating Speed: | =<3.7r/min |
| High Light: |
GW Steel Bar Bending Machine, 1.5KW Steel Bar Bending Machine, ISO 6935-2 Pipe Bending Testing Machine |
||

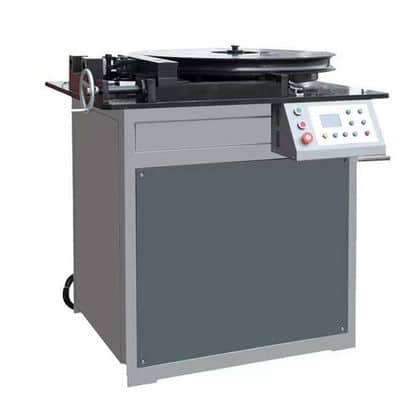

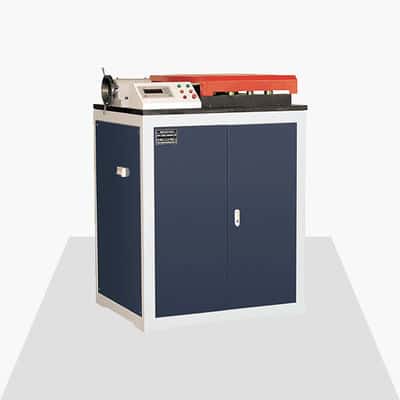

GW Steel Bar/ Pipe Bending Testing Machine
Application:
It is special designed for cold bending test and flat bending test for steel bar or pipe. The main technical parameters of this machinery conformed to GB/T 1499.2-2018, and YB/T 5126-2003. This machine is one idea testing equipment to the bending property and reverse bending property for steel factory and construction institution. The steel bar bending testing machine has characters including compact structure, easy operation, visual display of bending angel, easily repairing, operation stability, safety, low noise and etc.
Standard:
GB/T 1499.2-2018 Steel for the reinforcement of concrete – Part 2: Hot rolled ribbed bars
ISO 6935-2: 2015 Steel for the reinforcement of concrete – Part 2: Ribbed bars, NEQ
YB/T 5126-2003 Steel bars for reinforcement of concrete – Bend and rebend tests
ISO 10065:1990 Steel bars for reinforcement of concrete — Bend and rebend tests
GB/T 232 Metallic materials – Bend test (ISO 7438:2005)
Parameters:
| Model | GW-40B | GW-50 |
| Diameter range of bending steel bar or pipe(mm) | Randomized φ25 – φ40
(Optional form φ6 to φ22) |
φ25 – φ50 |
| Bending angle of steel bar/pipe | 0 – 180 degree random setting | 5 – 180 degree random setting |
| Reverse bending angle of steel bar | 0 – 90 degree random setting | / |
| Rotating speed of working plate | =<3.7r/min | =<2r/min |
| Motor power(KW) | 1.5 | 1.5 |
| Overall dimension(mm) | 1050*750*1200 | 1000*1000*1135 |
| Total weight(kg) | 750 | 1500 |
Features:
1. It can do bending and reverse bending
2. With compact structure, easy operation
3. With visual display of bending angle.
