Hach 9525sc DCCP System with Specific Conductivity (SC), Cation Conductivity (CC), and Calculated pH, with Regenerative Cooler
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Simple to Integrate. Simple to Operate.

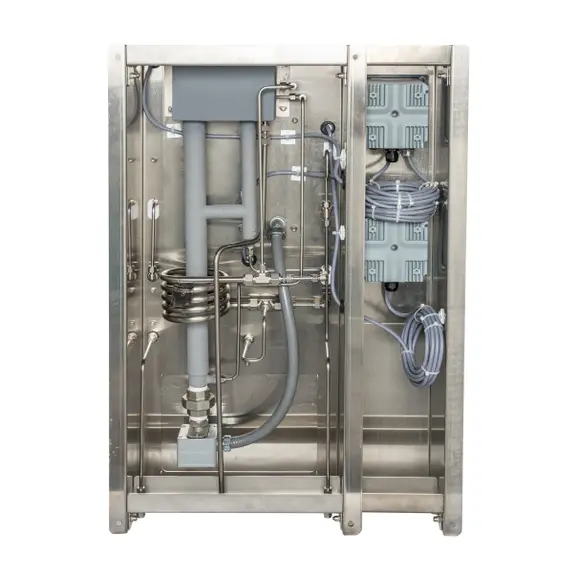

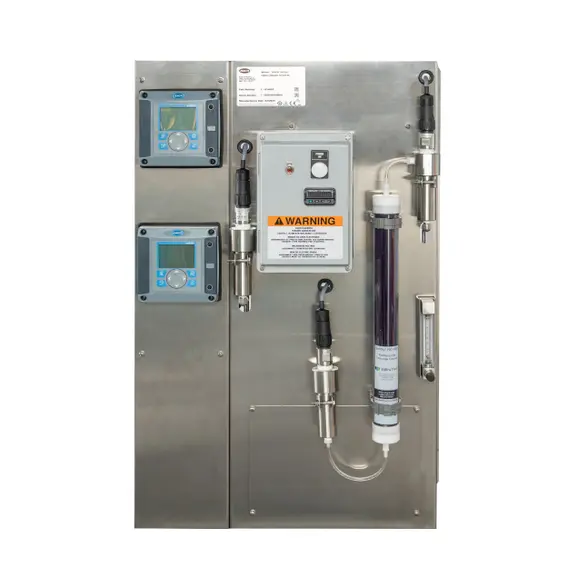

Hach’s most featured version of our degassed cation conductivity panel (DCCP) system measures specific conductivity (SC), cation conductivity (CC), and calculated pH in addition to degassed cation conductivity (DCC) after CO₂ removal from the sample stream. Also included is a built-in regenerative cooler to ensure consistent and effective sampling temperature. This comprehensive solution saves you time on design, installation, training, maintenance, operation, and plant start-up, while helping protect your most critical assets and equipment.
– Designed with operator safety in mind
– Compact, wall-mounted design
– Operates in accordance with ASTM D4519
Benefits
Reliable measurements
Hach’s newly redesigned Degassed Cation Conductivity Analyzer efficiently removes CO₂ from the sample to deliver fast reliable results that save you critical time and effort.
Space-Saving Design
Compact, wall mounted footprint to allow for easy integration into existing or new SWAS systems.
Easy and Safe Handling
The new 9525sc requires no additional cooling water supply but instead allows for a regenerative cooling option and condenses the steam to allow for safe discharge via a vent drain.
Specifications
Technical Attributes
| Accuracy | < 2% |
| Ambient Temperature | 2 – 50 °C (36 – 122 °F) |
| Cell Constant k | 0.01 cm-1 |
| Enclosure Rating | IP66 / NEMA 4X |
| Flow | 100 – 150 cc/min (mL/min); 6 – 9 L/h |
| Includes 9523sc | Yes |
| Measuring Range Conductivity | 0.01 – 200 µS/cm |
| Operating Temperature Range | Recommended operating temperature: 23 – 27 °C (75 – 80 °F) |
| Parameter | Degassed Cation Conductivity, Specific Conductivity, Cation Conductivity, Calculated pH |
| Power Requirements (Hz) | 60 Hz |
| Power Requirements (Voltage) | 110 – 120 VAC |
| Regenerative Cooling | Yes |
| Sample Cooler Type | DTC-DCCP |
| Storage Conditions | 0 – 50 °C (32 – 120 °F) 0 – 85 % relative humidity, non-condensing |
| Warranty | 12 months |
| Weight | 50 kg (110 lbs) |
| What’s included? | Kit includes (1 ea.): 9525.99.0010 9525sc Degas System, 9523.99.09P2 Hach 9523sc Specific and Cationic Conductivity Analyzer, and pH Calculator, with 5x 4-20 mA Outputs, 100-240 V AC, 9525.99.7040 Degas System Extension Panel Kit |
