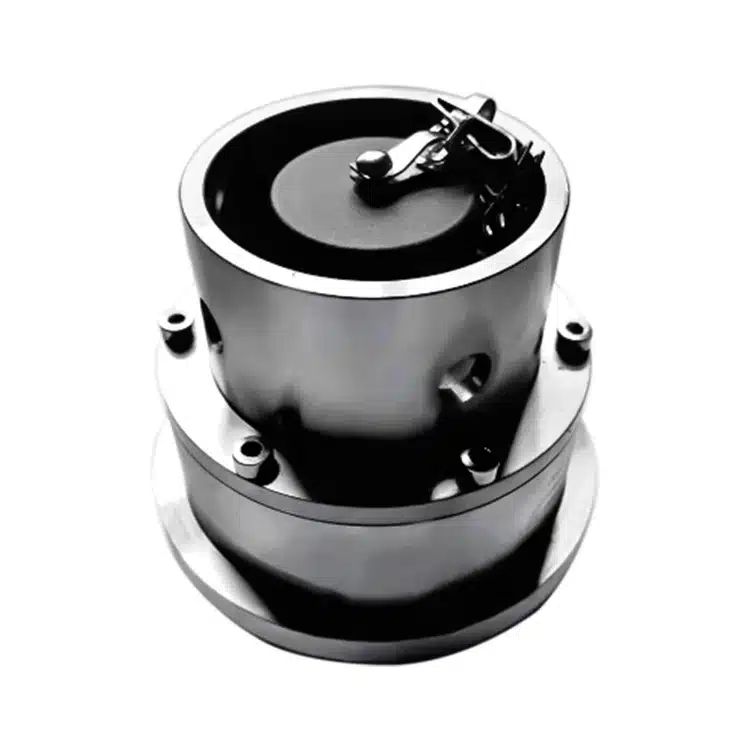

Hammer Union Pressure Sensor
1,520.00৳
Model:P1502
Compatible with the Weco hammer union FIG1502.
Applications:
√Piston Pump Equipment
√Acidification Process
√Fracturing/cementing Trucks
√Choke manifold
√Oil and gas drilling
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
The P1502 hammer union pressure sensor, compatible with Weco® hammer union FIG1502, adheres to American ASTM and AISI standards. Utilizing a fully welded integrated structure improves airtightness during joint processes, reducing the risk of medium leakage. Constructed with stainless steel and 17-4PH alloy, and featuring a built-in anti-interference amplifier circuit, it delivers reliable signal output in complex conditions. With a spherical seal for easy installation, it suits various exploration and mining conditions, offering enhanced safety in the petroleum industry, oil field stimulation, petrochemical, shipbuilding, offshore engineering, and aerospace industries.
Product Features
- 0.5%F.S accuracy and ±0.2%FS/year long-term stability for precise pressure measurements.
- Fast dynamic response and strong resistance to fatigue and eccentric load, ensuring reliable operation.
- Constructed with a sturdy fully welded integrated structure, providing excellent sealing for enhanced safety.
- Anti-corrosion, anti-vibration, and anti-impact properties, suitable for demanding conditions in exploration, mining, and petroleum industries.
- Anti-interference circuit for reliable signal output in complex working conditions
Product Specification
| Inlet pressure interface | 2 Inch 51mm tube, Weco® hammer Union FIG1502 |
| Measuring range | 0~5000Psi, 0~6000Psi,0~10000Psi,0~15000Psi,0~20000Psi optional |
| Accuracy | 0.5%FS or by customized |
| Safe overload pressure | 200%F.S or customized |
| Burst overload pressure | ≤400MPa or customized |
| Output | 4~20mA, 0~5V optional |
| Power supply | 10~36VDC |
| Operating temperature | -40℃~125℃ |
| Long-term stability | ±0.2%FS/year |
| Response time | ≤1 millisecond |
| Wet part material | 17-4PH |
| Insulation resistance | ≥1000MΩ/500VDC |
| Electrical connections | 4/6 pin aviation connector |
| IP rating | IP67 |
Product Dimensions
