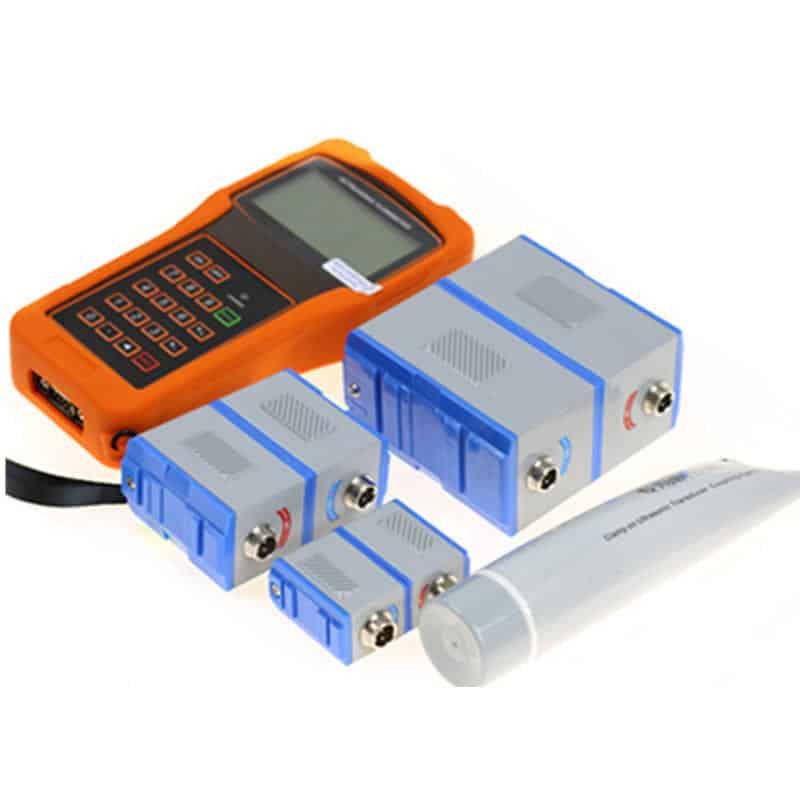

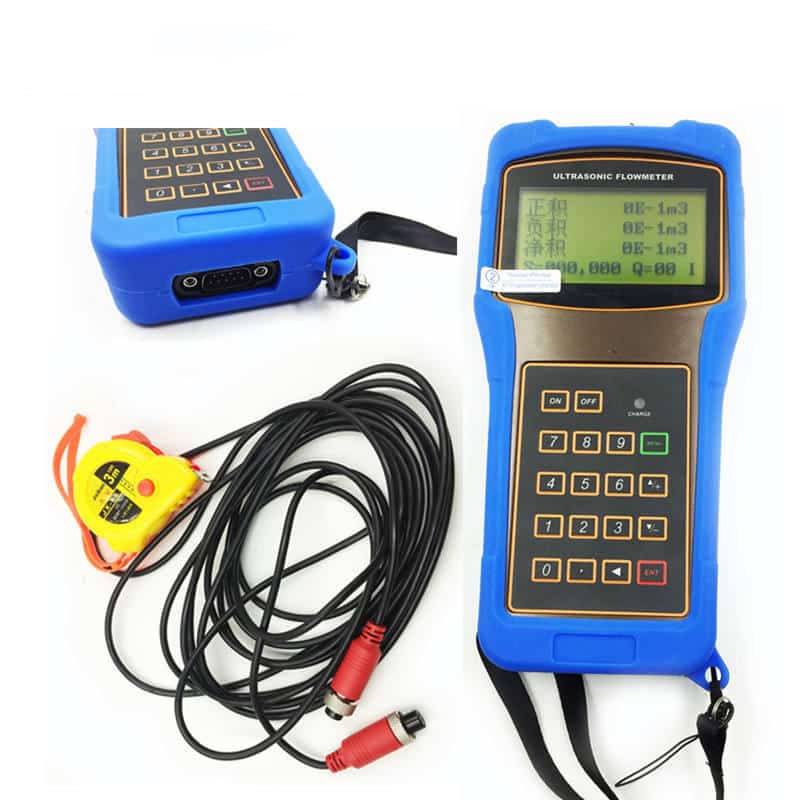

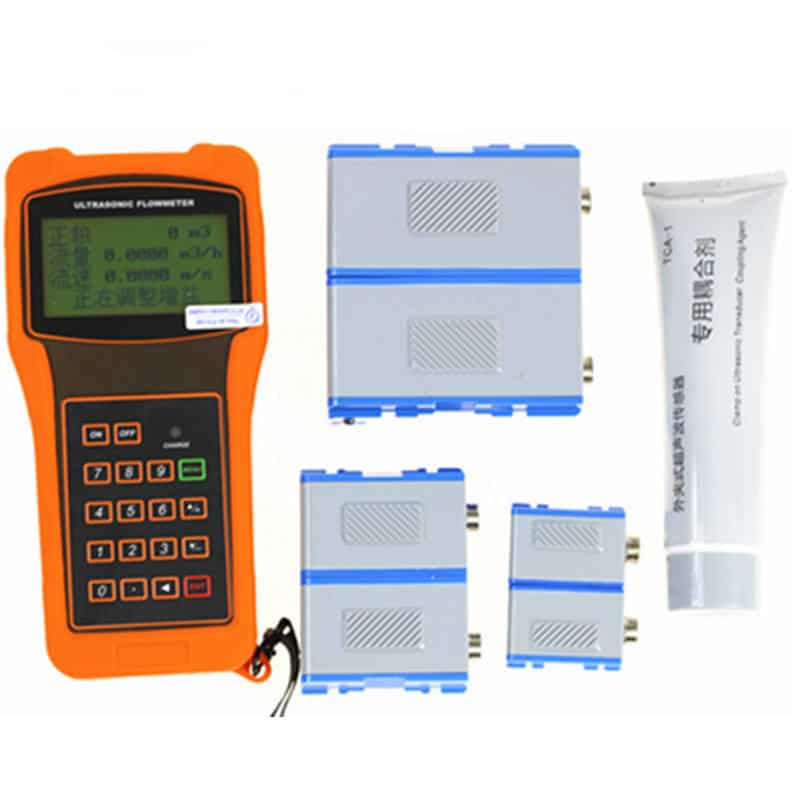

Handheld Ultrasonic Flowmeter

HUF200 Series Ultrasonic Flowmeter

Model

HUF200

Principle

Ultrasonic time difference principle

Precision

±1%

Display

4×8 Chinese or 4×16 Western dot matrix backlit LCD display, supporting Chinese, English, Italian and French languages

Output

1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)

Data interface

Isolating the RS-232 application interface, the flow meter can be upgraded through a PC

Pipe

Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining

Pipe inner diameter

15-6000mm

Straight pipe

The sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter)

Medium

Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc.

Fluid temperature

-30~+160°C

Turbidity

1000pmm bubble content is small

Flow rate

0～±10m/s

Working environment

Host: -20 ~ +60 ° C; flow sensor: -30 ~ +160 ° C

Host: 85% RH; sensor protection grade: IP67

Power supply

3-cell rechargeable Ni-MH battery with 1.2V capacity of 2000mAH, which can work continuously for more than 12 hours every time.

Power consumption

1W

Housing material

Flame retardant ABS

Host weight

390g

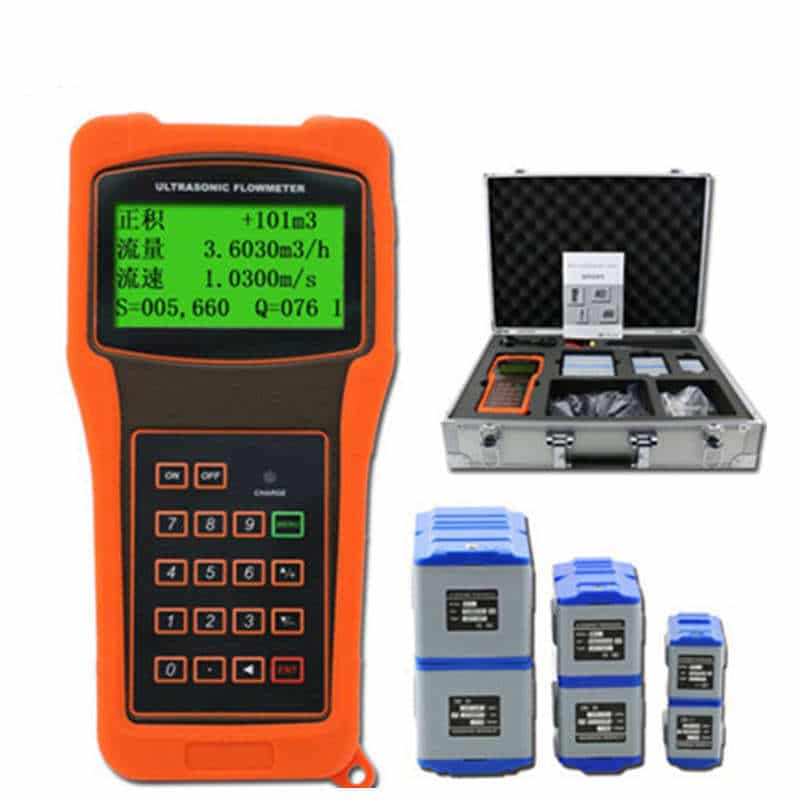

Size and accessories

Bracket sensor

800×280×115mm

470×350×170mm
