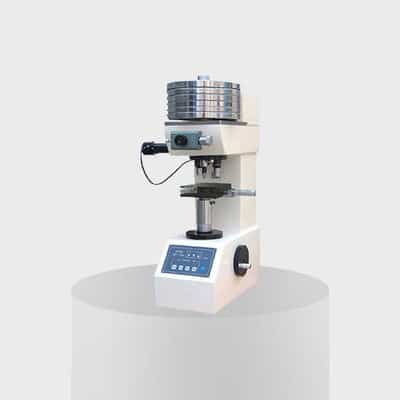

HBV-30A Brinell / Vickers Hardness Testing Machine 100mm Throat Depth
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | HBV-30A |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Hardness Tester | Standard: | ASTM E92 And ASTM E10 |
|---|---|---|---|
| Test Force: | 9.807, 24.52, 49.03, 98.07, 196.1, 294.2N | Measuring Range: | 8-650HBW, 10-3000HV |
| Depth Of Throat: | 100mm | Max Sample Height: | 130mm |
| High Light: |
Vickers Hardness Testing Machine, Brinell Hardness Machine, Brinell Hardness Testing Machine |
||
Model HBV-30A Brinell & Vickers Hardness Tester With Testing Range 8-650HBW And 10-3000HV
Model Hbv-30a Brinell & Vickers Hardness Tester
Application:
It is used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts and the Brinell hardness of soft metals and small parts. This hardness tester is combined Brinell and Vickers hardness testing together. So this two function hardness tester is much more conveniet for the lab testing.
Standard:
ASTM E92 -17 Standard Test Methods for Vickers Hardness and Knoop Hardness of Metallic Materials
ISO 6507-2:2018 Metallic materials – Vickers hardness test – Part 2: Verification and calibration of testing machines
GB/T 4340.2 – 2012 Metallic materials – Vickers hardness test – Part 2:Verification and calibration of testing machines
ISO 6506-2:2017 Metallic materials – Brinell hardness test – Part 2: Verification and calibration of testing machines
ASTM E10-2018 Standard Test Methods for Brinell Hardness of Metallic Materials
GB/T 231.2-2012 Metallic materials – Brinell hardness test – Part 2: Verification and calibration of testing machines
Parameters:
| Item | Name | Details |
| 1 | Test force | 9.807, 24.52, 49.03, 98.07, 196.1, 294.2N
(1, 2.5, 5, 10, 20, 30kgf) |
| 2 | Measuring range | 8-650HBW, 10-3000HV |
| 3 | Depth of throat | 100mm |
| 4 | Max. height of test piece | 130mm |
| 5 | Magnifications of the measuring system | 500X, 125X |
| 6 | Min. scale value of the optical micrometer | 0.25um |
| 7 | Power supply | 220 AC or 110V AC, 50 or 60Hz |
| 8 | Dimensions | 438 x 382 x 708mm |
| 9 | Weight | 88kg |
Features:
1. Precision conforms to GB/T 4340.2, GB/T 231.2, ISO6506-2, ISO6507-2, ASTM E92 and ASTM E10
2. Automatic testing process, no human operating error
Standard accessories:
Coordinate anvil: 1 pc.
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ1, Φ2mm, 1 pc. each
Diamond pyramid penetrator: 1 pc.
Brinell standardized block: 2 pcs.
Vickers standardized block: 2 pcs.
Electronic calculator: 1 pc.
