High Temperature Pressure Sensors
1,520.00৳
Model:P20T
-10℃~125℃(A type) or -60℃~200℃ (B type)
Applications:
√Automatic Testing Systems
√Petrochemical Industry
√Pump Station and Water Treatment Systems
√High Temp Gas Pressure Measurement
√Automatic Detection Systems
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description

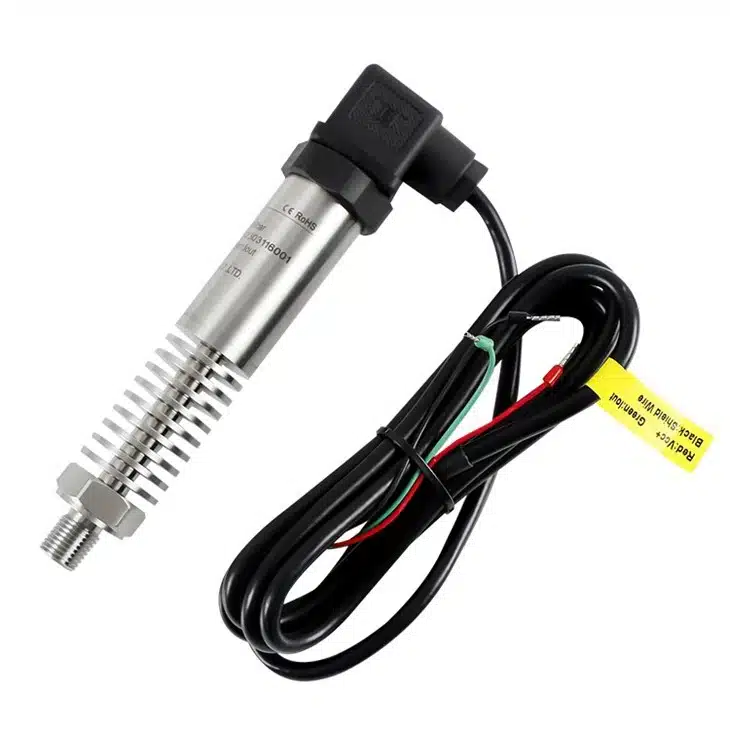

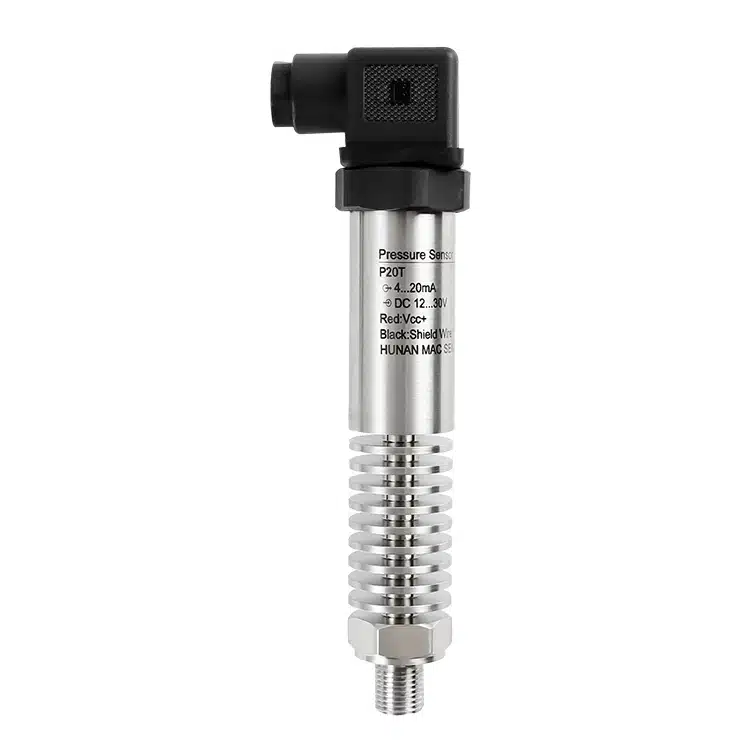

The P20T high-temperature transmitter, ideal for media temperatures up to 200°C, utilizes a piezo-resistive design. The pressure on the diaphragm is transmitted to an imported silicon or sapphire sensing die through a radiating fin. This innovative fin reduces high media temperatures without requiring additional cooling devices, optimizing the performance advantages of piezo-resistive pressure sensors. The fully welded construction, with an IP65 protection rating and strong anti-corrosive capabilities, makes it suitable for diverse high-temperature media pressure measurements, eliminating the need for extra cooling mechanisms.
Product Features
- High accuracy ±0.5%F.S.
- Adaptability to diverse environments with a wide working temperature scope from -60℃~200℃
- Consistent accuracy across temperature variations through advanced digital compensation.
- Exceptional resistance against impact, overload, shock, and erosion for lasting durability.
- Enhanced performance with highly-efficient lighting absorption and strong resistance to RFI & EMI
Product Specification
| Pressure Range | -1-0-1 Bar…..2000 Bar Optional | ||||
| Overload | 200% F.S. | ||||
| Burst Pressure | 400% F.S. | ||||
| Accuracy | ≤ ±1%F.S,≤ ±0.5%F.S | ||||
| Long-term Stability | Standard: 0.3%F.S±0.05% | ||||
| Medium Working
Temperature |
-10℃-125℃ (A type) OR -60℃~200℃ (B type) | ||||
| Cooling device | With cooling device for max 125 ℃; With cooling device for max 200 ℃ optional | ||||
| Temperature Compensation | 0-85 degree C (A type) or 0℃~100℃(B type) | ||||
| Electrical Wire | 2 Wires | 3/4 Wires | |||
| Output | 4~20mA | 0~10mA | 0~5V | 1~5V | 0.5~4.5V Ratiometric |
| Power Supply | 12~36 V DC | 12~36V DC | 12~36 V DC | 12~36 V DC | 5Vdc |
| Electrical connection | DIN Hirschmann Terminal Box4 Pins and IP65.
Directly 2 meters cable IP67 optional. |
||||
| Pressure
connect port |
G1/4”male, 1/4”NPT male, 1/2”NPT Female
G1/2”; G3/4”male optional. (by customized) |
||||
| Water Proof | IP65 | ||||
Product Dimensions
