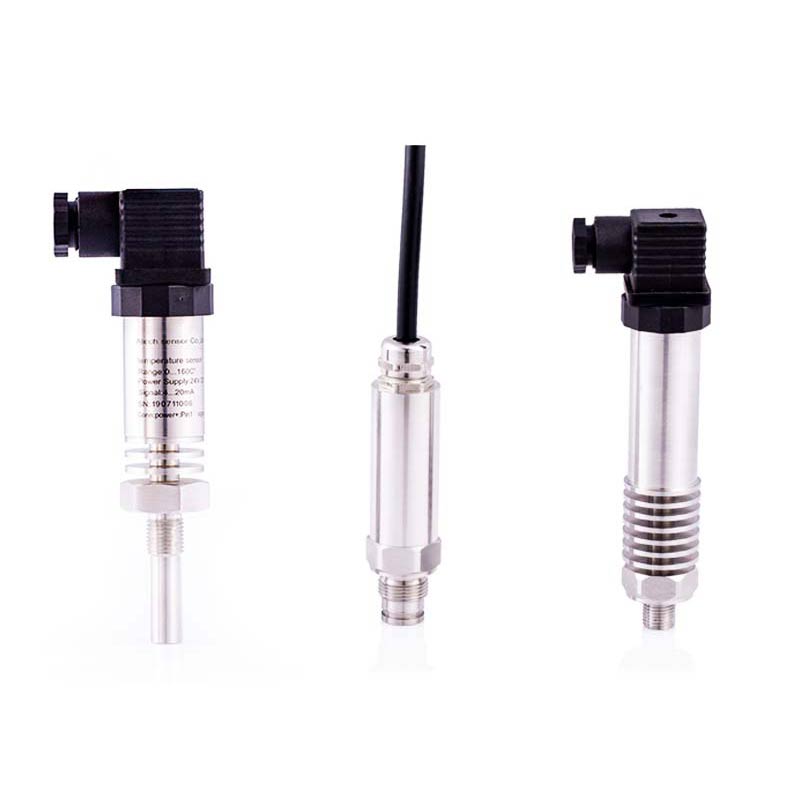

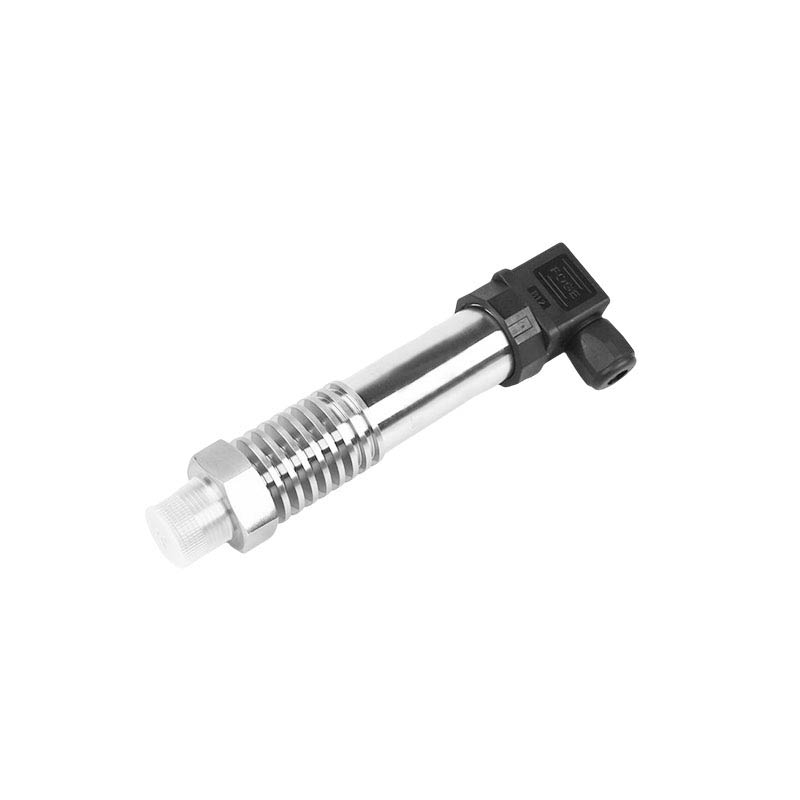

High Temperture Pressure Transmitter
1,520.00৳
● -50 °c~150°c Operating temperature
● Sputtering film pressure cell
● Fully weld
● CE certificate
● Intrinsic safety, explosive-proof
● High accuracy
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
Applications
● Construction machinery
● Automobile engine
● High temperature environment
● Industrial boiler pressure test
● Gas storage device
● Hydraulic pressure test
|
|
Product Features
● -50 °c~150°c Operating temperature
● Sputtering film pressure cell
● Fully weld
● CE certificate
● Intrinsic safety, explosive-proof
● High accuracy
Product Specification
|
pressure medium |
gas liquid compatible stainless steel |
|
pressure ranges |
0~1…2000bar |
|
overload pressure |
200%FS |
|
output signal |
4~20mA, 0~20mA, 0~10mA ,0~5V, 0~10V, 1~5V |
|
accuracy |
0.1%FS, 0.25%FS, 0.5%FS |
|
load resistance |
RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
|
long term stability |
0.25%FS/year |
|
supply voltage |
12~30V |
|
compensated temperature range |
-20~120°c |
|
operating temperature range |
–50~+150°c (typical), –50~+230°c |
|
storage temperature range |
–50~+170°c |
|
temperature coefficient of zero |
0.3%FS/10°c |
|
temperature coefficient of span |
0.3%FS/10°c |
|
insulation resistance |
>100MΩ@ 50VDC |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
material of wetted part |
1Cr18Ni9Ti |
|
Elect strength |
500V@60 second |
|
material of housing |
1Cr18Ni9Ti |
|
weight |
180g |
Product Dimensions
