Industrial Level Pipeline Video Detector IP68 1024*768 Resolution 45mm
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Model Number: | HYKJ-180 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Pipeline Detector | Resolution: | 1024*768 |
|---|---|---|---|
| Material: | Stainless Steel | IP Grade: | IP68 |
| Angel: | 360 Degree Rotate | Wire Coil: | 60m / 120m |
| High Light: |
IP68 Pipeline Video Detector, 1024*768 Pipeline Video Detector, 45mm Pipeline Video Detector |
||
Industrial Level Pipeline Video Detector With High Resolution Color Video System
Application:
HYKJ-180 serious industrial level pipe detector is a new kind of push rod pipe interior video detection equipment, it has the advantages of industrial level high resolution, color video system, portable, recording and management of intelligent video, also equipped with high strength, flexible push rod.
For the video detection, analysis and management to the different kind of pipe, hiding space, inflammable, explosive, radiation place on the site, this product is very suitable to work in the dark space such as pipe and tank, it can easily detect the abnormal conditions like crack, corrosion, weld joint and block, and it has been widely used in the domestic and overseas such like municipal pipeline, gas oil, electric power, telecommunications, field investigation, disaster search, rescue and other detection fields.
Parameters:
| Pipeline Video Detector | |
| Camera Size | 45mm, 360 degree rotate |
| Wire Coil | 60m/120m,diameter is 9mm(can be customized) |
| Screen Size | 10 inches LCD display |
| Control Box | HD DVR video storage control box |
| Lithium Battery | 10000MAH 18650 Lithium Battery |
| Instrument Box | ABS industrial level plastic box |
| Coil

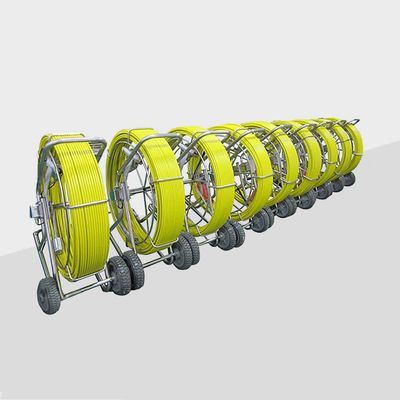

Fiberglass Push Rod Cable Cable Diameter:φ9.0mm Cable Length: 60m / 120m(can be customized) Stainless Steel Portable Cable Rack Cable Rack Size: Length 85x Width 44x Height 93 cm (120 m) |
|
| Panoramic camera
Camera Size:Φ45mm Sensor:1/3 inches HD CCD 700TVL Sapphire Lens Protects The Glass Waterproof Level:IP68 Angel:360 degree rotate, 180degree vertical High Brightness LED: light and focus adjustable Camera Removable:can connect different cable coil and hand extension rod |
|
| HD DVR Control Box Parameters | |
| 10 Inches Display Parameters | |
| Display Size | 10 Inches LCD |
| Screen Display Ratio | 4:3 |
| Resolution | 1024*768 |
| Languages | English, Chinese |
| Video Input: | AV1(1.0 Vp-p / 75Ω)；AV2 blue screen,no signal |
| Audio(Optional) | |
| Amplifier | |
| Power | 3W*2 |
| HD DVR | |
| Broad Cast Format | Video:Mpeg2 Mpeg4(Divx,AVI,Xvid), |
| Music:MP3, OGG, WMA | |
| Photo:JPEG/JPG, BMP | |
| Record Input(Optional) | |
| Video Input | CAM1,CAM2_PT,VIDEO Three Channels Composite Video Signal Input |
| Audio Output(Optional) | Stereo Audio Signal Output (there are built-in audio and external connection) |
| Video Output | Composite video signal output |
| TV System | NTSC, PAL, 480P, 576P, 720P, 1080i, 1080P/24MHz |
| SD Storage | 32G |
| Video Format | MPEG4 |
| Power Supply | |
| Adapter | 110~240VAC 50/60Hz；12.5 VDC /2000mA |
| Lithium Battery | 12V 8800mA/H |
| Overall Power Consumption | 19W(Max) |
| Lithium Battery Charging Time | 6-7hrs |
| Lithium Battery Working Time | 6hrs |
| Other Accessories | Charger: 1pc, Camera Bracket:1set, Instruction Book, USB, waterproof ring |
Picture:
