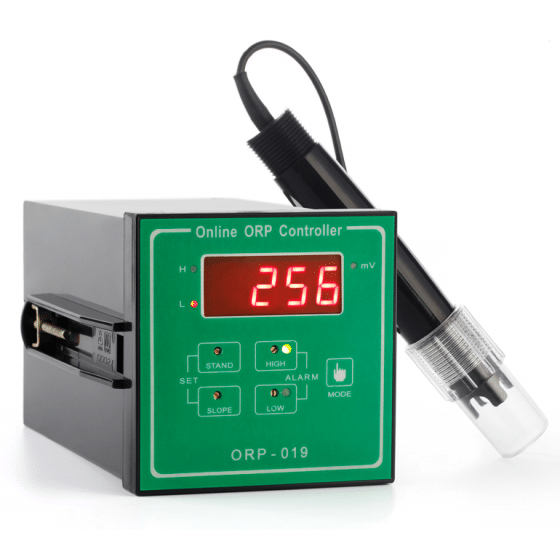

Industrial On-line ORP Controller
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Place of Origin: | Made in china |
|---|---|
| Brand Name: | meter2u |
| Model Number: | ORP-019 |
| Certification: | ISO9000 |
Product description: Water’s ORP Controllers are packaged in a 1/4 DIN panel mount controller box with dual SPDT Hi / Lo relays, manual set points and calibration potentiometers set into the front of the ORP controller panel. The ORP controllers feature an isolated 4-20 mA current output.
Main features: Using MCU control, easy to operate simple; panel-mounted structural features, ease of installation, operation and maintenance With isolated output (4 ~ 20) mA DC signal, the output upper and lower limits can be adjusted stepless output With automatic upper and lower limit alarm. Used in chemical, oil refining, metallurgy, pharmaceutical, power plants and environmental protection and other areas of water quality monitoring.
| Model | ORP-019 |
| Measuring range | 0~±1999mV |
| Accuracy | ±(0.1℅+2 digits)after calibration |
| Resolution | 1mV |
| Output current | 4-20Ma(max charge:50Ω) |
| Relay contact | two 220V5A |
| Environment | Temperature:0~50℃ Humidity<95℅ |
| Display | 4-digital LED |
| Input Impedance | 1012Ω |
| Power Supply | 110Vor220V±10℅50/60Hz±5℅ |
| Dimensions | 96mm×96mm×160mm |
| Weight | 950g |
